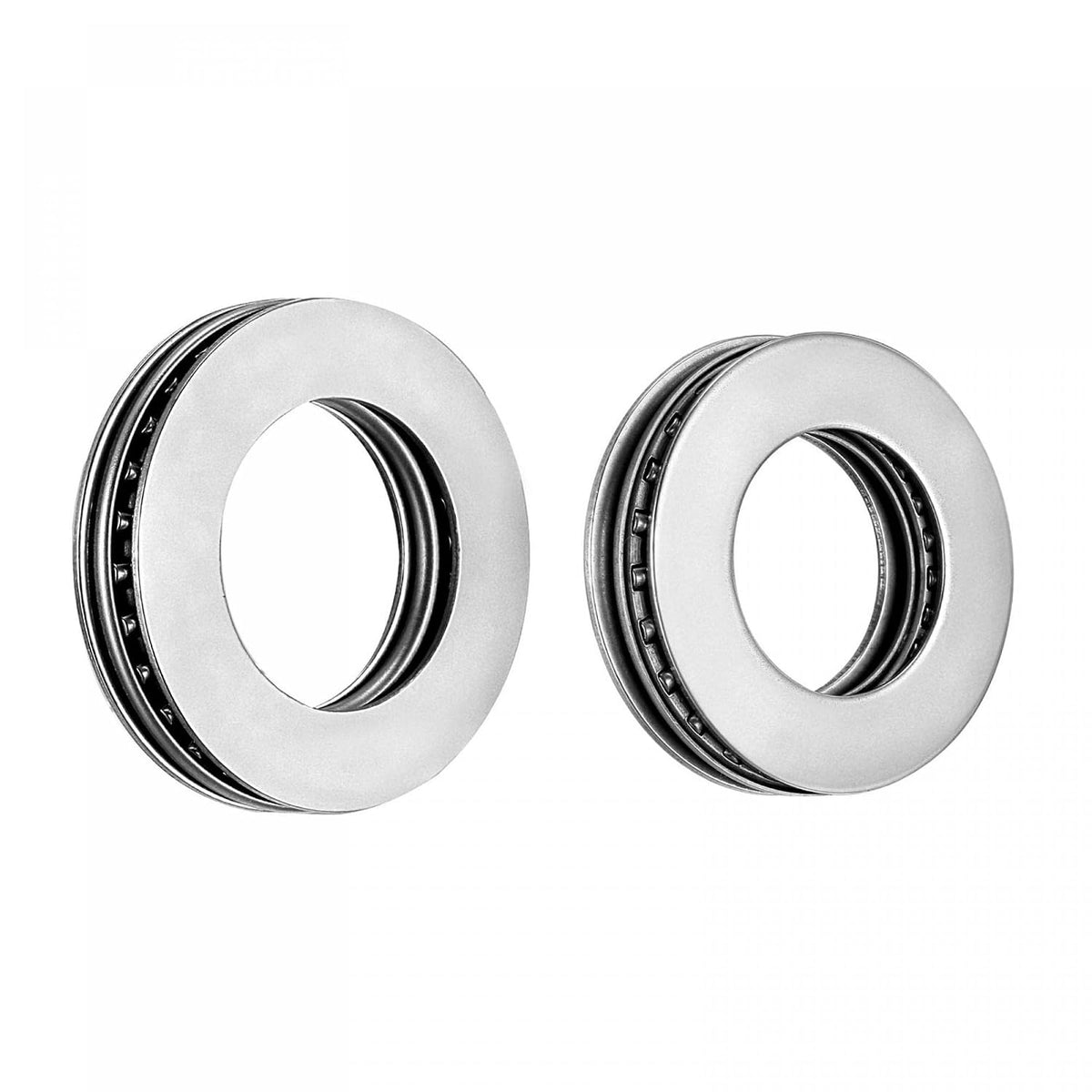

2Pcs AXK2035 AXK2542 Needle Roller Thrust Bearings with Bearing Washers

Key Features

• Size - AXK1528 (I.D.=15mm, O.D.=28mm, Thickness=2mm, Thickness with Washers 4mm); AXK2542 (I.D.=25mm, O.D.=42mm, Thickness=2mm, Thickness with Washers 4mm)
• Material - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
• Features - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
• Washers - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
• Package Content 1 x AXK2035, 1 x AXK2542, 4 x Washers(2 washers per bearing)

Product Description

Description

These Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.These bearings accommodate heavy peak loads due to the small diameter deviation of the rollers within one assembly.Thrust Bearings can be combined with washers in applications where adjacent components cannot serve as raceways.Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.Specification:Bearing No.: AXK1528, AXK2542Bearing Washer No.: AS1528, AS2542Needle Roller Material: Chromium Steel (GCr15)Cage Material: ST13 SteelBearing Washer Material: 65Mn Spring SteelBore Diameter: 15mm, 25mmOutside Diameter: 28mm, 42mmBearing Thickness: 2mm, 2mmWasher Thickness: 1mm, 1mmTotal Thickness: 4mm, 4mmDynamic Load Capacity (Cr): 11.2kN, 13.8kNStatic Load Capacity (Cor): 35.5kN, 57.8kNMaximum Rotational Speed (Oil): 11000rpm, 7000rpm

Package Content

1 x AXK15281 x AXK25424 x Washers
