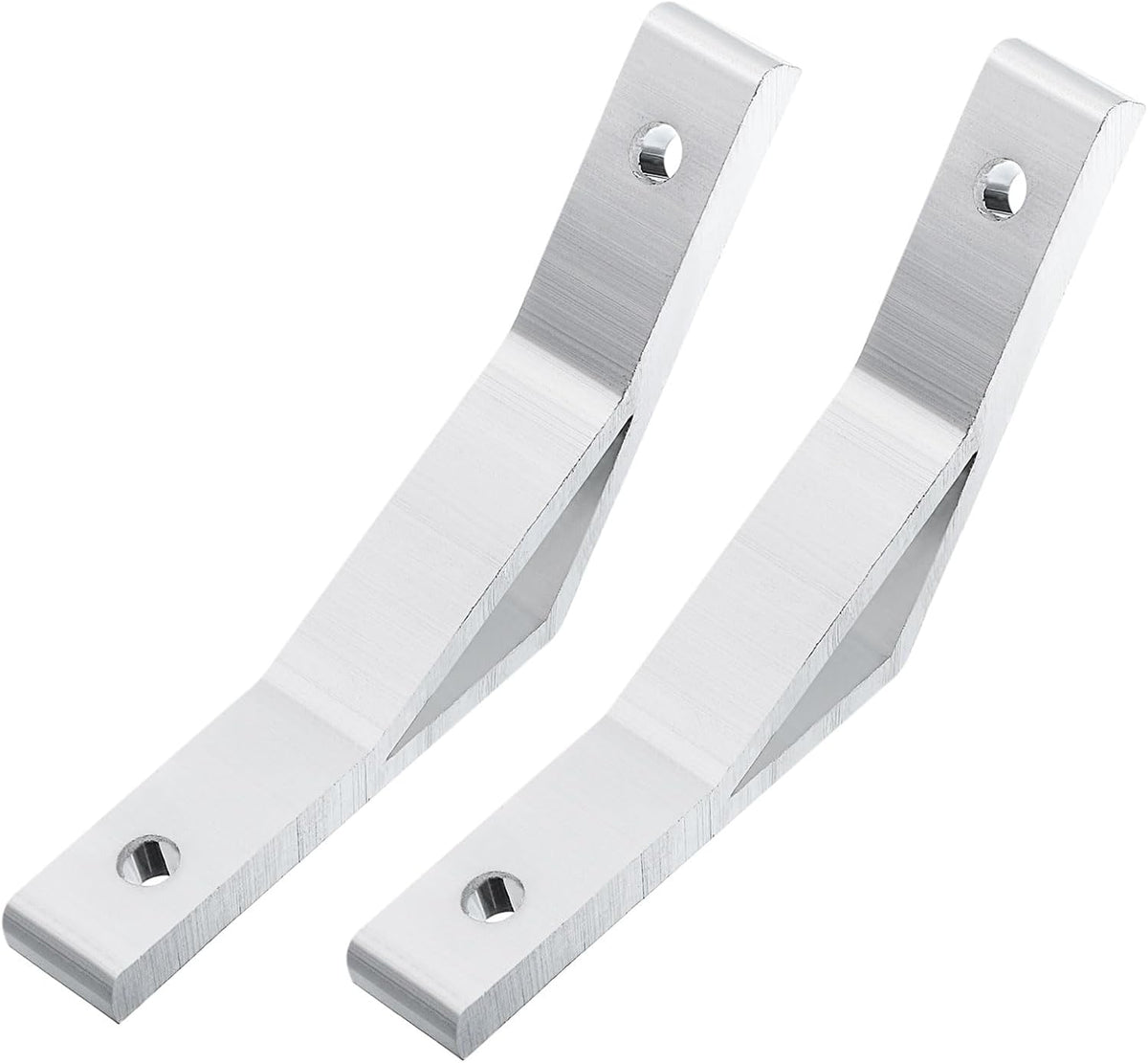

2Pcs 135 Degree Angle Aluminum Profile Corner Brackets, Corner Brace Joint Connectors for 2020 Series (Silver Tone)

Key Features

• [Size] - Dimension 15x28x60mm/ 0.59x1.1x2.36-inch(W*H*L); Mounting Hole Diameter 5.5mm / 0.22-inch; Thickness 6mm/ 0.24-inch
• [Material] - Made of 6063-T5 aluminum with an oxidation surface, this aluminum corner bracket is of good rust resistance, high hardness, and long service life.
• [Used for] - These corner brackets are used for the connection between two aluminum profiles and facilitate the connection of aluminum profiles with other components. When it is installed, it is inserted into the hole of two profiles and then tightened with set screws.
• [Application] - They are for the 2020 series of aluminum profiles and are suitable for 135-degree internal joint fixing. Widely used for building industrial aluminum frame structures, 3D printers, CNC routers, CNC laser cutters, robotics projects, woodworking machinery, fish tank, etc.
• [Not] - Easy to install, commonly used the corresponding series of T-bolts with flange nuts or T-nuts with hexagon socket bolts. Mounting fasteners are not included. Please allow a 1-2mm deviation due to manual measurement.

Product Description

Description：Made of 6063-T5 aluminum with an oxidation surface, this aluminum corner bracket is of good rust resistance, high hardness, and long service life.These corner brackets are used for the connection between two aluminum profiles and facilitate the connection of aluminum profiles with other components. When it is installed, it is inserted into the hole of two profiles and then tightened with set screws.They are for the 2020 series of aluminum profiles and are suitable for 135-degree internal joint fixing. Widely used for building industrial aluminum frame structures, 3D printers, CNC routers, CNC laser cutters, robotics projects, woodworking machinery, fish tank, etc.Easy to install, commonly used the corresponding series of T-bolts with flange nuts or T-nuts with hexagon socket bolts. Mounting fasteners are not included. Please allow 1-2mm deviation due to manual measurement.Specification:Color: SilverMaterial: 6063-T5 AluminumFinish: AnodizingDimension: 15x28x60mm/ 0.59x1.1x2.36-inch(W*H*L)Mounting Hole Diameter: 5.5mm / 0.22-inchThickness: 6mm/ 0.24-inch

Package Content

2 x Aluminum Corner Brackets
