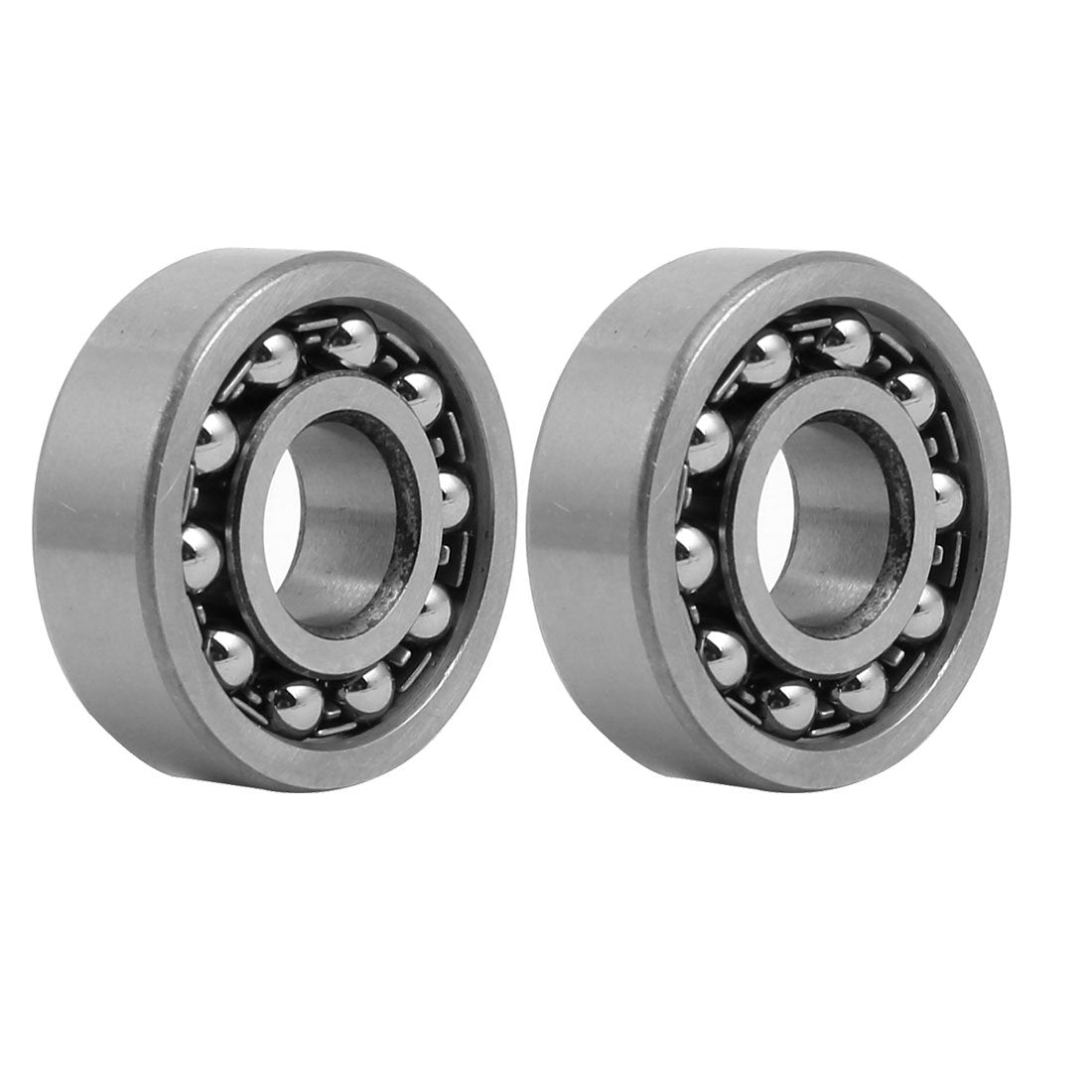

2pcs 12mm Inner Dia 32mm OD 10mm Thickness Self Aligning Ball Bearing 1201

Key Features

• Product Name Self Aligning Ball Bearing; Material Bearing Steel
• Color Silver Gray; Inside Diameter 12mm / 0.47"
• Weight 81g; Package Content 2pcs x Self Aligning Ball Bearing
• Outside Diameter 32mm / 1.26"; Thickness 10mm / 0.39"
• Model 1201

Product Description

Self Aligning Ball Bearing has a spherical outer ring raceway, the balls and cage continue to rotate, this type of bearings is suitable when the displacement of the centers around which the shaft and housing rotate and shaft deflection are likely to occur.Self-aligning ball bearings are double row, self-retaining units comprising solid outer rings with a concave raceway, inner rings with a cylindrical or tapered bore and ball and cage assemblies.They are particularly suitable for applications where considerable shaft deflections or misalignment are to be expected. Additionally, the self-aligning ball bearing has the lowest friction of all rolling bearings, which enables it to run cooler even at high speeds.This type bearings mainly take the radial load as well as moderate axial load.

Specifications
