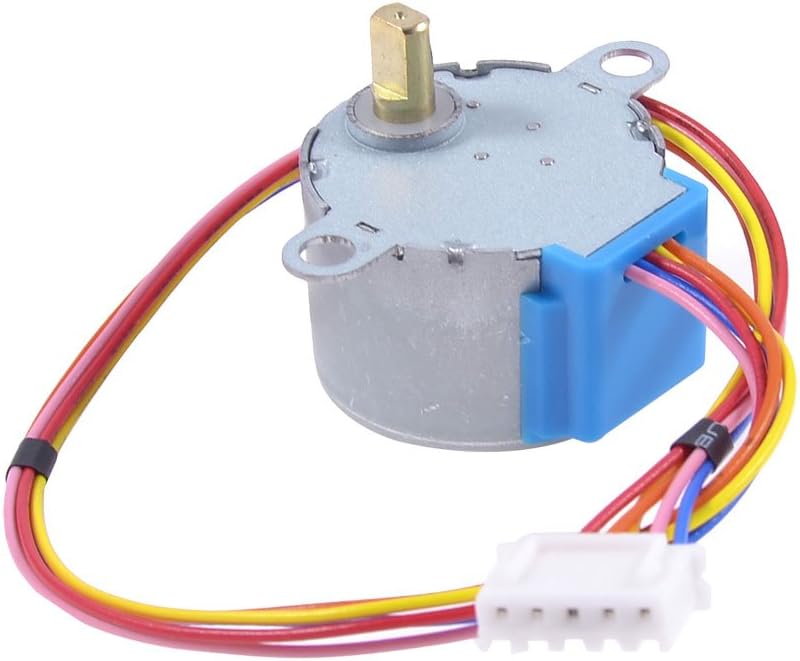

28BYJ-48-5V 4 Phase 5 Wire DC 5V Gear Step Stepper Motor

Key Features

• Product Name Step Motor;Type 28BYJ48;Voltage DC 5V
• Resistance 300 Ohm;Step Angle 5.625 x 1/64;Reduction rate 1/64
• Body Size 28 x 19 mm / 1.1" x 0.75" (D*T);Shaft Dia. 5 mm / 0.2";Cable Length 23 cm / 9"
• Mount Hole Dia. 4 mm / 0.16";Mounting Hole Distance 35 mm / 1.38";Main Material Metal, Plastic
• Main Color Silver Gray, Blue;Net Weight 38g;Package Content 1 x Step Motor

Product Description

Step motor, 4 phase 5 wire, DC 5V voltage, can be driven by ordinary ULN2003 chip, great replacement.
