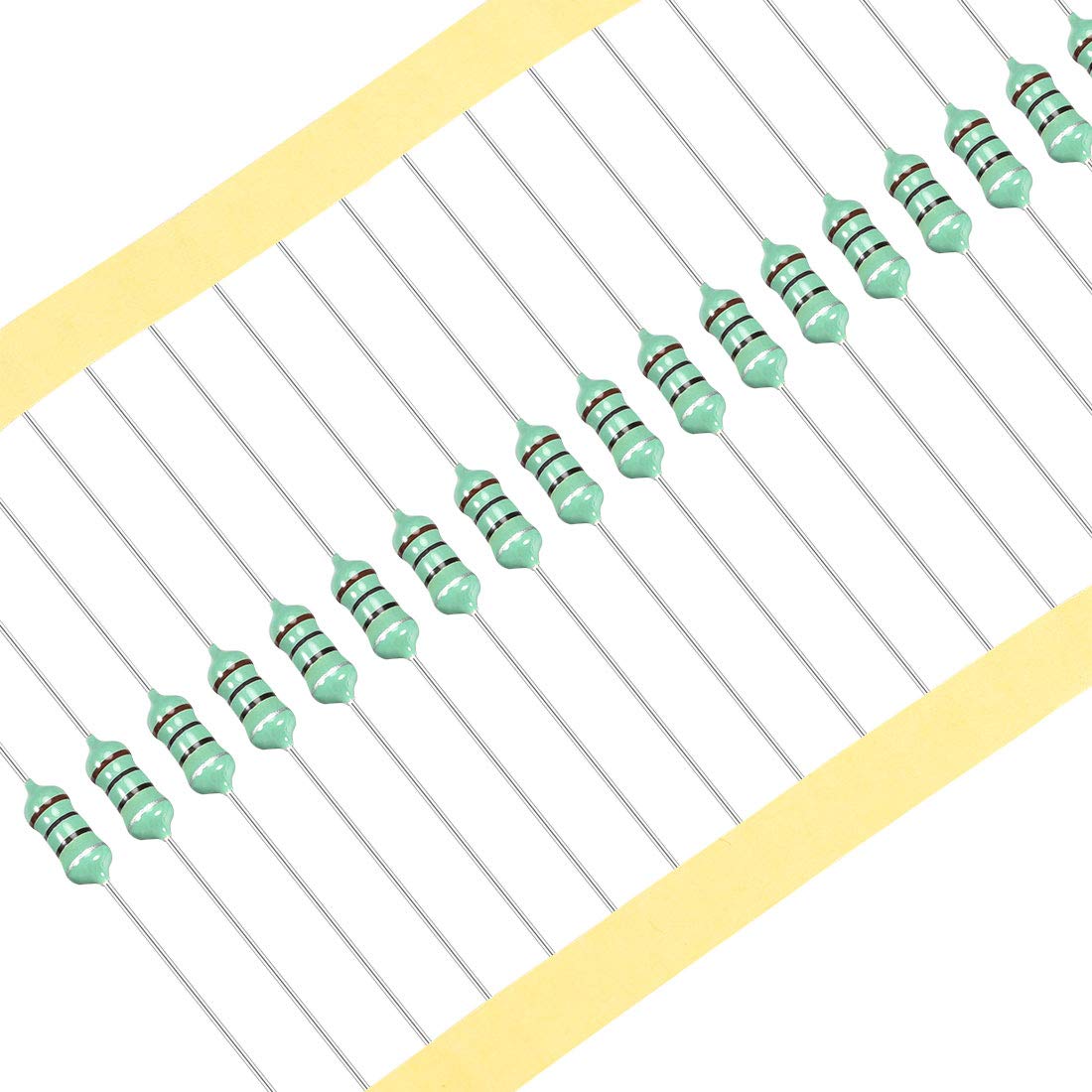

25Pcs 0410 Color Ring Inductor 10uH 0.5W Axial Choke Coil Inductor
Key Features
- Color RingsThe first two of these represent a two-digit significant number. The third band represents the multiplier. The inductance is calculated by multiplying the significant number by ten to the power of the value of the third band. The fourth band represents the tolerance.
- Small inductors having high Q and low distributed capacity. Excellent for use where space, weight and size is a factor.
- Axially leaded inductors with a 10% tolerance suitable for a wide range applications including decoupling, filtering and blocking.
- These fixed inductors are coated with epoxy resin ensures humidity resistance for long life.Fixed inductor uses multiple coils of a conducting material to store energy using a magnetic field.
- For low current and low power are made in cases resembling resistors. These may be either plain (phenolic) core or ferrite core. An ohmmeter readily distinguishes them from similar-sized resistors by showing the low resistance of the inductor.
Product Description
Features
Color Rings:The first two of these represent a two-digit significant number. The third band represents the multiplier. The inductance is calculated by multiplying the significant number by ten to the power of the value of the third band. The fourth band represents the tolerance.Small inductors having high Q and low distributed capacity. Excellent for use where space, weight and size is a factor.Axially leaded inductors with a 10% tolerance suitable for a wide range applications including decoupling, filtering and blocking.These fixed inductors are coated with epoxy resin ensures humidity resistance for long life.Fixed inductor uses multiple coils of a conducting material to store energy using a magnetic field.For low current and low power are made in cases resembling resistors. These may be either plain (phenolic) core or ferrite core. An ohmmeter readily distinguishes them from similar-sized resistors by showing the low resistance of the inductor.Specification:Inductance:10uHPower：1/2WTolerance:10%Maximum DC Current:7.96AMaximum DC Resistance:80ohmSelf Resonant Frequency:45HzBody Size:4x11mm
Package Content
25 x Axial Inductoraudio
Specifications
| Item Weight | 0.422 ounces |
| Product Dimensions | 6.02 x 3.78 x 0.28 inches |
