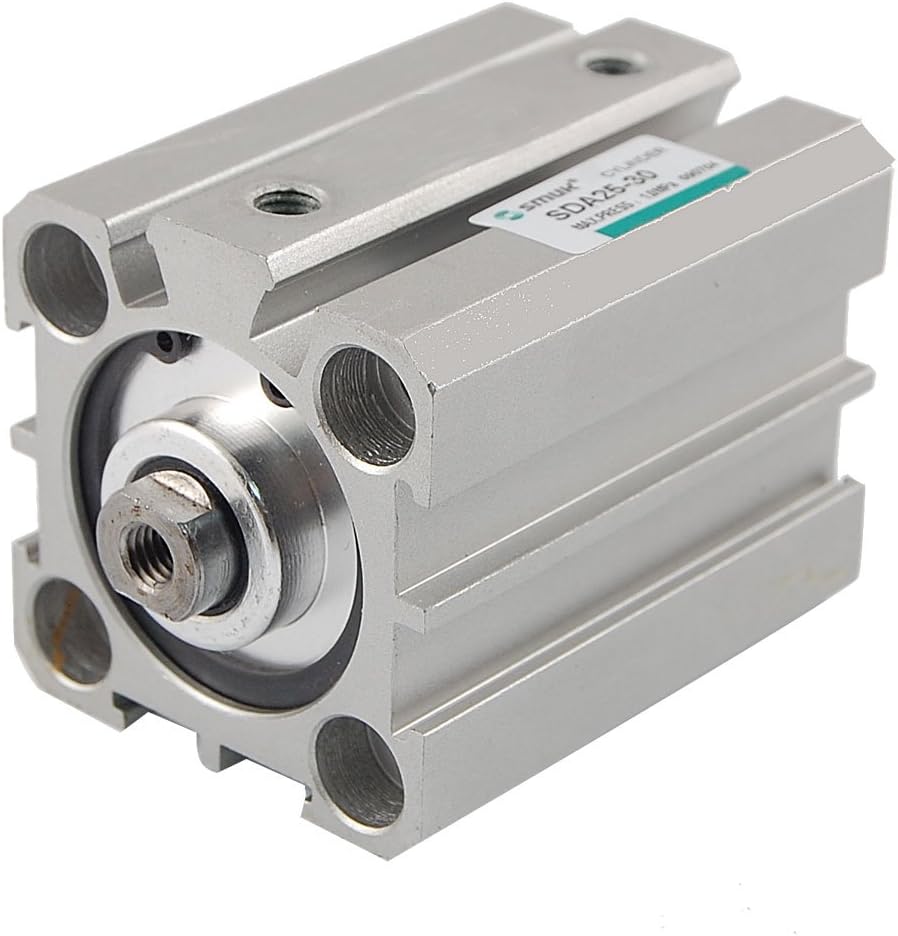

25mm Bore 30mm Stroke Double Action Pneumatic Actuator Air Cylinder

Key Features

• Product Name Air Cylinder;Model SDA 25-30;Action Type Double Action
• Bore 25mm/1'';Stroke 30mm/1.2'';Max Presssure 1.0Mpa
• Port Dia.(Approx) 4mm/0.16'';Center Threaded Hole Dia(Approx) 5mm/0.2'';Piston Rod External Diameter 10mm/0.39''
• Mounting Thread Diameter 5mm/0.2'';Overall Size(Approx) 42 x 40 x 56mm/1.7'' x 1.6'' x 2.2''(L*W*H);Material Aluminum Alloy
• Weight 161g;Package Content 1 x Air Cylinder

Product Description

25mm bore and 30mm stroke, 1.0Mpa pressure, double action and single rod. Air cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.
