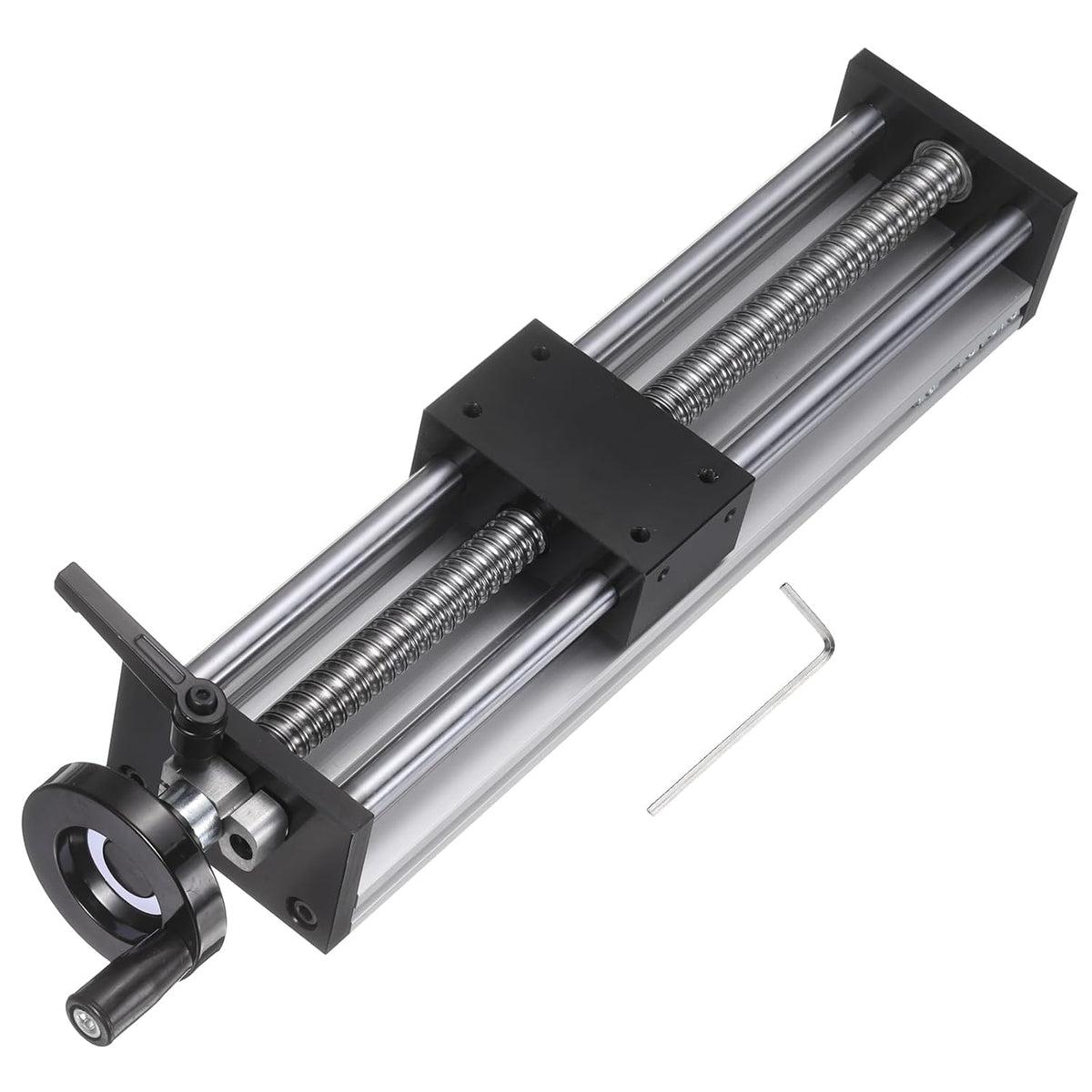

250mm Effective Stroke Length Manual Sliding Table, Double Optical Axis Slide Rail, BallScrew SFU1609, 16mm Diameter 5mm Pitch, 1 Start, Moved 5mm/Cycle, for CNC Machine

Key Features

• Size and Package 1 Pcs x Linear Stage Actuator with Hardware; Effective Travel Length 250mm; Type BallScrew SFU1605,16mm Diameter 5mm Pitch, 1 Starts, 5mm Lead (the lead screw can move 5mm in one turn). Note For optimal performance, avoid exceeding the travel range or applying uneven loads.
• Material The linear rail cross sliding stage is made of Aluminum Alloy with a Honeycomb-Inspired Coating, featuring fine workmanship, high temperature and corrosion resistance, durability, and high work efficiency.
• Effective Travel 50 mm Effective Travel. The linear guide features a dual optical axis guide rail design, enabling ultra-smooth, high-precision linear motion. This design ensures stable operation, high speed, reliability, and repeatability.
• Installation When using, fix the included wrench on a flat base, ensuring the two optical axes are parallel. Turn the black rotary wheel, which engages the ball screw drive, and the slide will move smoothly along the two optical axes. The position can be manually fine-tuned, suitable for precise positioning of small equipment, sample adjustment, and other applications. Avoid excessive travel and uneven loading.
• Wide Application Linear stage actuator ball screws are suitable for a variety of precision small displacement scenarios and can be applied to cutting machines, CNC engraving machines, laser printers, small CNC machine tools, precision measuring equipment in optical laboratories, etc.

Product Description

Description

Material: The linear rail cross sliding stage is made of Aluminum Alloy with a Honeycomb-Inspired Coating, featuring fine workmanship, high temperature and corrosion resistance, durability, and high work efficiency.Effective Travel: 250 mm Effective Travel. The linear guide features a dual optical axis guide rail design, enabling ultra-smooth, high-precision linear motion. This design ensures stable operation, high speed, reliability, and repeatability.Installation: Simply secure the included wrench on a flat surface to align the dual optical axes. Turn the black control knob to activate the ball screw drive, moving the slide smoothly for precise adjustment. Suitable for the precise positioning of small equipment, sample adjustment. Wide Application: Linear stage actuator ball screws are suitable for a variety of precision small displacement scenarios and can be applied to cutting machines, CNC engraving machines, laser printers, small CNC machine tools, precision measuring equipment in optical laboratories, etc.Specification:Material: Stainless steel and aluminum alloyScrew type: BallScrew SFU1605Diameter:16 mm / 0.63 inchPitch: 5 mmLead: 5 mm (the lead screw can move 5mm in one turn)Effective Travel Length: 250 mm / 9.84 inchSize: 355 x 80 x 56 mm / 13.98 x 3.15 x 2.2 inch (L x W x T)

Package Content

1 Pcs x Linear Stage Actuator with 2 x Machine screws, 1 x wrench, 1 x hand crank, 10 x locking device
