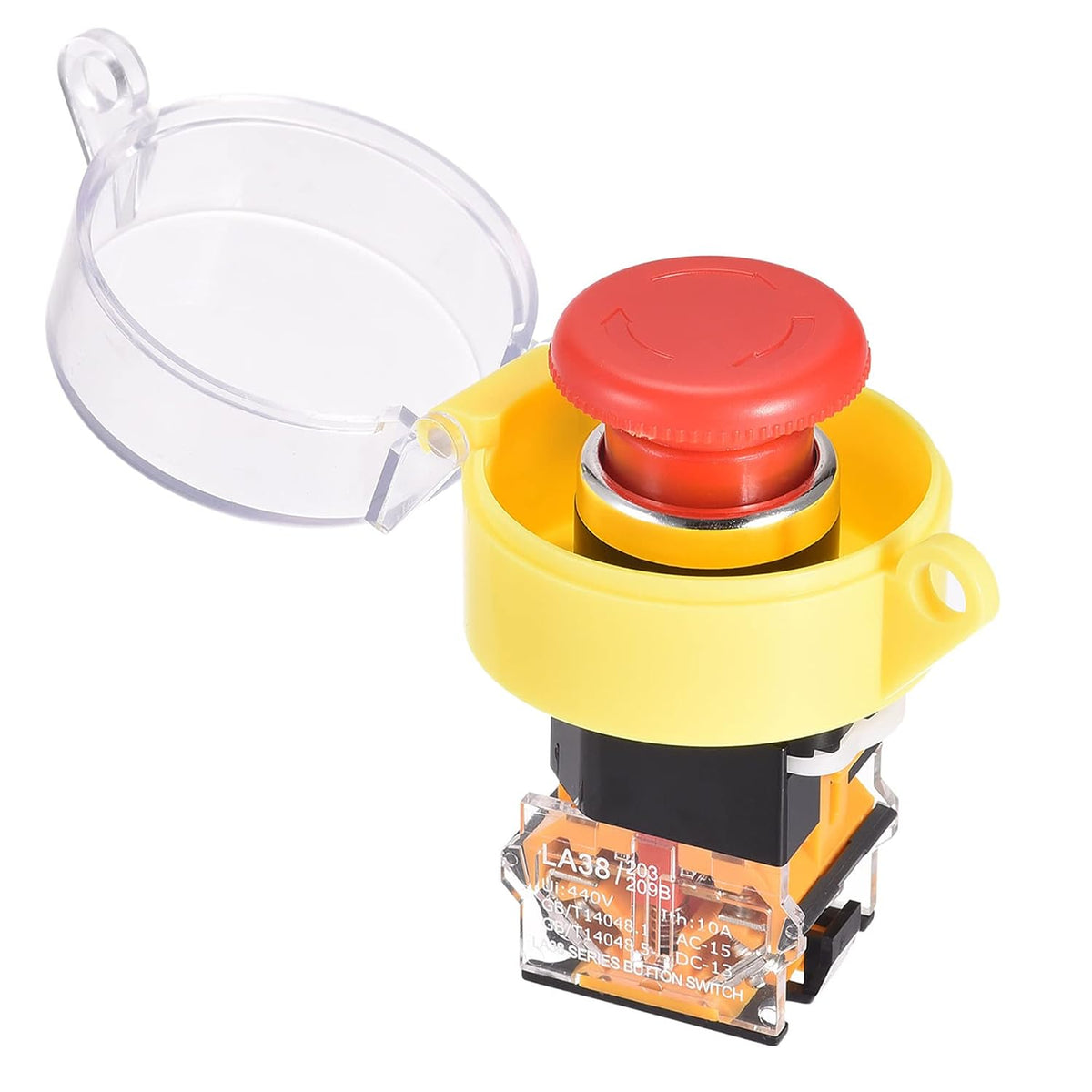

22mm Mounting Latching Emergency Stop Push Button Switch with Protective Cover, 60mm Emergency Stop Sign 1NO 1NC

Key Features

• Operation Type Latching; Contact Type DPST 1 NO 1 NC; Overall Size 80*40*30(L*W*H)
• (Rated) Voltage 250V; Ui 440V; Ith 10A；Push to stop and lock, twist to reset.
• Mounting Hole Dia 22mm / 0.87";Terminals Quantity 4; Main Color red+black
• Attention：The product needs to be installed by you. Please press the white spring to pull out the switch button head, and then add accessories.
• Widely used in lathe, CNC machine tool, laser cutting machine, elevator and other control circuit emergency stop, suitable for the design and replacement of control panel and electrical box

Product Description

Description

1NO 1NC (DPST) contact type, red round head, Latching action, 22mm panel cutout diameter.Widely used in lathe, CNC machine tool, laser cutting machine, elevator and other control circuit emergency stop, suitable for the design and replacement of control panel and electrical boxSpecification:Model：LA38-11ZSRated Voltage: AC250VAction Type: Latching (Self-Locking)Contacts Type: 1NO 1NCTerminals Quantity: 4Panel Mounting Diameter: 22mm / 0.78"Overall Size: 80*40*30(L*W*H)Ui: 440V; Ith: 10A

Package Content

1 x Push button Switch & 1x Protective Cover, 1x 60mm Emergency Stop Sign
