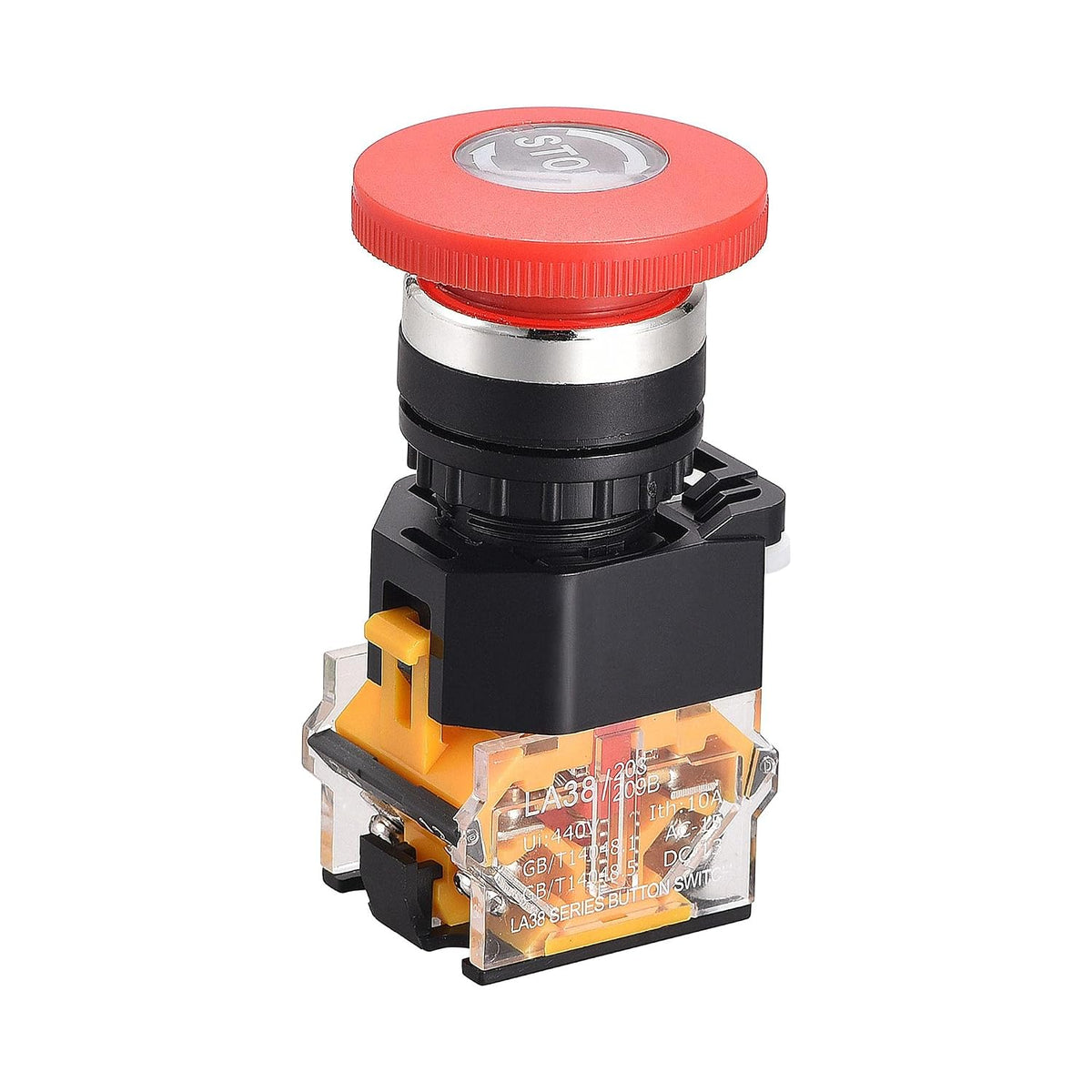

22mm Mounting Latching Emergency Stop Push Button Switch AC250V 10A 1NO 1NC

Key Features

• Operation Type Latching; Contact Type DPST 1 NO 1 NC; Overall Size 77*40*30mm(L*W*H)
• (Rated) Voltage 250V; Ui 440V; Ith 10A；Push to stop and lock, twist to reset.
• Mounting Hole Dia 22mm / 0.87";Terminals Quantity 4; Main Color red+black
• Push to stop and lock, twist to reset.
• Widely used in lathe, CNC machine tool, laser cutting machine, elevator and other control circuit emergency stop, suitable for the design and replacement of control panel and electrical box

Product Description

Description

1NO 1NC (DPST) contact type, red round head, Latching action, 22mm panel cutout diameter.Push to stop and lock, twist to reset.For emergency stop in industry with the conspicuous red mushroom cap.Used widely to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.Specification:Rated Voltage: AC250VAction Type: Latching (Self-Locking)Contacts Type: 1NO 1NCTerminals Quantity: 4Panel Mounting Diameter: 22mm / 0.78"Overall Size: 77*40*30mm(L*W*H)Ui: 440V; Ith: 10A

Package Content

1 x Push button Switch
