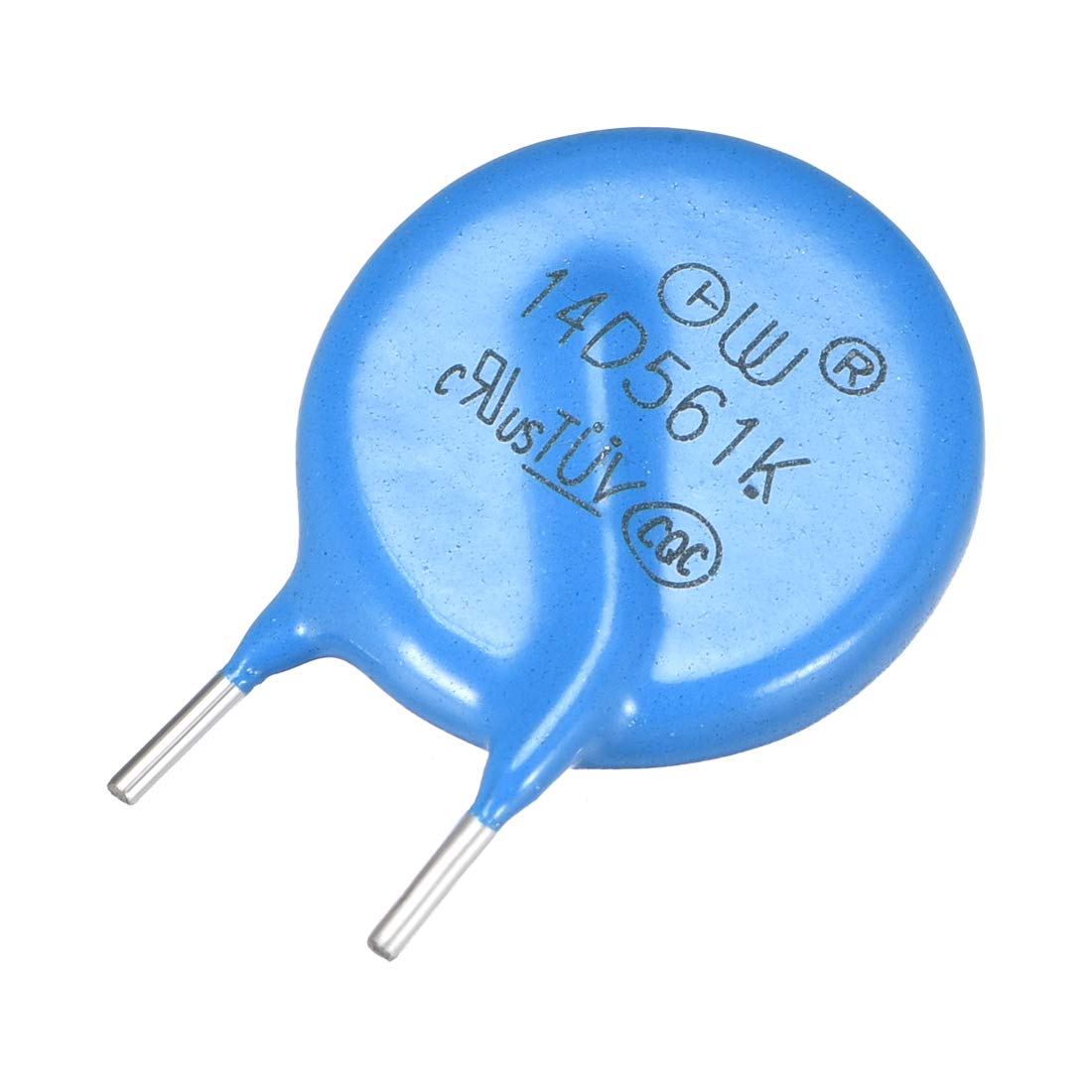

20Pcs Voltage Dependent Resistors AC 350V 14D561K L3.5 Radial Lead Disc Varistors

Key Features

• Model 14D561K; Max. Allowable Voltage AC 350V; DC 460V; Varistor Voltage 560V ±10%
• Max. Clamping Voltage (8/20 μS) 915V; Max. Clamping Current (8/20 μS) 50A
• Lead Size 3.5 x 0.7mm / 0.14" x 0.03" (L*D); Lead Spacing 7.5mm / 0.3"; Lead Type Straight
• Specific epoxy coated disc construction with radial leads, long life use.
• Voltage Dependent Resistor is designed to protect equipment against transient voltage spikes.

Product Description

Specifications

Model: 14D561KMax. Allowable Voltage: AC 350V; DC 460VVaristor Voltage: 560V ±10%Max. Clamping Voltage (8/20 μS): 915V; Max. Clamping Current (8/20 μS): 50AMax. Peak Current (8/20 μS) : 4500ARated Power: 0.6W; Max. Energy: 125JTypical Capacitance : 534pF (1kHz)Lead Type: StraightLead Size: 3.5 x 0.7mm / 0.14" x 0.03" (L*D); Lead Spacing : 7.5mm / 0.3"Body Size: 15 x 3.7mm / 0.6" x 0.15" (D*T)Temperature Coefficient: PTC; Fit Climate Type: 40/85/56Material: Epoxy, ZnO; Color: Blue

Package Content

20 x Voltage Dependent Resistors

Descriptions

1.Specific epoxy coated disc construction with radial leads, long life use.2.The Voltage Dependent Resistor is designed to protect equipment against transient voltage spikes.3.Connected directly across the power supply rails. When a voltage spike is encounted, the varistor rapidly changes impedance from its normal high impedance state to a very low level in standby mode.4.Can permit absorbtion of the unwanted high voltage and protect voltage sensitive components and circuits.5.Widely used in power supply, industrial equipment, lighting products, electronics and home appliance etc.
