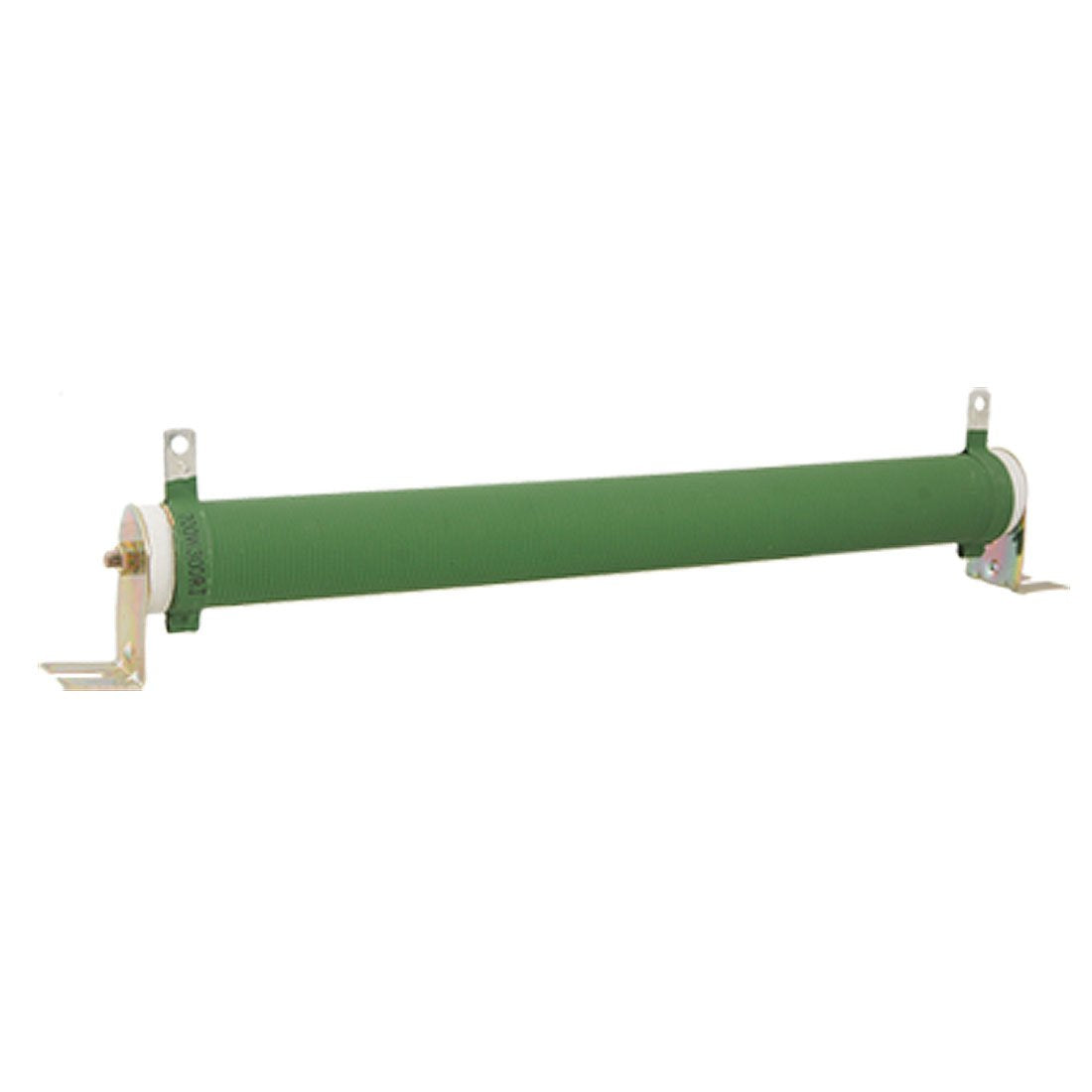

200W 300 Ohm 5% Green Ceramic Tube Fixed Type Wire Wound Resistor

Key Features

• Product Name Wire Wound Resistor;Type Fixed;Rated Power 200W
• Resistance 300 Ω;Resistance Tolerance ±5% (J);Material Metal, Ceramic
• Tube Size 26.7 x 3cm/ 10.5" x 1.2" (L*D);Hole Diameter 4mm/ 0.16"
• Overall Size 31.5 x 2.7 x 5cm/ 12.4" x 1" x 2" (L*W*H);Color As Picture Shown
• Net Weight 283g;Package Content 1 x Wire Wound Resistor

Product Description

Metal wire is wound on the ceramic tube coated with non-flammable material, good dissipation, high stability and long life. This fixed wire wound resistor is widely used in power supply, transducer, elevator, arena and high requirement equipment industry.

Specifications
