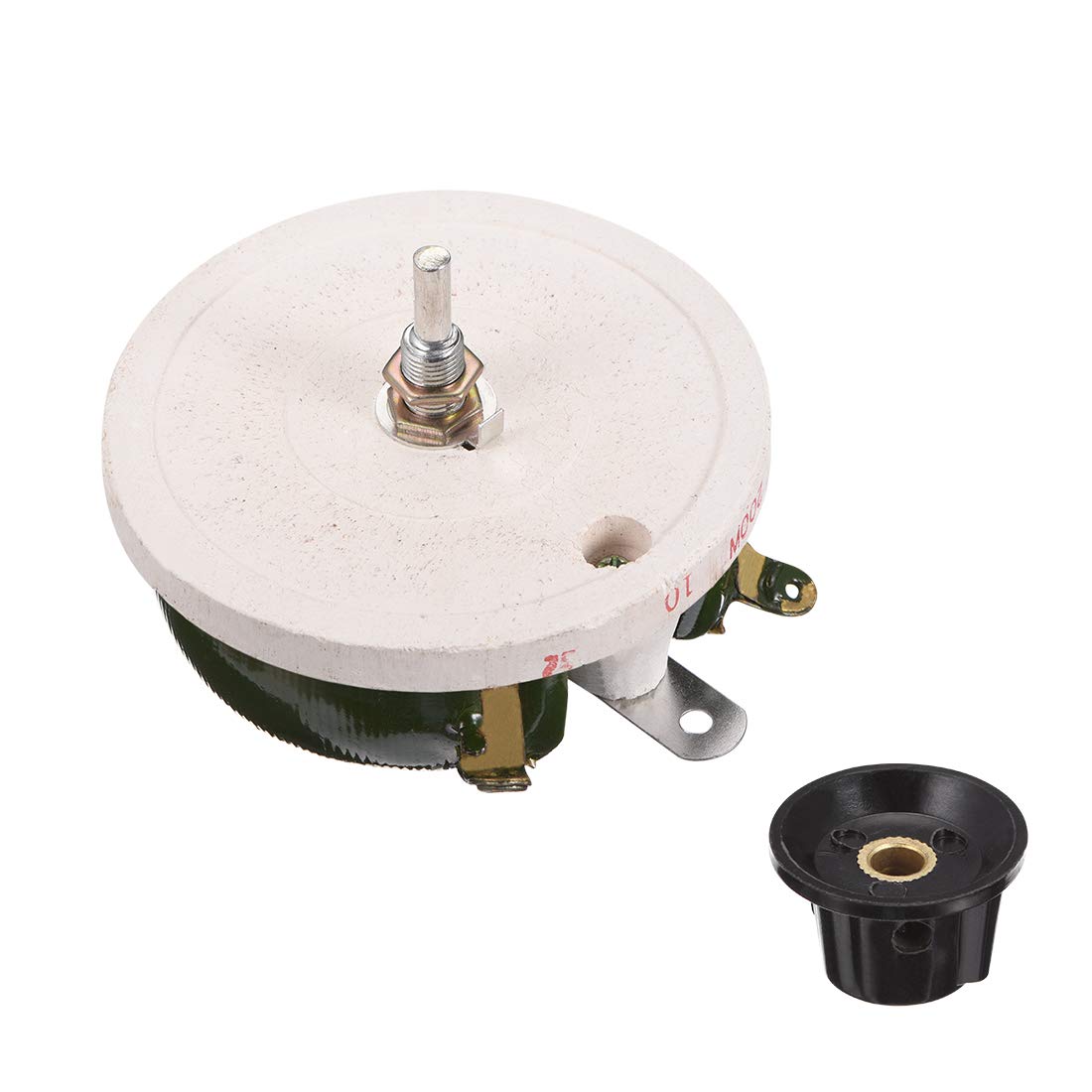

200W 10R Ohm Wirewound Ceramic Potentiometer Variable Rheostat Resistor with Knob

Key Features

• Model Variable Rheostat Wirewound Ceramic Potentiometer，can be used widely as light dimmers and motor speed control, is applicable for arc lamps, pumps, fans and blowers, model trains or other applications that require high voltage and current.
• Widely used in educational modeling, load simulations, industiral machinery RPM adjustment, voltage and current adjustment, instruments, and automated control installations.
• Resistance Value 10R Ohm , Power：200W, Tolerance+/-5%
• Total Size 104 x 80mm/ 4.1x 3.15 inch (D * H)
• The rheostat is consisted of ceramic core and a resistive wire wrapped to form a toroid coil with a wiper axle.

Product Description

Product Name: Wirewound Ceramic Potentiometer Resistance Value: 10R OhmPower:200WTolerance: +/-5%Terminals Number: 3

Features

Round ShaftTotal Size: 104 x 80mm/ 4.1x 3.15 inch (D * H)Screw Thread Dia: 10mm/0.39 inchShaft Diameter: 6mm/0.23 inchShaft Length(do not include the Screw Thread parts):15.7mm/0.62 inchShaft Total Length: 32mm/1.26 inch

Package Content

1 x Wirewound Ceramic Potentiometer Knobs Size: 18.8 x 30/ 0.74 x 1.18 inch(H*D)10R Ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.（this item include Knobs)Material：Ceramic MetalControl the electrical resistance of a circuit without interrupting the flow of current.The rheostat is consisted of ceramic core and a resistive wire wrapped to form a toroid coil with a wiper axle.Can be used widely as light dimmers and motor speed control, is applicable for arc lamps, pumps, fans and blowers, , model trains or other applications that require high voltage and current.Knurled shaft with split design for push-on knob.

Specifications
