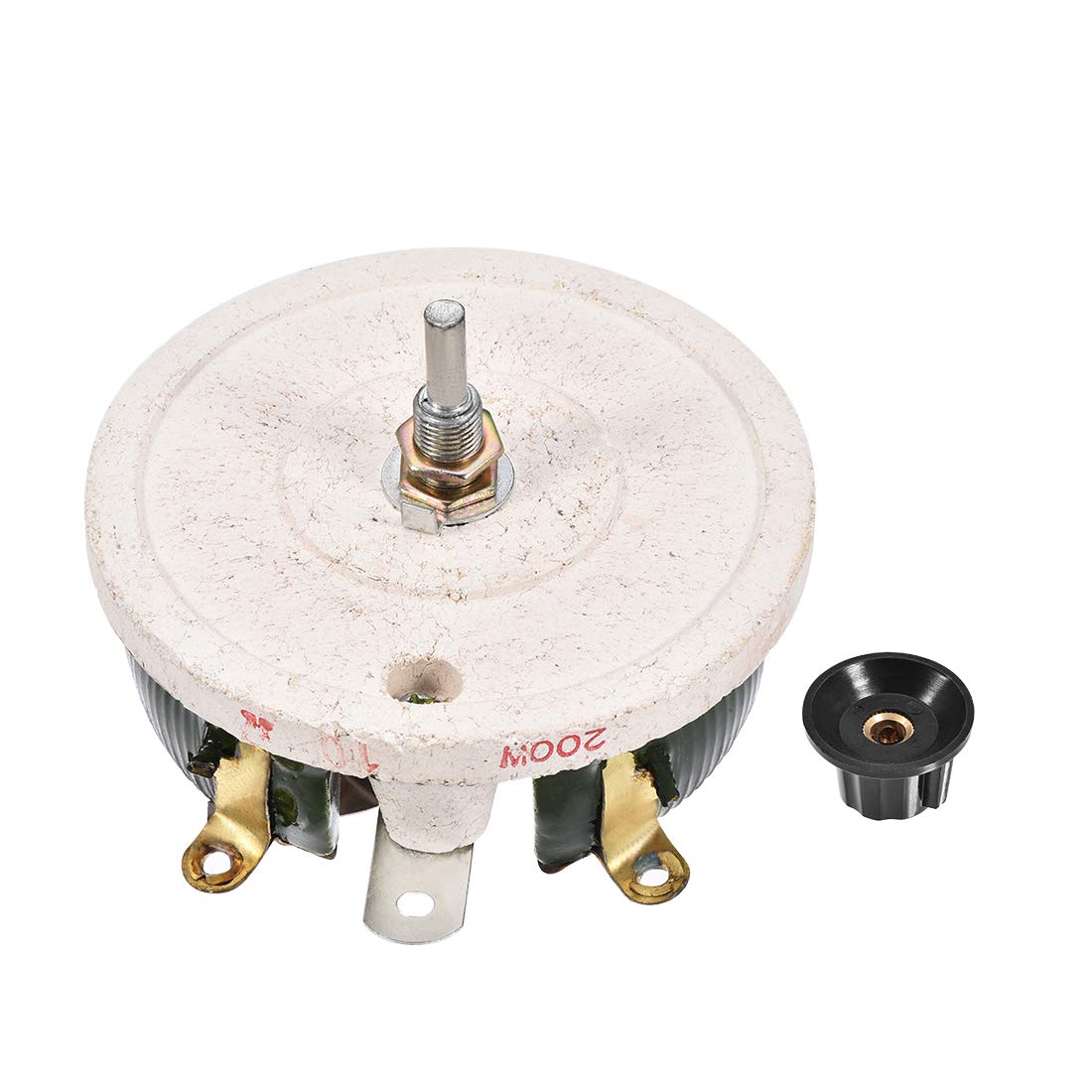

200W 10 Ohm Wirewound Ceramic Potentiometer Variable Rheostat Resistor with Knob

Key Features

• Model Variable Rheostat Wirewound Ceramic Potentiometer，can be used widely as light dimmers and motor speed control, is applicable for arc lamps, pumps, fans and blowers, respirators, model trains or other applications that require high voltage and current.
• Widely used in educational modeling, load simulations, industiral machinery RPM adjustment, voltage and current adjustment, instruments, and automated control installations.
• Power200W; Resistance Value 10 Ohm; Tolerance +/-10%
• Total Size 105 x 80mm/ 4.13" x 3.15" (D*H)
• The rheostat is consisted of ceramic core and a resistive wire wrapped to form a toroid coil with a wiper axle.

Product Description

Specification:Material：Ceramic MetalPower:200WResistance Value: 10 OhmTolerance: +/-10%Total Size: 105 x 80mm/ 4.13" x 3.15" (D*H)Thread Dia: 9.8mm / 0.39"Shaft Size(do not include the Screw Thread parts): 6mm x 15mm / 0.24" x 0.59“ (D*L)Knobs Size: 30 x 6 x 18mm / 1.18" x 0.24" x 0.71"(Max.O.D.*I.D.*H)

Package Content

1 x Wirewound Ceramic Potentiometer

Description

Control the electrical resistance of a circuit without interrupting the flow of current.The rheostat is consisted of ceramic core and a resistive wire wrapped to form a toroid coil with a wiper axle.Can be used widely as light dimmers and motor speed control, is applicable for arc lamps, pumps, fans and blowers, respirators, model trains or other applications that require high voltage and current.Knurled shaft with split design for push-on knob.
