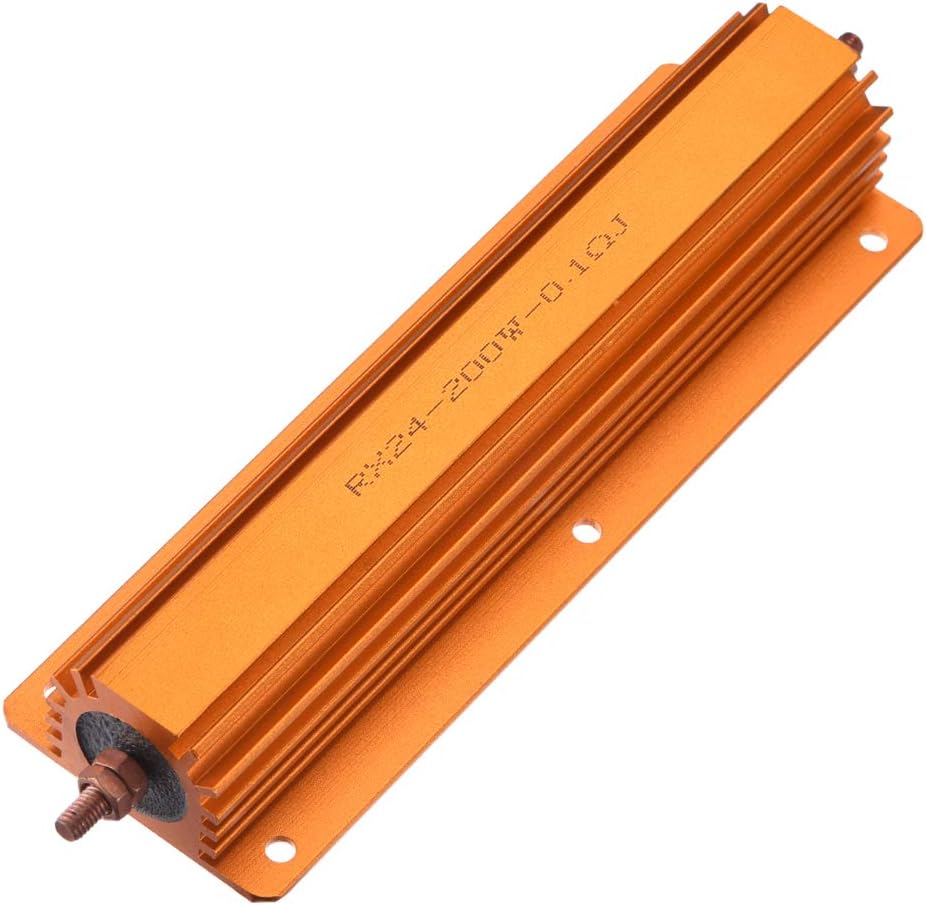

200W 0.1 Ohm Aluminium Housing Chassis Mounted Wirewound Power Resistor Gold Tone

Key Features

• Aluminum Housing resistor,aluminum Case resistor.
• Rated resistance0.1 Ohm,tolerance 5%.Rated power200W.
• Mounting typechassis mounted with Screws.
• Aluminum housing for heat dissipation, suitable for cooling plate installation.
• Widely used in ring doorbell,power supply, transducer, frequency converter, frequency divider, elevator.

Product Description

Descriptions

Multiple connection modes, easy to install.Widely used in ring doorbell,power supply, transducer, elevator and high requirement equipment industry.

Features

Product Name : Aluminum Housing ResistorModel:RX24Resistance Value : 0.1 ohmResistance Tolerance : +/- 5% (J)Power Rating : 200WBoard Length(not included terminal):165mm/6.5''Mounting Hole Diameter:4.2mm/0.17''Mounting Holes Distance:74mm/2.91''Total Size:200 x 53 x 29mm/7.87'' x 2.09'' x 1.14''(L*W*H）Casing Material : Aluminum,Ceramic,AlloyColor : Gold ToneWeight : 298g

Package Content

1 x Aluminum Housing Resistor
