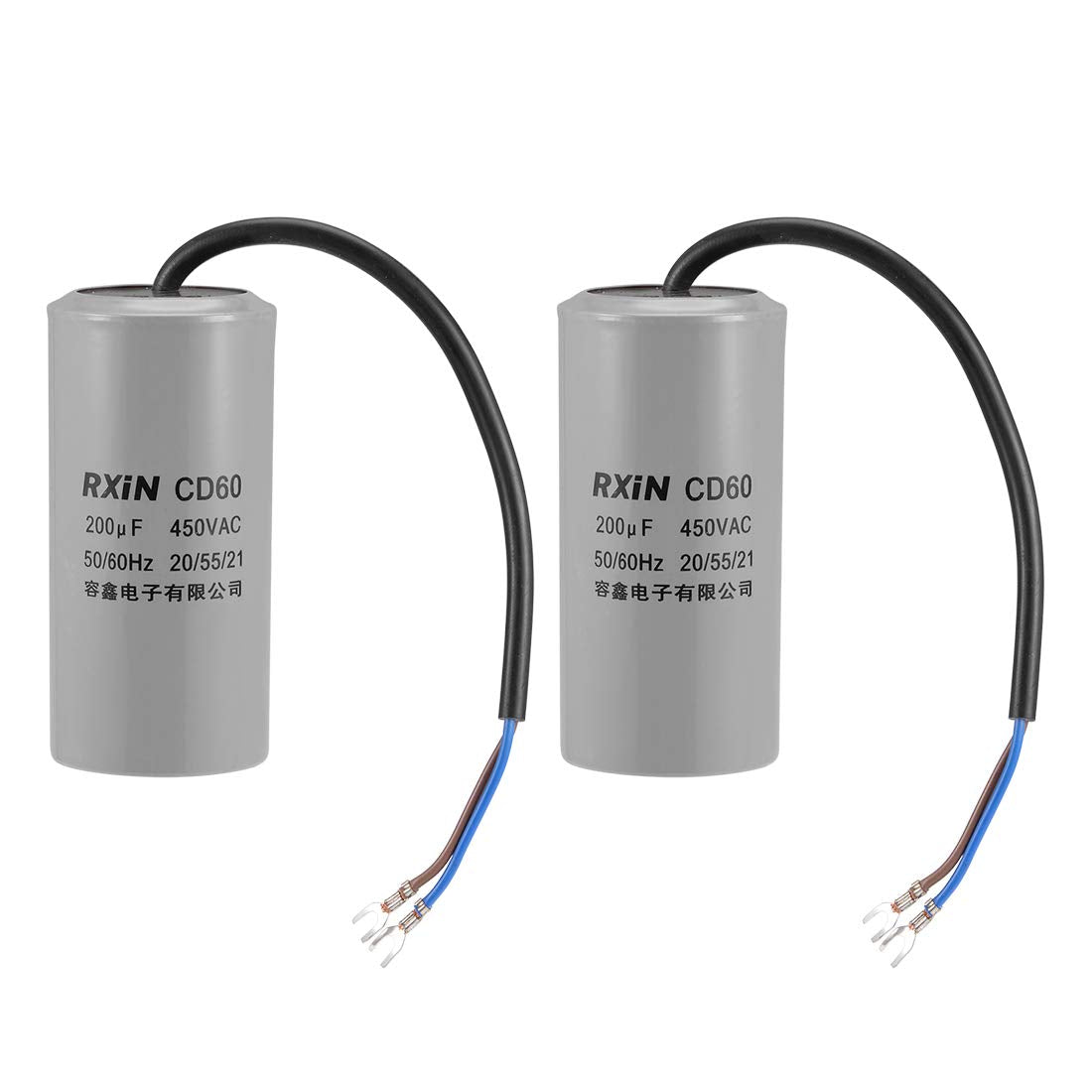

200uf Motor Star Capacitor 200mfd AC 450V for HSingle-Phase 50/60 Hz AC Motor and Fan 2Pcs

Key Features

• 200uf 450 Volt AC CD60 Capacitor for Single-Phase AC Motors
• Case size measures 1.97" diameter x 4.09" height
• Wire lead termination with no polarized
• Heat resisting, low leakage, low loss and low impedance
• It is widely used for refrigerators, washing machines, air conditioning systems, fans, machine tools, garage door openers, etc.

Product Description

Specification:Capacitance: 200uf (200mfd)Tolerance: -10% - +20%Rated Voltage: AC 450VFrequency: 50/60 HzOperating Temperature: -20℃-55℃Terminal Type: Insulated Wire LeadsDimensions:Case Diameter: 50mm (1.97")Case Height: 104mm (4.09")Wire Length: 220mm (8.66")About CD60 Capacitors:-CD60 series aluminum electrolytic capacitor for starting A.C. motor are made of aluminum foil bar as the poles, alumina as dielectric, and semi-solid state electrolyte. All of the components are housed in plastic case.-CD60 capacitors are designed with high electrical characteristics and are widely used in single phase A.C. motors with rated voltage 450V AC and the frequency of 50 Hz-60 Hz.-CD60 capacitors are often used to get high rotary torque at low starting current and also the motor at a lower starting current under high torque.-Be sure to match the V AC Rating and the uF or Microfarad Rating before purchasing.
