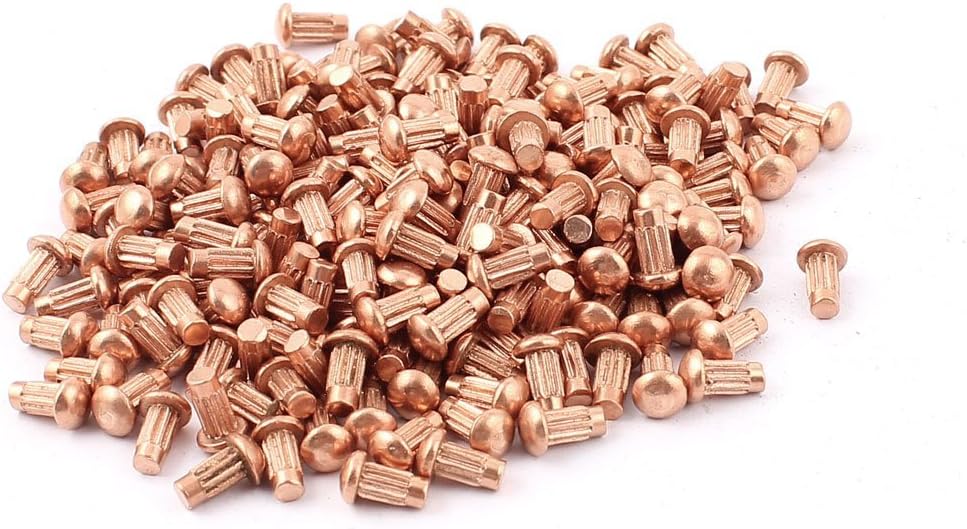

200 Pcs 1/8" x 1/4" Copper Round Head Solid Rivets Knurled Shanks
Key Features
- These are copper (not copper plated base metal) solid rivets.
- Solid rivets are the strongest rivets used in fastened joints.
- Swelling of the shank occurs most by the clinched head end of the rivet.
- Rivets can be hardened for some applications to improve strength and durability.
- Copper Solid Rivets are a good choice for good electrical properties and corrosion resistance.
Product Description
Descriptions
These are copper (not copper plated base metal) solid rivets. Copper solid rivets are the strongest rivets used in fastened joints. To fasten the rivet, the end of the shank is impacted, pressed or spun after the rivet has been inserted into a work-piece. A solid head is formed (upset) to create the clinched head of the rivet. When impact or press clinched, the force required to form the clinched head of the rivet swells the entire shank of the rivet to completely fill the work-piece hole. Swelling of the shank occurs most by the clinched head end of the rivet. Pre-punched or drilled work-piece holes are required for use on most solid rivet applications.
Specifications
Product Name: Copper Solid RivetMaterial: CopperShank Diameter(d1): 3mm(1/8 inch)Shank Length(L): 6mm(1/4 inch)Head Diameter(d): 5.2mm(13/64 inch)Head Thickness(k): 2.2mm(3/32 inch)Color: Copper ToneNet Weight: 124g
Package Content
200pcs(+/-2%) x Copper Solid Rivet
Specifications
| Item Weight | 0.01 ounces |
| Product Dimensions | 5.51 x 3.94 x 0.59 inches |
