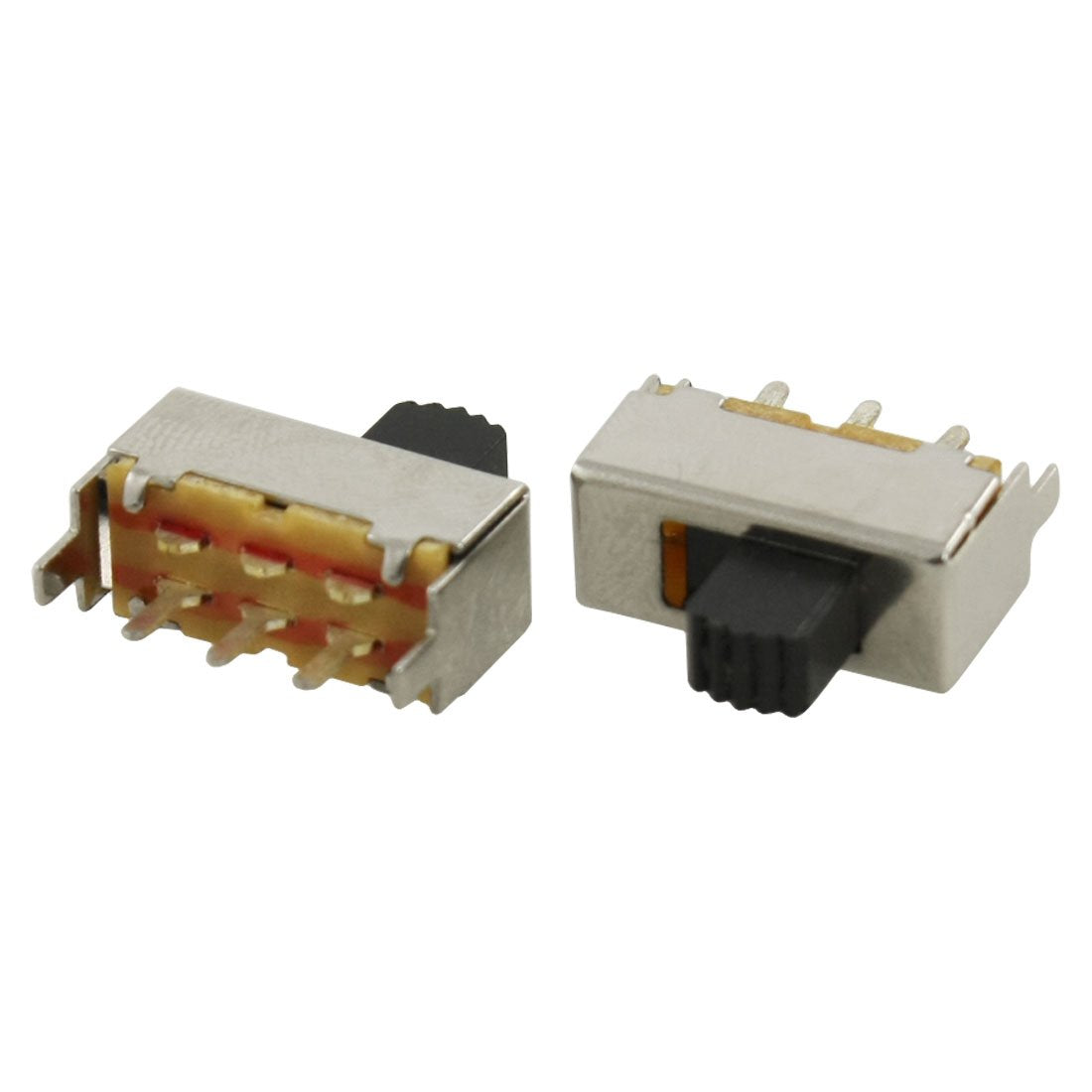

2 Position SPDT On/On 3 Terminals Slide Switch, DC 50V, 0.5 Amp

Key Features

• Product name slide switch; model ss12f43;Type SPDT; contact Type on/on, 2 positions
• Terminal quantity 3;working power 0.5A 50V DC; contact resistance 30mî resistance 100mî min at 500V DC
• Withstand Voltage AC 500V for 1 min; terminal Size (each one) 4.7 x 1 mm / 0.18" x 0.039" ( L * W);pin Pitch 4 mm / 0.157";main body size(not include pins & knob) 17 x 7.4 x 7 mm / 0.67" x 0.29" x 0.27" (l*w*h)
• Switch total Size 17 x 7.4 x 17.4mm / 0.67" x 0.29" x 0.68" (l*w*h);knob Size 5.3 x 3.8 x 6 mm / 0.21" x 0.15" x 0.24" (l*w*h);material plastic, metal, electronic parts
• Main color Silver Tone, black; weight 11G;package content 5 x slide switch

Product Description

Features

easy structure, mini body, 3 terminal, vertical handle,1 pole 2 throw, sliding knob actuator. Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. Etc. Also a great component for DIY.
