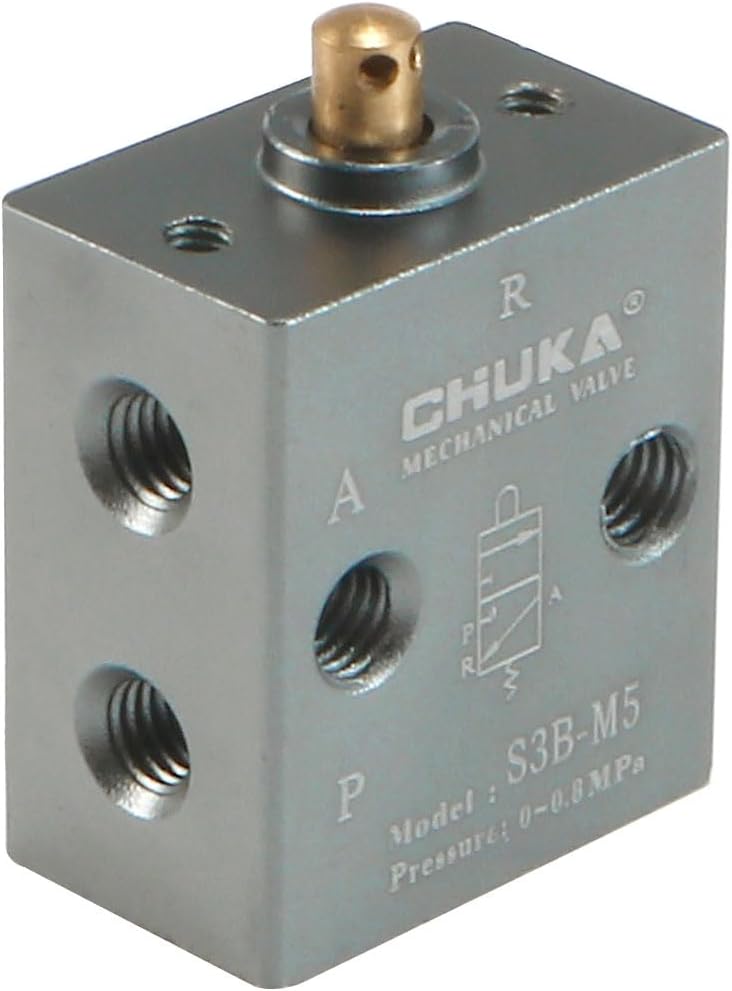

2 Position 3 Way M5 Manual Handle Control Pneumatic Solenoid Mechanical Valve,S3B-M5

Key Features

• UNIVERSAL DESIGN - Button Type Handle ; Control Type Extenal Control ; Number of Position 2 ; Joint Pipe Size M5
• MATERIAL - It adopts pure aluminum valve body, fully automatic machining center processing, surface frosting treatment, strong wear resistance and long service life.
• ADVANTAGE - The stem sealing ring has strong air tightness, good insulation, corrosion resistance, heat resistance .The inside of the valve body is smooth and burrfree, smooth and easy to use, and has a long life.
• APPLICATION - Single Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
• Package Included1 x Mechanical Valve

Product Description

Specification:Product Name : Mechanical ValveModel: S3B-M5Weight: 38gColor : Silver ToneCV values: 2.5mm2Button Type : HandleNumber of Position : 2Joint Pipe Size: M5Control Type : Extenal ControlMounting hole Size :4.5mm / 0.18"Seal material: NBRMain parts material: Aluminum alloyWorking pressure: 0~0.8mpaOperating temperature: -5~60 Degree CelsiusTotal Size : 35 x 26 x 16mm /1.38" x 1.02" x 0.63" (L x W x H) Package Included:1 x Solenoid Valve

Description

1.It adopts pure aluminum valve body, fully automatic machining center processing, surface frosting treatment, strong wear resistance and long service life.2.The stem sealing ring has strong air tightness, good insulation, corrosion resistance, heat resistance and is suitable for a wide range of applications.3.The inside of the valve body is smooth and burrfree, smooth and easy to use, and has a long life.4.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
