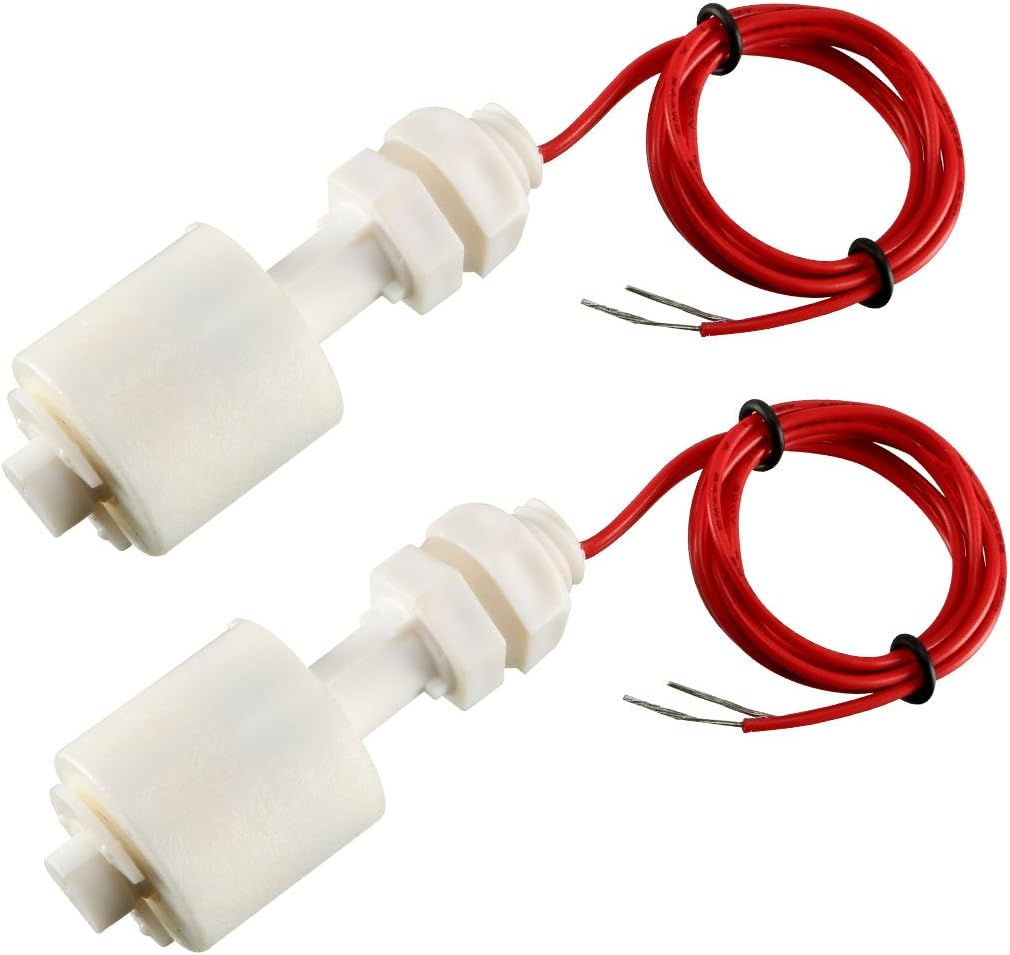

2 Pcs ZP4510 White Liquid Water Level Sensor Float Floating Switch

Key Features

• Product Name Water Level Sensor;Model No. ZP4510;Max Contact Rating Max Contact Rating;10W 10W
• Max Switching Voltage 220V DC/AC;Max Switching Current 1.5A;Max Breakdown Voltage 300V DC/AC;Max Carry Current 3A
• Max Contact Resistance 100mOhm;Temperature Rating -10 / +85 C;Float Ball Material P.P;Float Body Material P.P
• Thread Dia(Approx) 9.5mm / 0.374";Switch Body Size 23.3 x 57.7mm / 0.9" x 2.27"(Max D*H);Cable Length 36cm / 14.2"; Body Total Length 57.7mm / 2.27"
• Color White;Net Weight 28g;Package Content 2 x Water Level Sensor

Product Description

About this item Product Name : Water Level Sensor;Model No. : ZP4510;Max Contact Rating : Max Contact Rating;10W : 10W Max Switching Voltage : 220V DC/AC;Max Switching Current : 1.5A;Max Breakdown Voltage : 300V DC/AC;Max Carry Current : 3A Max Contact Resistance : 100mOhm;Temperature Rating : -10 / +85 C;Float Ball Material : P.P;Float Body Material : P.P Thread Dia(Approx) : 9.5mm / 0.374";Switch Body Size : 23.3 x 57.7mm / 0.9" x 2.27"(Max D*H);Cable Length : 36cm / 14.2"; Body Total Length: 57.7mm / 2.27" Color : White;Net Weight : 28g;

Package Content

2 x Water Level Sensor ›
