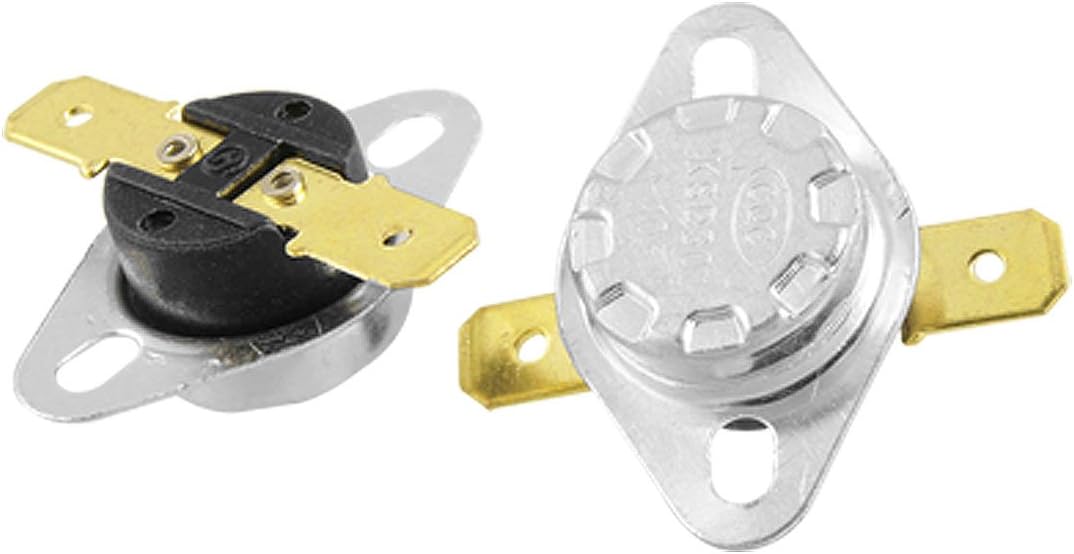

2 Pcs KSD301 105C N.C Temperature Control Switch Thermostat Gold Tone Terminals

Key Features

• Product Name Thermostat;Model KSD301;Action Type Normal Close(N.C.)
• Action Temperature 105 °C;Voltage Current AC250V 10A
• Insulation Resistance 100 MΩ;Circuit Resistance 50 MΩ
• Size 3.3 x 1.1cm/ 1.3" x 0.4" (L*H);Material Metal
• Weight 8g;Package 2 x Temperature Switch Themostat

Product Description

The KSD 301 series thermostat is a fully closed temperature relay with a shell sensing the temperature by contact with the double sheet metals.It enables two contacts to move quickly for the purpose of switching on or off the circuit through the principle that the disc sheet metal deforms under action of temperature and jumps instantaneously at such point of temperature in combination with the mechanical action.This KSD301 thermostat is used either as temperature control and safety limit for household electric appliances and widely applicable for coffee maker, water heater, immersion heaters, electric cookers, microwave ovens, automatic toasters, etc.

Specifications
