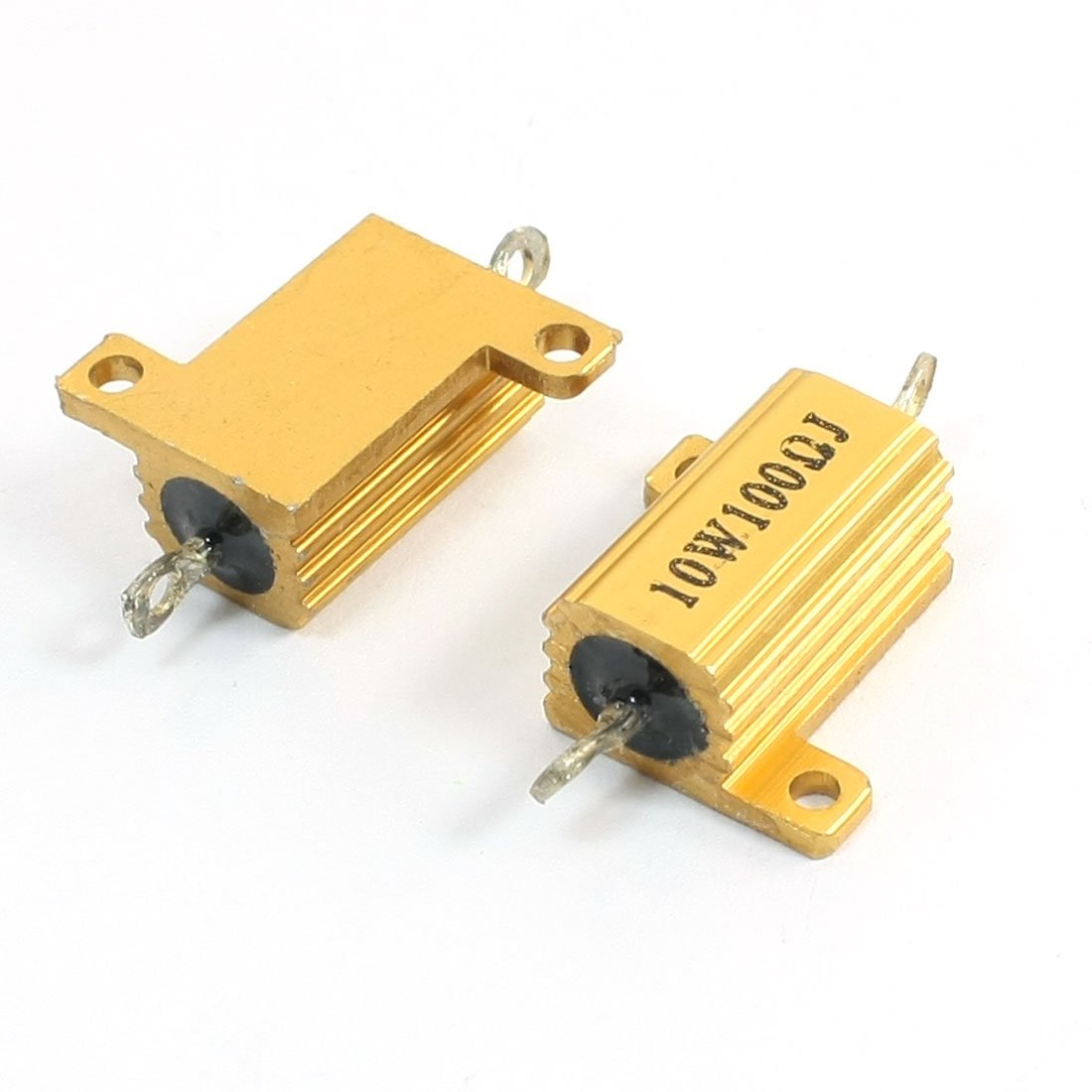

2 Pcs 10Watt 100 Ohm Gold Tone Aluminum Housed Clad Wirewound Resistor

Key Features

• Product Name Aluminum Resistor;Resistance Value 100 Ohm;Power Rating 10W
• Mounting Hole Dia 2.5mm/0.1";Mount Hole to Hole Distance 17mm/0.67";Connect Hole Dia 2mm/0.08"
• Connect Hole to Hole Distance 28mm/1.1";Plate Size 33 x 20mm/1.3" x 0.8"(L*W);Body Size 18 x 11mm/ 0.71" x 0.43" (L*D)
• External Material Aluminum;Color Gold Tone
• Net Weight 11g;Package Content 2 Pcs x Aluminum Resistor

Product Description

With screw holes which can tighten the resistor against a chassis or heat sink for greater heat dissipation. Widely used in Power supply, Transducer, Elevator, and high requirement equipment Industry.
