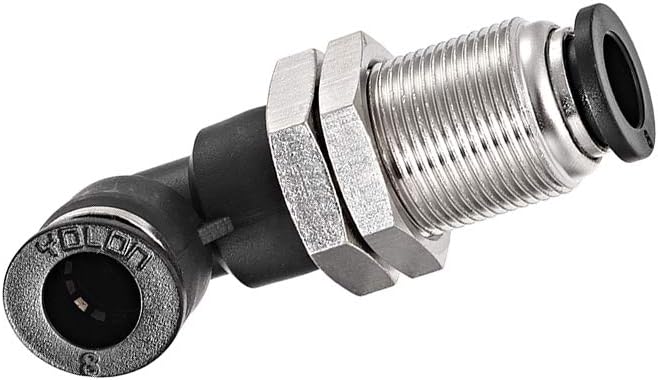

2 End 8mm Tube Push Lock Elbows, M16 L Shape Bulkhead Union Air Fittings

Key Features

• [SIZE] Thread Size*Pitch M16*1.0; 2 End O Ring Inner Diameter (for Tube Outer Diameter) 8 mm; Overall Size 51.5 x 31.5 x 22 mm / 2 x 1.24 x 0.87 inch (L*W*H).
• [FEATURE] Push to connect,after installation, the direction of the tube can be changed freely.
• [EASY to FASTEN] Outside (and Inside where applicable) hexagonal wrench tightening.
• [APPLICATION] Mainly used for air compression systems, vacuum systems, pneumatic systems.
• [NOTE] Make sure that the cutting surface of the pipe is vertical. Please insert the tube into the bottom before use.

Product Description

Feature:Designed for Polyurethane or Nylon tubing.Even after installation, the direction of the tube can be changed freely.2 end O release ring help to connect tube easily by manual, no special tools required.Outside (and Inside where applicable) hexagonal wrench tightening.Applications: Mainly used for air compression systems, vacuum systems, pneumatic systems.Specification:Function: Bulkhead Union Air FittingsMaterial: Plastic, Brass Nickel PlatedThread Size*Pitch: M16*1.02 End O Ring Inner Diameter (for Tube Outer Diameter): 8 mmOverall Size: 51.5 x 31.5 x 22 mm / 2 x 1.24 x 0.87 inch (L*W*H)

Package Content

1 x Quick Fittings
