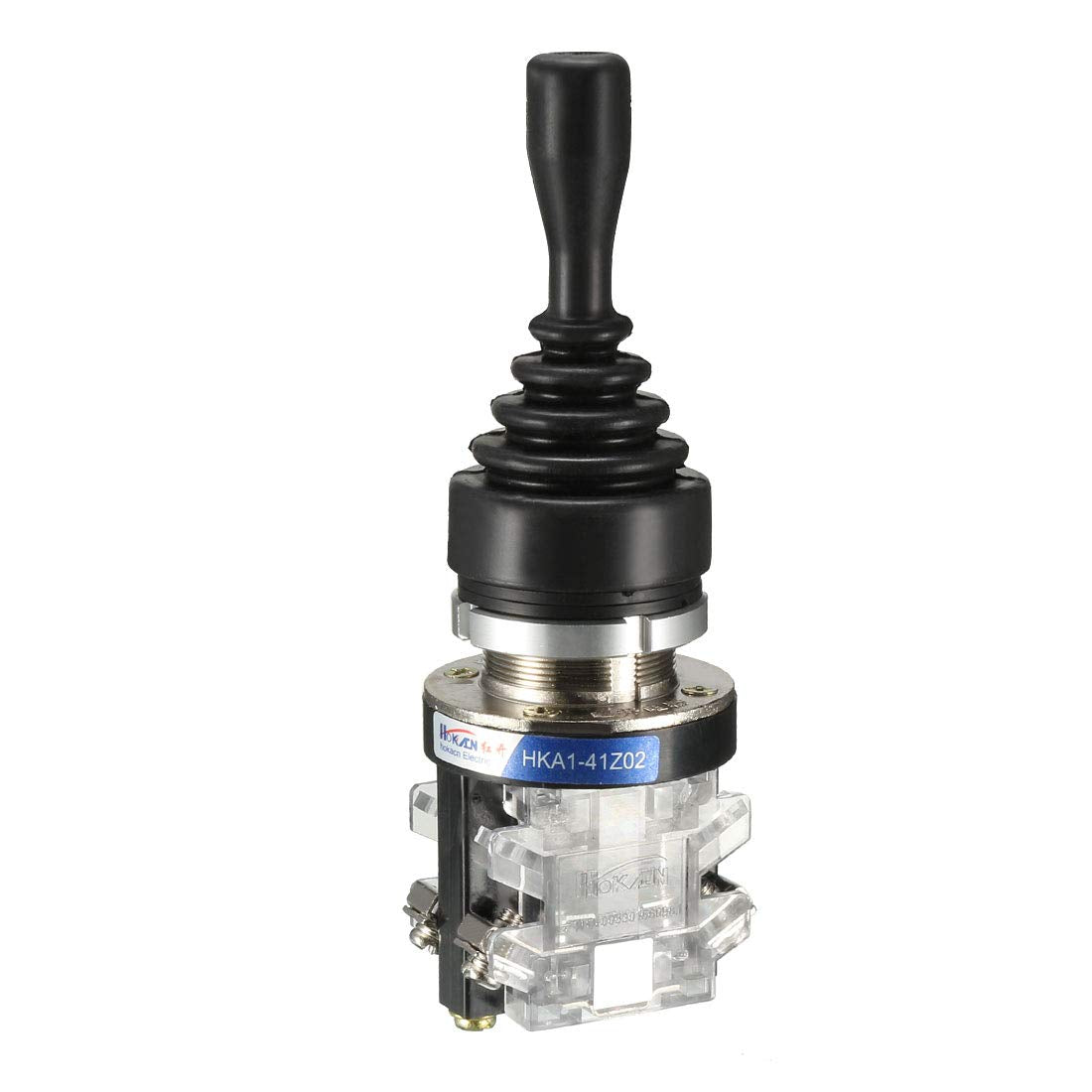

2 Directions Momentary Joystick Switch Transparent Black

Key Features

• Contact Type 2 Directions Momentary ;Terminal Number4
• Rated Voltage 150/250/600V ; Rated Current 15/10/4A ; Declination Angle30 Degree
• Mount Thread Diameter30mm/1.18" ; Lever Length 65mm/ 2.56"
• Overall Size (Approx.)145 x 48mm/5.71" x 1.89"(Height x Outer Diameter)
• Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc.

Product Description

Description

Operate at 2 directions, with the 30 degrees declination of operation handle, momentary type operation.Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc.Please notice the voltage before ordering and make sure it can work in your area. Specification:Product Name: SwitchContact Type: 2 directions MomentaryTerminal Number :4Material:Rubber, Plastic, Electric PartsRated Voltage: 150/250/600VRated Current: 15/10/4ADeclination Angle:30 DegreeMount Thread Diameter:30mm/1.18"Lever Length: 65mm/ 2.56"Overall Size (Approx.) :145 x 48mm/5.71" x 1.89"(Height x Outer Diameter)Net Weight: 207g

Package Content

1 x Switch
