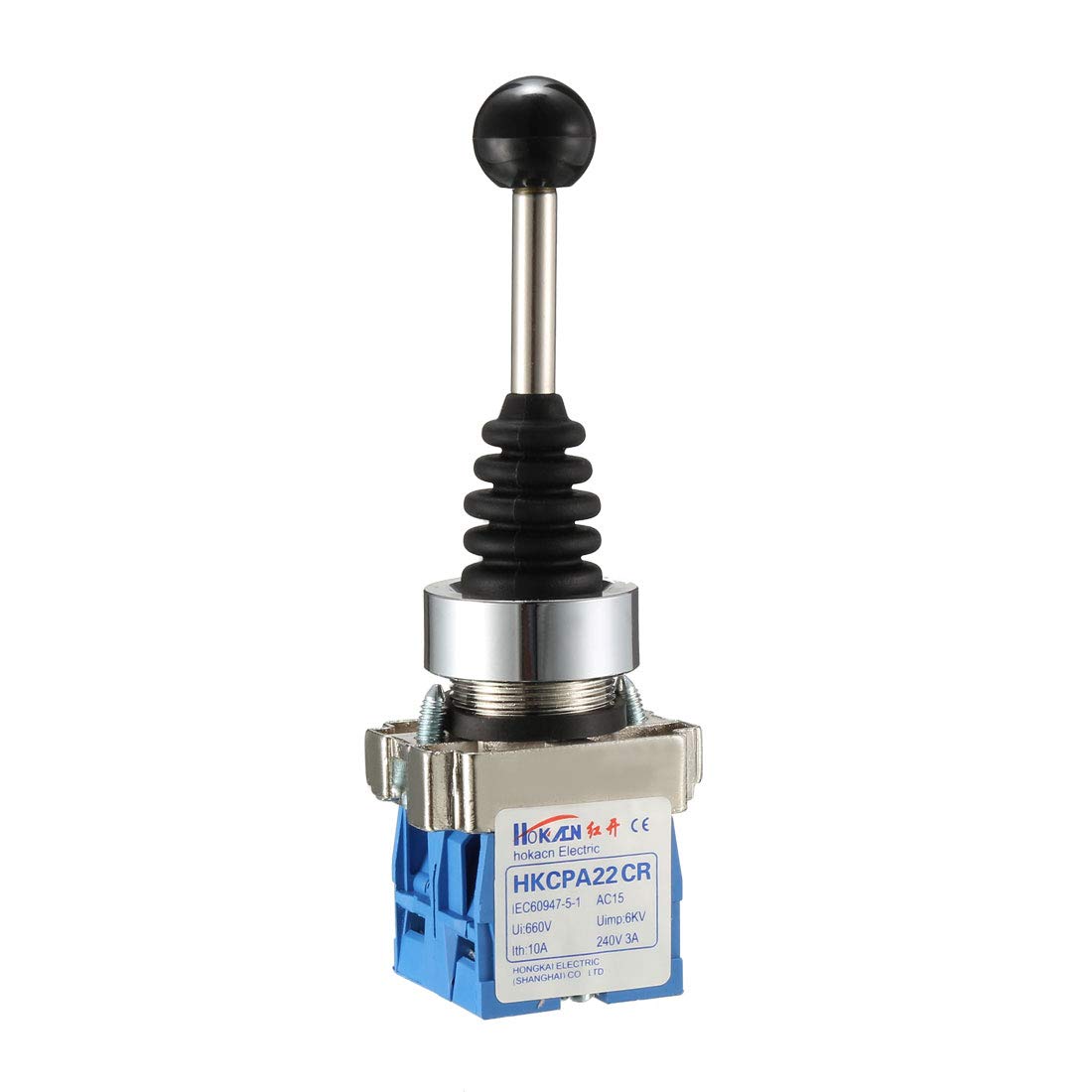

2 Directions Momentary Joystick Switch AC 240V 3A Blue

Key Features

• Contact Type 2 Directions Momentary ;Terminal Number4
• Ui 660V ; Ith 10A ; AC15 6kV ; Rated Voltage 240V ; Rated Current 3A ; Declination Angle30 Degree
• Mount Thread Diameter22mm/0.87" ; Lever Length 66mm/ 2.6"
• Overall Size (Approx.) 12 x 4 x 3cm/4.72" x 1.57" x 1.18"(L*W*H)
• Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc.

Product Description

Description

Operate at 2 directions, with the 30 degrees declination of operation handle, momentary type operation.Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc.Please notice the voltage before ordering and make sure it can work in your area. Specification:Product Name: SwitchContact Type: 2 directions MomentaryTerminal Number :4Material:Rubber, Plastic, Electric PartsUi : 660VIth: 10AAC15: 6kVRated Voltage: 240VRated Current: 3ADeclination Angle:30 DegreeMount Thread Diameter:22mm/0.87"Lever Length: 66mm/ 2.6"Overall Size (Approx.) :12 x 4 x 3cm/4.72" x 1.57" x 1.18"(L*W*H)Net Weight: 121g

Package Content

1 x Switch
