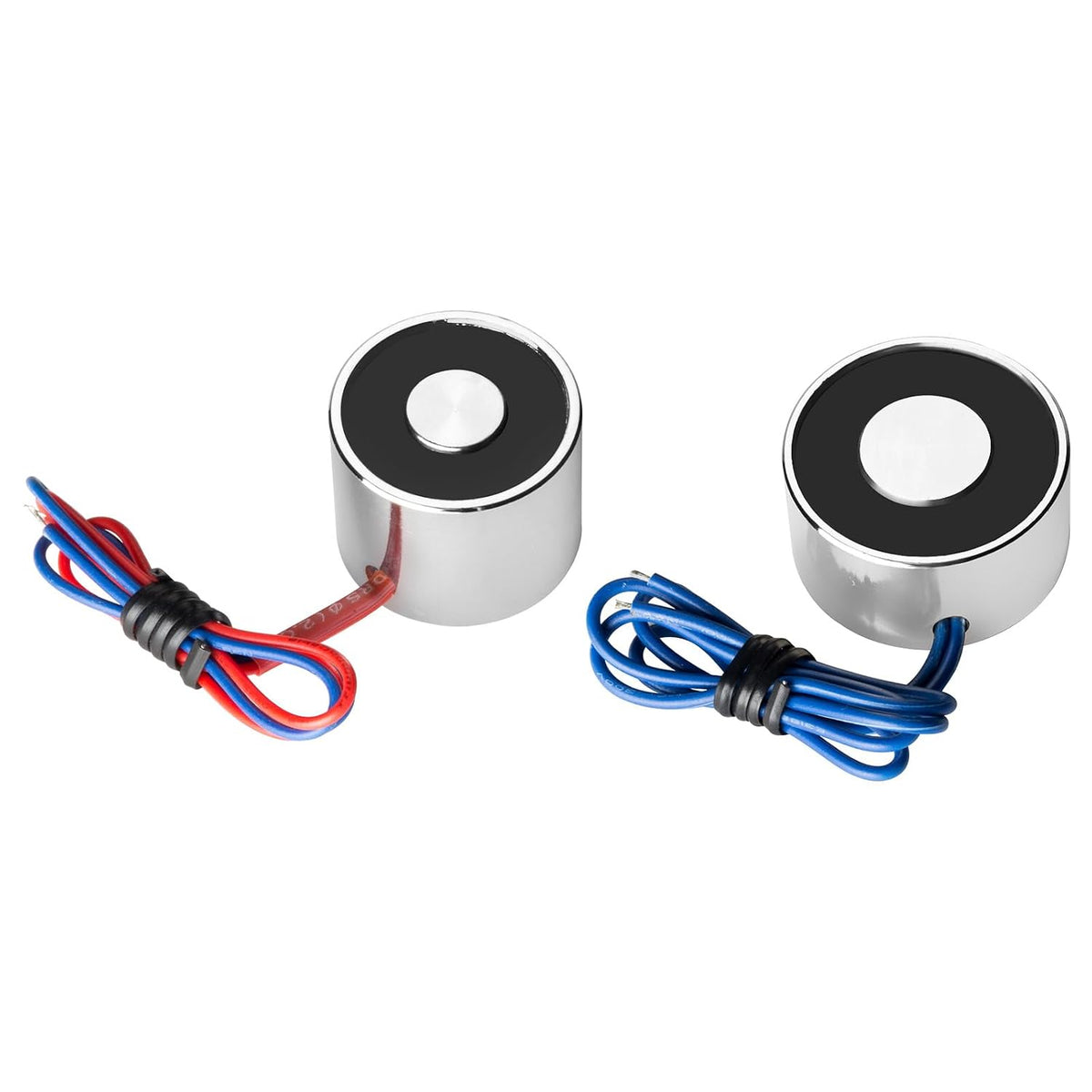

1pcs DC 12V 180N, 1pcs DC 5V 50N, Electric Lifting Magnet Electromagnet Solenoid Lift Holding

Key Features

• Type 1 Input Voltage DC 5V; Peak Force 50N; Duty-cycle 50%; Time Less than 7 minutes
• Type 2 Input Voltage DC 12V; Peak Force 180N; Duty-cycle 50%; Time Less than 7 minutes
• Simple structure, small volume and high adsorption force. Has good temperature stability and insulation, high electrical conductivity.
• Note The Force will be decreased due to long time working, lower voltage and improper sucked object, etc. It is recommended that the actual force is less than 80% of the sucked force on the nameplate.
• Widely use in vending machines, transport equipment, office facility household appliance, mechanical, sorting machine, etc.

Product Description

Specification:Type 1:Material: MetalInput Voltage: DC 5VPeak Force: 50NHolding Force: 37NDuty-cycle: 50%;Time: Less than 7 minutesOverall Size: 25 x 20mm / 0.98" x 0.79"(Dia. *T)Thread size: M4*6Wire Length: 24cm/9. 45"Type 2:Material: Pure IronInput Voltage: DC 12VPeak Force: 180NHolding Force: 135NDuty-cycle: 50%;Time: Less than 7 minutesOverall Size: 34 x 18mm / 1.34" x 0.71"(Dia. T)Thread size: M4*6Wire Length: 24cm/9. 45"

Package Includes

1 x DC 5V 50N Holding Electromagnet1 x DC 12V 180N Holding ElectromagnetFeature:Electric lifting magnetPowerful and compactSmooth and flat surfaceLow consumption and reliableApplications: assembly line, sorting machine, mechanical arm, experimental facility, etc.

Note

The Force will be decreased due to long time working, lower voltage and improper Sucked object, etc.It is recommended that the actual force is less than 80% of the sucked force on the nameplate.Cautions for the use of electromagnets:1. The object absorbed must be a good magnetic material. 2. The suction surface of the electromagnet must be smooth and clean. 3. The thickness of the object is 5mm best. 4. The contact surface of the object must be larger than the adsorption surface of the electromagnet.
