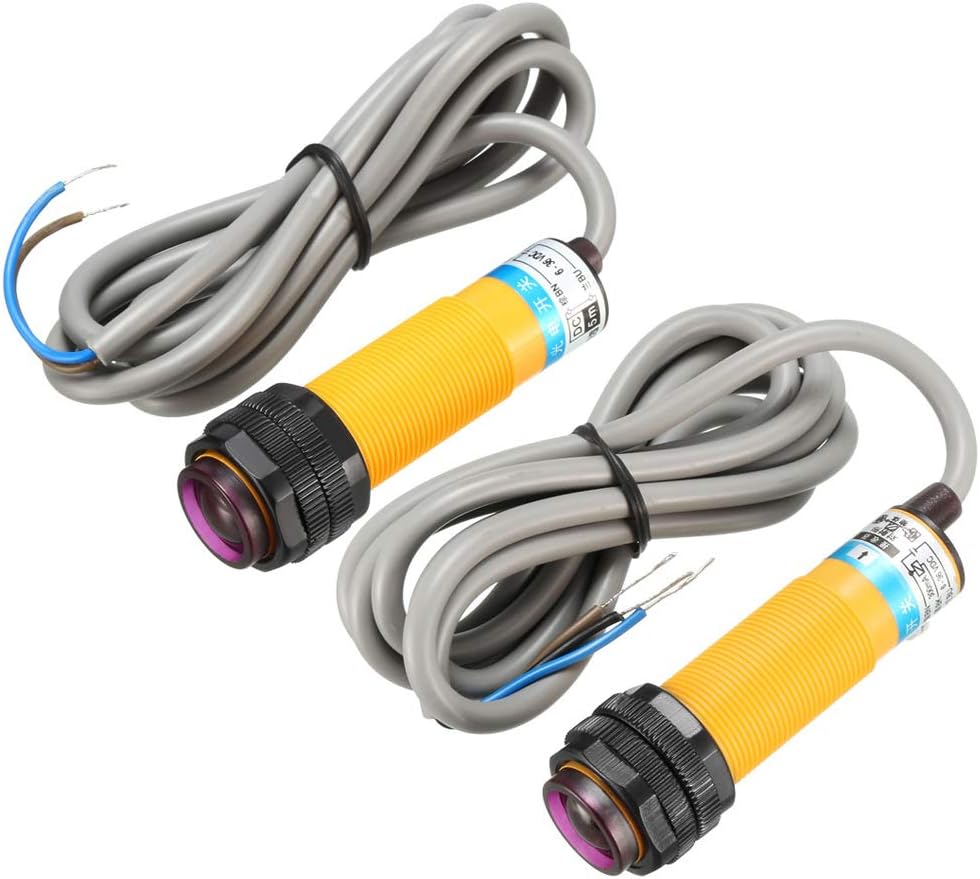

1Pairs 300mA Infrared Ray Through-Beam Reflection Optical Sensor Switch NPN/DC NO DC 6-36V

Key Features

• Model E3F-5L+E3F-5DN1;Sensory Distance 5m (+/-10%)
• Supply Voltage DC 6-36V ;Output Type NPN/DC NO(Normally Open)
• Body Size 23.3 * 70.7mm/0.92" * 2.78'' (Max.D*L)
• Cable Length1.1m/ 43.3'',Color Black, Yellow
• Package Content 1 pair * Photoelectric Switch ( 1 * Transmitter + 1 * Receiver)

Product Description

Product Name: Optical Sensor SwitchSending Light: Infrared RaysModel: E3F-5L+E3F-5DN1Working Voltage: DC 6-36VWorking Current: 300mASensory Distance: 5m(+/-10%)Output Type: NPN/DC NO(Normally Open)Thread Diameter: 17.6mm/0.69"Body Size: 23.3 * 70.7mm/0.92" * 2.78'' (Max.D*L)Cable Length: 1.1m/ 43.3''External Material: PlasticColor: Black, YellowWire type: 3/2 wires

Package Content

1 pair * Photoelectric Switch ( 1 * Transmitter + 1 * Receiver)This Photoelectric Switch is controlled by infrared ray, as an proximity sensor switch, consists of a light emitter and a receiver.Can be applied in security system, manufacturing industry.

Specifications
