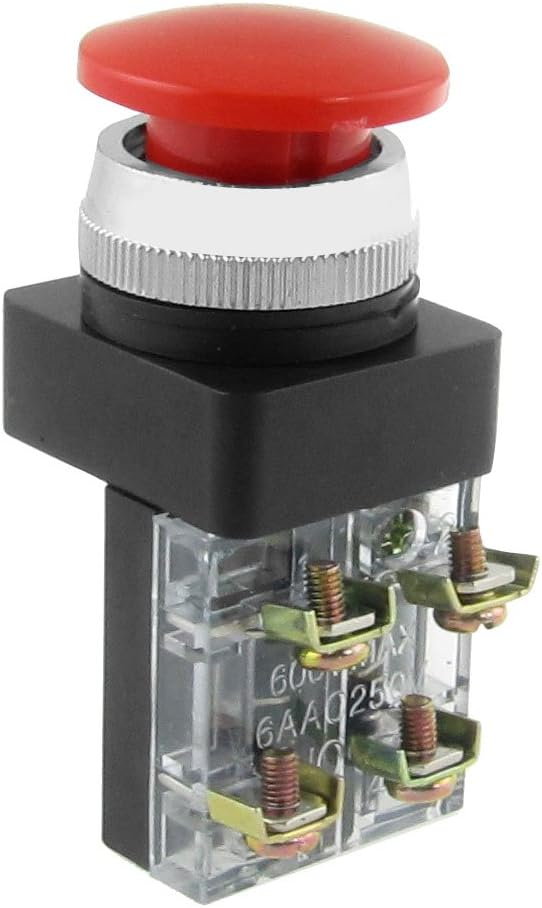

1NO 1NC Emergency Stop Momentary Red Mushroom Push Button Switch

Key Features

• Product Name Push Button Switch;Action Type Momentary;Contact Type 1NO, 1NC
• Rated Voltage AC 250V, 600V Max.;Rated Current 6A;Terminals Quantity 4 Screw Terminals
• Panel Cutout Diameter 30mm / 1.2";Fit Panel Thickness Max 5mm / 0.2";Button Diameter 38mm / 1.5"
• Overall Size 40 x 33 x 76mm/ 1.6" x 1.3" x 3.0"(L*W*H);Material Plastic, Metal;Color Red, Black
• Weight 47g;Package Content 1 x Push Button Switch

Product Description

Features momentary action, 1NO, 1NC contact type, this mushroom cap, 4 screw terminals. Widely used for control of contactor and relay, or other circuit for controlling use.

Specifications
