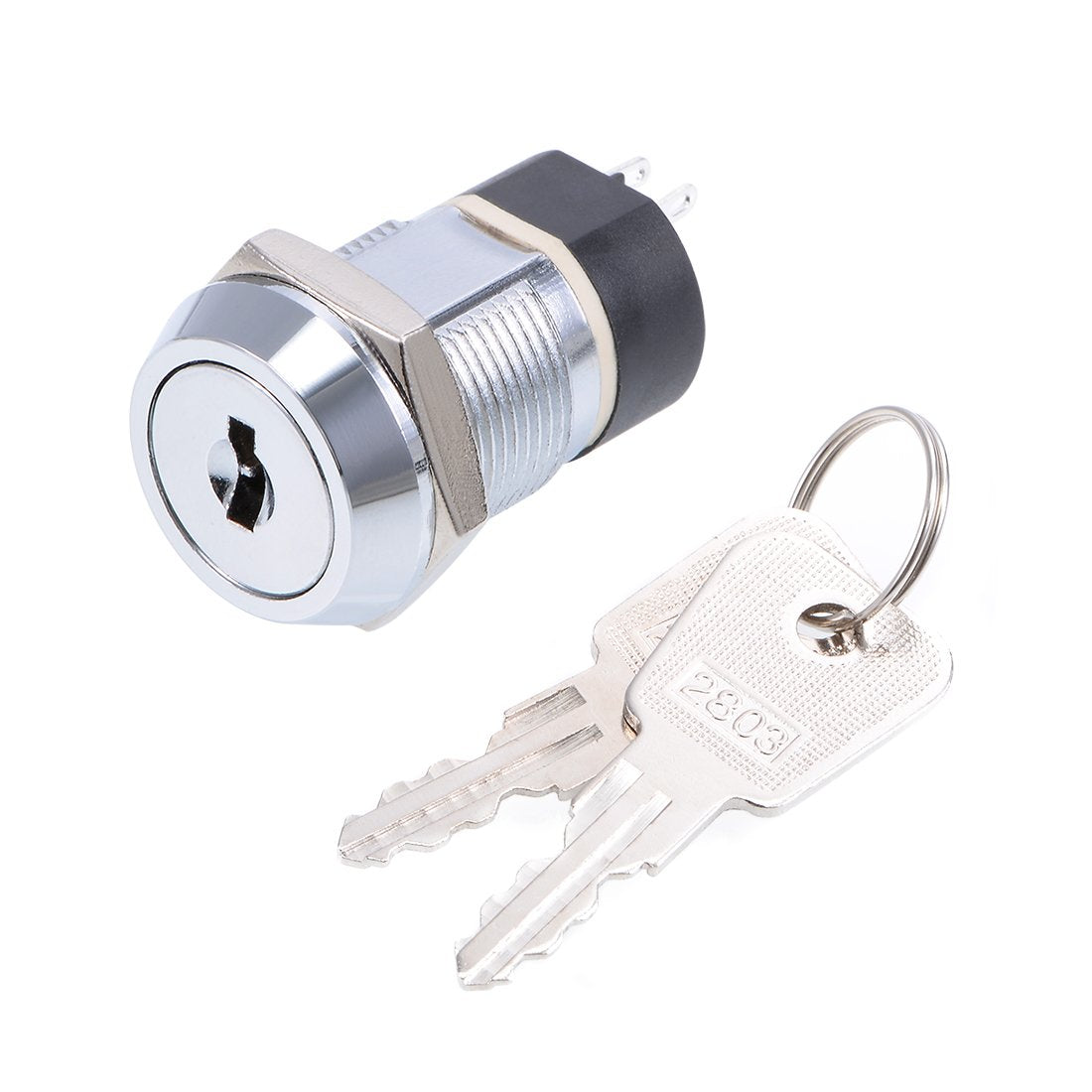

19mm 2 Positions 2NO 2NC Electric Key lock Push Button Switch

Key Features

• 1.Country of Manufacture CHINA; Material Plastic,Metal; Net Weight 49g
• 2.Package Content 1 x Key Push Button Switch / 2 x Keys / 1 x Screw Nut; Main Color Silver; (Rated) Voltage & Current AC 250V/2A AC125V/4A
• 3.Operation Type Locking; Contact Type 2NO 2NC; Light Voltage no light include
• 4.Mounting Hole Dia 19mm / 0.75"; Position 2
• 5.Terminals Quantity 4; Overall Size(Approx) 31.3 x 21.7mm / 1.23" x 0.85" (L*W)

Product Description

Description1.Zinc alloy die cast housing, four terminals, in both positions, (Off-On).2. Keyed can be taken off when the switch stays on or off position.3. Miniature key lock switch for simple locking and switching tasks.

Specifications

Main Color: Silver;(Rated) Voltage & Current: AC 250V/2A AC125V/4AOperation Type: Locking;Contact Type: 2NO 2NC;Light Voltage: no light includeMounting Hole Dia: 19mm / 0.75";Position: 2Terminals Quantity: 4;Overall Size(Approx): 31.3 x 21.7mm / 1.23" x 0.85" (L*W)

Package Content

1 x Key Push Button Switch / 2 x Keys / 1 x Screw Nut;
