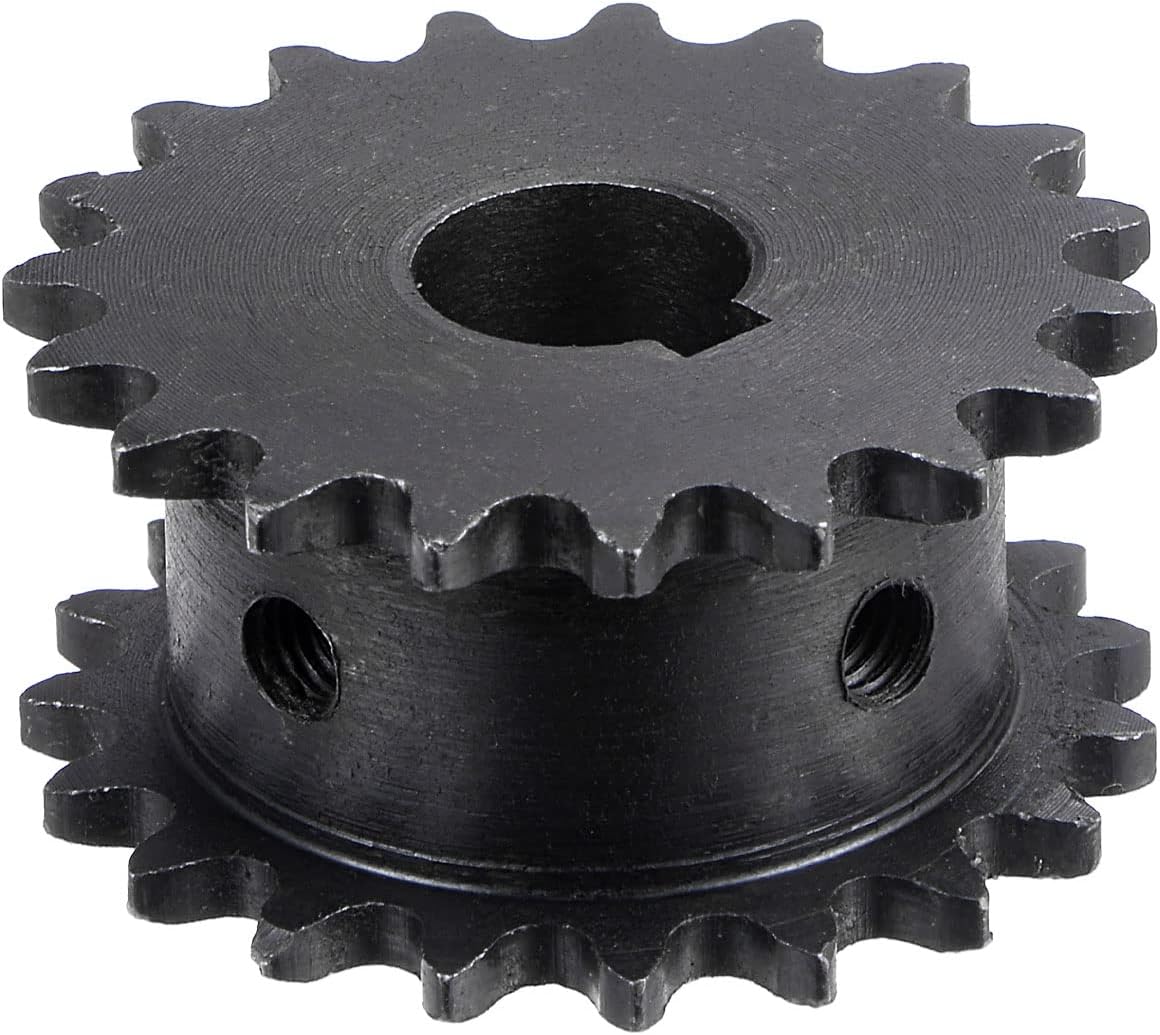

19 Tooth #25 Chain Roller Sprocket, Double Strand 1/4" Pitch, 12mm Bore Black Oxide C45 Carbon Steel with Keyway for ISO 04C Chains

Key Features

• Specifications Number of Teeth 19; Outside Diameter 40mm / 1.57-inch; Total Width 20mm / 0.79-inch; Bore Diameter 12mm / 0.47-inch; Keyway Size 4 x 1.8mm / 0.16 x 0.07-inch(L*W); Pitch 1/4-inch / 6.35mm; Tooth Width 3mm / 0.12-inch; 1 x Chain Sprocket
• Chain Sprockets are normally mounted in a fixed position on a fixed shaft. The keyway shaft can be fixed well, which is convenient to use.
• Double strand sprocket with two sets of teeth for use with double strand chains, which have a higher stability and can support greater loads than single strand chains.
• The product is made of c45 carbon steel, the tooth part high temperature quenching heat treatment, high hardness, wear resistance, long service life, easy to use. Fully black oxide coated, rust resistance.
• Widely used in milling machine, drilling machine or other machinery transmission occasions.

Product Description

Features

1. Chain Sprockets are normally mounted in a fixed position on a fixed shaft. The keyway shaft can be fixed well, which is convenient to use.2. Double strand sprocket with two sets of teeth for use with double strand chains, which have a higher stability and can support greater loads than single strand chains.3. The product is made of c45 carbon steel, the tooth part high temperature quenching heat treatment, high hardness, wear resistance, long service life, easy to use. Fully black oxide coated, rust resistance.4. Widely used in milling machine, drilling machine or other machinery transmission occasions.

Specifications

Material: C45 carbon steelFinish: Black OxideNumber of Teeth: 19Outside Diameter: 40mm / 1.57-inchTotal Width: 20mm / 0.79-inchBore Diameter: 12mm / 0.47-inchKeyway Size: 4 x 1.8mm / 0.16 x 0.07-inch(L*W)Pitch: 1/4-inch / 6.35mmTooth Width: 3mm / 0.12-inch

Package Content

1 x Chain Sprocket
