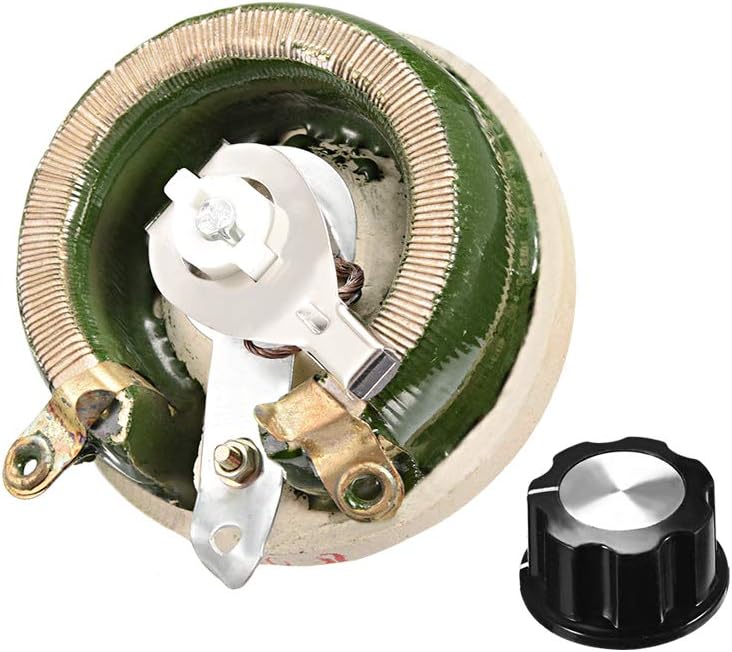

150 Ohm 100W High Power Ceramic Wirewound Potentiometer with Knob Rheostat Variable Resistor

Key Features

• Product Name Rheostat; Knob Yes; Material Ceramic,Metal,Resin; Color Black,Silver Tone,Green; Power Rating 100W; Resistance Value 150 Ohm;
• Tolerance +/- 10%; Total Size 92 x 81.5 x 67mm / 3.62-inch x 3.21-inch x 2.64-inch (L*W*H); Rotary Knob Size 15 x 27mm / 0.59-inch x 1.06-inch (H*D); Shaft Size 67 x 6mm / 2.64-inch x 0.24-inch (L*D);
• Bottom Screw Hex Size 14mm / 0.55-inch; Bottom Thread Diameter M10 / 1 mm(metrisch 60 degree); Bottom Body Base Size 32 x 81.5mm / 1.26-inch x 3.21-inch (T*D);
• Length 50.5mm / 1.99-inch; Number of Mounting Hole 3; Big Mounted Hole Dia 4.4mm / 0.17-inch; Small Mounted Hole Dia 4mm / 0.16-inch;
• Style Knob 100W 150 Ohm; Per Piece Weight 256g; Package Content 1 x Variable Resistor;

Product Description

Widely used in educational modeling, load simulations, industrial machinery RPM adjustment, voltage and current adjustment, instruments, and automated control installations. Also can be used widely as light dimmers and motor speed control, is applicable for arc lamps, pumps, fans and blowers, model or other applications that require high voltage and current. The rheostat is consisted of ceramic core and a resistive wire wrapped to form a toroid coil with axle.

Specifications

Product Name: Rheostat;Knob: Yes;Material: Ceramic,Metal,Resin;Color: Black,Silver Tone,Green;Power Rating: 100W;Resistance Value: 150 Ohm;Rated Power Temperature: + 158 F / + 70 C;Working Temperature: -55 C to +315 C;Tolerance: +/- 10%;Total Size: 92 x 81.5 x 67mm / 3.62-inch x 3.21-inch x 2.64-inch (L*W*H);Rotary Knob Size: 15 x 27mm / 0.59-inch x 1.06-inch (H*D);Shaft Size: 67 x 6mm / 2.64-inch x 0.24-inch (L*D);Bottom Screw Hex Size: 14mm / 0.55-inch;Bottom Thread Diameter: M10 / 1 mm(metrisch 60 degree);Bottom Body Base Size: 32 x 81.5mm / 1.26-inch x 3.21-inch (T*D);Length: 50.5mm / 1.99-inch;Number of Mounting Hole: 3;Big Mounted Hole Dia: 4.4mm / 0.17-inch;Small Mounted Hole Dia: 4mm / 0.16-inch;Style: Knob 100W 150 Ohm;Per Piece Weight: 256g;

Package Content

1 x Variable Resistor;
