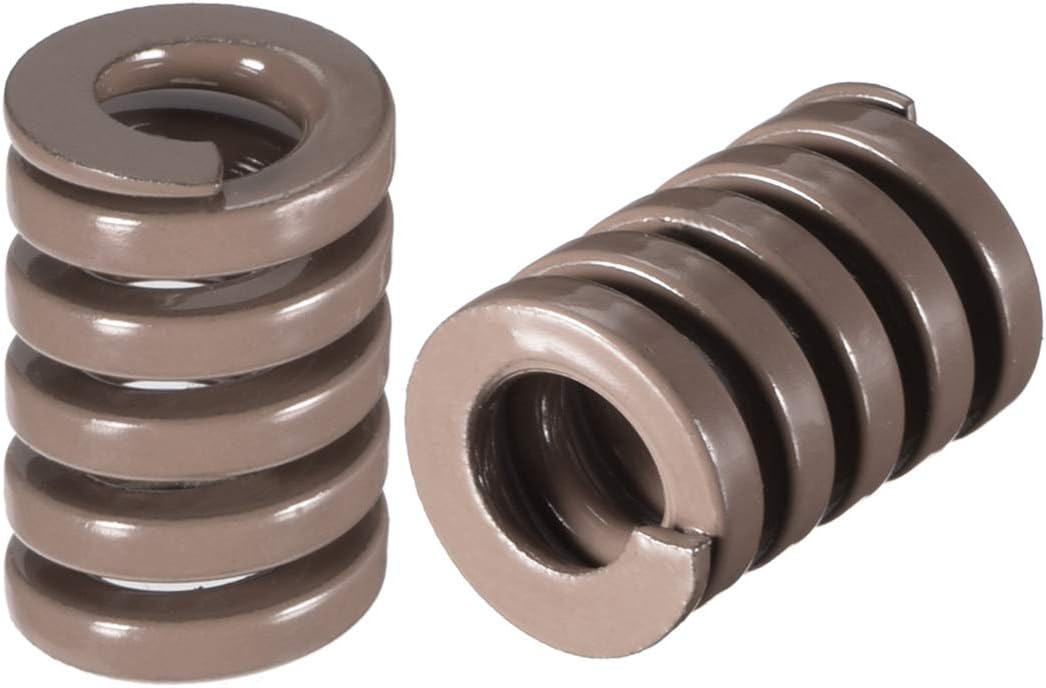

14mm OD 20mm Long Spiral Stamping Extra Heavy load Compression Die Spring Brown 10pcs

Key Features

• Hole Diameter(Outer Diameter) 14mm/0.55"; Inner Diameter （tolerance +0.5mm) 7mm/0.28"; Free Length 20mm/0.79" (+/- 2mm)
• The loading grade of die springs in various colors (from lightest load to extra heavy load) yellow, blue, red, green, brown.
• Rectangular section, closed-end design. Die springs are primarily used in die machinery, for plastic injection.
• In addition, because die springs are well suited for high stress applications, they are also suitable for a variety of other applications as well.
• Package Content 10Pcs x compression die spring, Load Type Extra Heavy load; Color Brown

Product Description

Description

• Rectangular section, closed-end design. Die springs are primarily used in die machinery, For Plastic Injection.* The loading grade of die springs in various colors (from lightest load to extra heavy load): yellow, blue, red, green, brown.* In addition, because die springs are well suited for high stress applications, they are also suitable for a variety of other applications as well. Specification:* Product Name: Compression Die Spring* Load Type: Extra Heavy load* Color: Brown* Hole Diameter(Outer Diameter): 14mm/0.55"* Inner Diameter （tolerance +0.5mm): 7mm/0.28"* Free Length: 20mm/0.79" (+/- 2mm)* Max compression rate: 20%* Material: spring steel* Surface treatment: Paint

Package Content

• Pcs x Compression Die Spring

Specifications
