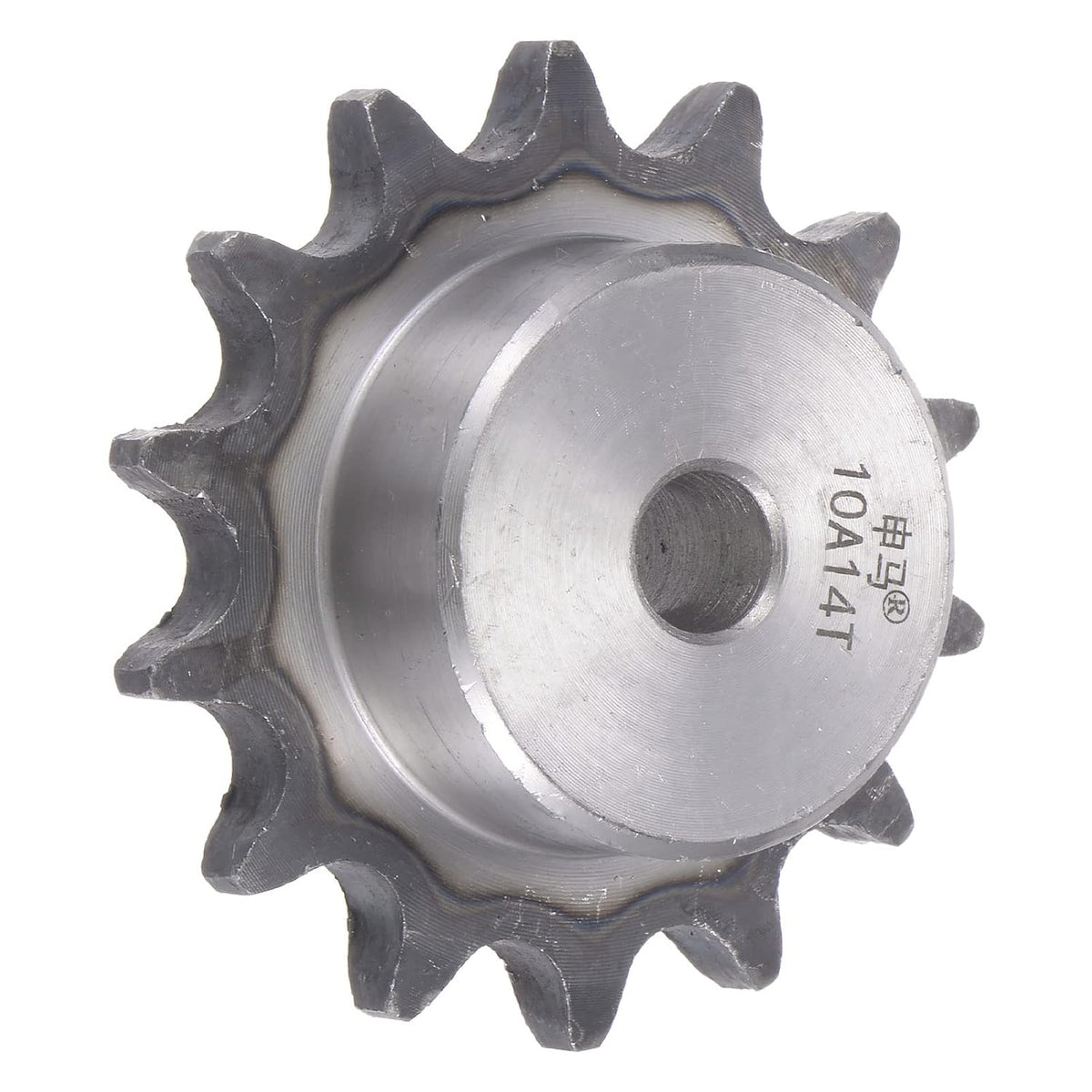

14 Teeth Sprocket Type B Single Strand 5/8" Pitch, 12mm Bore A3 Carbon Steel for 50 Roller Chain

Key Features

• Package Content 1 x Chain Sprocket; Size Number of Teeth 14; Outside Diameter 77mm / 3.03-inch; Bump Width 18mm / 0.71-inch; Total Width 26mm / 1.02-inch; Bore Diameter 12mm / 0.47-inch; Pitch 5/8-inch / 15.875mm; Tooth Width 8mm / 0.31-inch
• Chain Sprockets are normally mounted in a fixed position on a fixed shaft. This sprocket has a hub extension on one side to provide stability. The shaft can be fixed well, which is convenient to use.
• The chain sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. Every roller chain sprocket comes with strong teeth that can latch onto the chain. It is suggested that chain sprockets have at least three teeth in mesh with the chain.
• The product is made of A3 carbon steel. High-frequency quenching treatment of teeth, the surface hardness, wear resistance are significantly improved. The part without quenching retains the original toughness and is easy to further process. It can be processed into different inner diameter sizes according to the requirements of use.
• Widely used in milling machine, drilling machine or other machinery transmission occasions.

Product Description

Package Content

1 x Chain Sprocket; Size: Number of Teeth: 14; Outside Diameter: 77mm / 3.03-inch; Bump Width: 18mm / 0.71-inch; Total Width: 26mm / 1.02-inch; Bore Diameter: 12mm / 0.47-inch; Pitch: 5/8-inch / 15.875mm; Tooth Width: 8mm / 0.31-inch Chain Sprockets are normally mounted in a fixed position on a fixed shaft. This sprocket has a hub extension on one side to provide stability. The shaft can be fixed well, which is convenient to use. The chain sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. Every roller chain sprocket comes with strong teeth that can latch onto the chain. It is suggested that chain sprockets have at least three teeth in mesh with the chain. The product is made of A3 carbon steel. High-frequency quenching treatment of teeth, the surface hardness, wear resistance are significantly improved. The part without quenching retains the original toughness and is easy to further process. It can be processed into different inner diameter sizes according to the requirements of use. Widely used in milling machine, drilling machine or other machinery transmission occasions. ›
