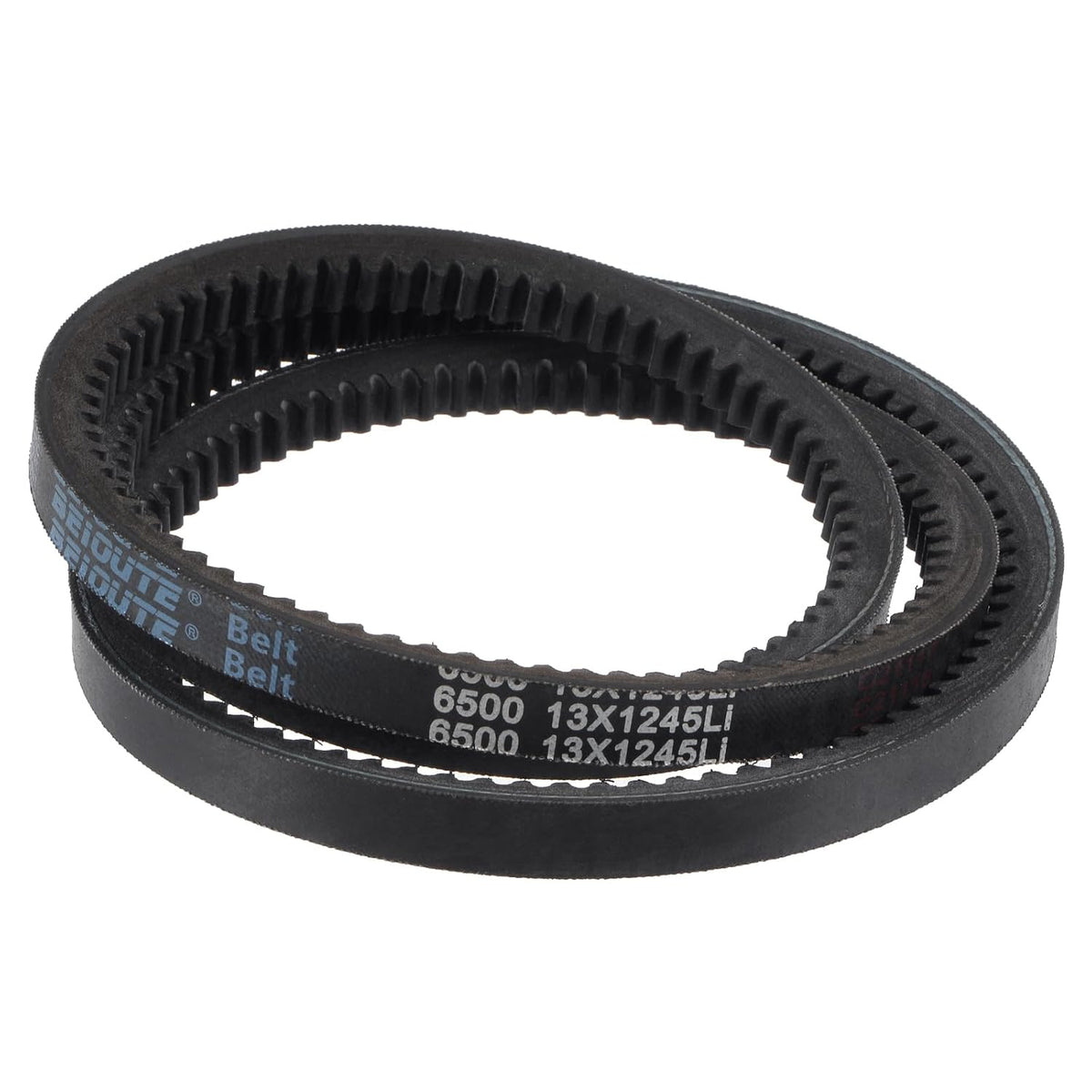

13X1245 Cogged V-Belt, 1245mm Inner Girth 13mm Width 8mm Height Raw Edge Belt

Key Features

• Size Model 13X1245; Inner Girth 1245mm; Top Width 13mm; Thickness 8mm; Angle 40 degree
• Feature Tensile cords made of rigid polyurethane are embedded in the rubber for strength and reinforcement. Neoprene rubber has good resistance to oil, heat and wear.
• Function To link two or more rotating shafts to transmit power in a drive system. Even load distribution on belt drives and good wear resistance.
• Applications for all general drives for drive systems of lawn mower, tractor, snow blower, bandsaw, drill press, box fan, trimmer, etc.
• Notice Confirm the Size before ordering. Accurate measurement of v-belt length should be done with a belt measuring tool or a soft ruler, not a steel ruler. The width and thickness of the belt should also be measured to confirm the type of belt.

Product Description

Descriptions

V-Belts are the most common type of drive belt used for power transmission. They provide the best combination of traction, speed transfer, load distribution, and extended service life.Made of neoprene rubber material, high-temperature resistance, wear resistance, corrosion resistance, high coefficient of friction. The outside fabric wrap is treated with highly oil and heat resistant.Tensile cords made of rigid polyurethane are embedded in the rubber for strength and reinforcement.Fit for many industrial applications, agricultural machinery, engineering machinery, etc.Proper belt tension and pulley alignment should be maintained during operation. Too little tension may cause slippage and wear on the belt and pulleys; too much tension makes the stress on the belt, pulleys and shaft too great.How to measure the length of the required belt:Wrap the rope around the two pulleysMake a markPlace the marked rope on a flat surface and use a tape measure to measure the distance between the two marks, which is the inner circumference of the beltSpecification:Type: A-SectionMaterial: Fiber, Rubber, PUTop Width: 13mmThickness: 10mmOutside Circumference: 1295mmInner Circumference: 1245mm

Package Content

1 x Drive Belt

Specifications
