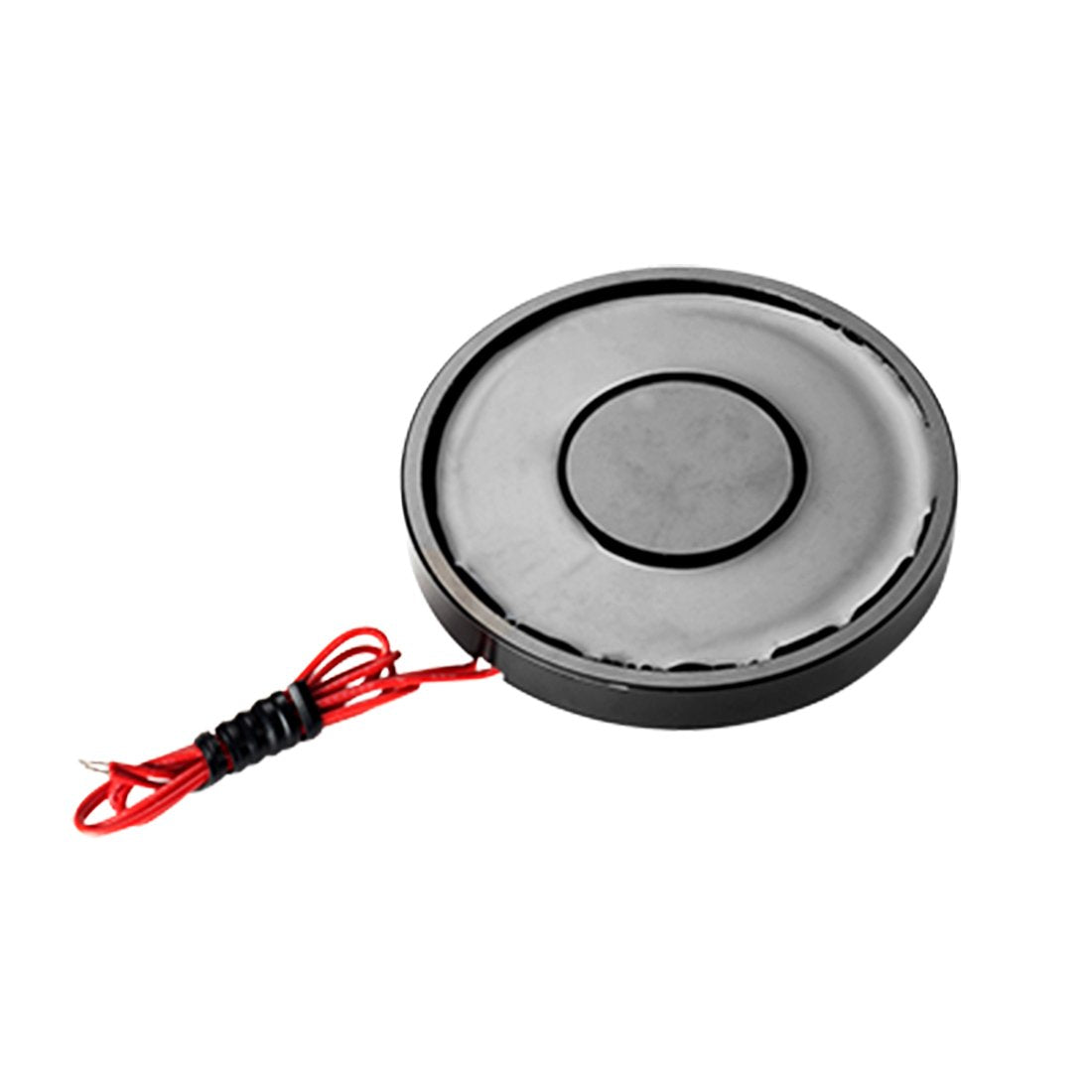

12VDC 200N Electric Lifting Magnet Electromagnet Solenoid Lift Holding

Key Features

• Input Voltage 12V DC; Peak Force 200N Holding Force 150N Duty-cycle (ED%) 50%; Duration timeLess than 7 minutes ; Thread DIA M5*5; Material Pure Iron
• Overall Size 70 x 8 mm /2.8 x 0.3 inch(Dia. *T); Lead Length 24cm/9. 5 inch
• Use QA-1/155 Varnished Wire, withstand high temperature up to 155C, better than the QA-1/130 in the market
• Use UL1332 lead wire, non-deformation withstand high temperature up to 155C
• Use PA66GF30 nylon plastic for framework; high temperature resistance

Product Description

Feature:Electric lifting magnetPowerful and compactSmooth and flat surfaceLow consumption and reliableApplications: assembly line, sorting machine, mechanical arm, experimental facility, etc

Note

The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect.It is recommended that the actual force is less than 80% of the sucked force on the name plate. Specification:Material: Pure IronInput Voltage: 12V DCPeak Force :200NHolding Force : 150NDuty-cycle (ED%) : 50%;Duration time:Less than 7 minutes ;Overall Size : 70 x 8 mm /2.8 x 0.3 inch(Dia. *T)Thread Size : M5*5Lead Length : 24cm/9. 5 inchLead Color: Red / Blue（Random） Cautions for the use of electromagnets:1.The object absorbed must be a good magnetic material. 2.The suction surface of the electromagnet must be smooth and clean. 3.The thickness of the object is 5mm best. 4.The contact surface of the object must be larger than the adsorption surface of the electromagnet

Package Includes

1 x Holding Electromagnet
