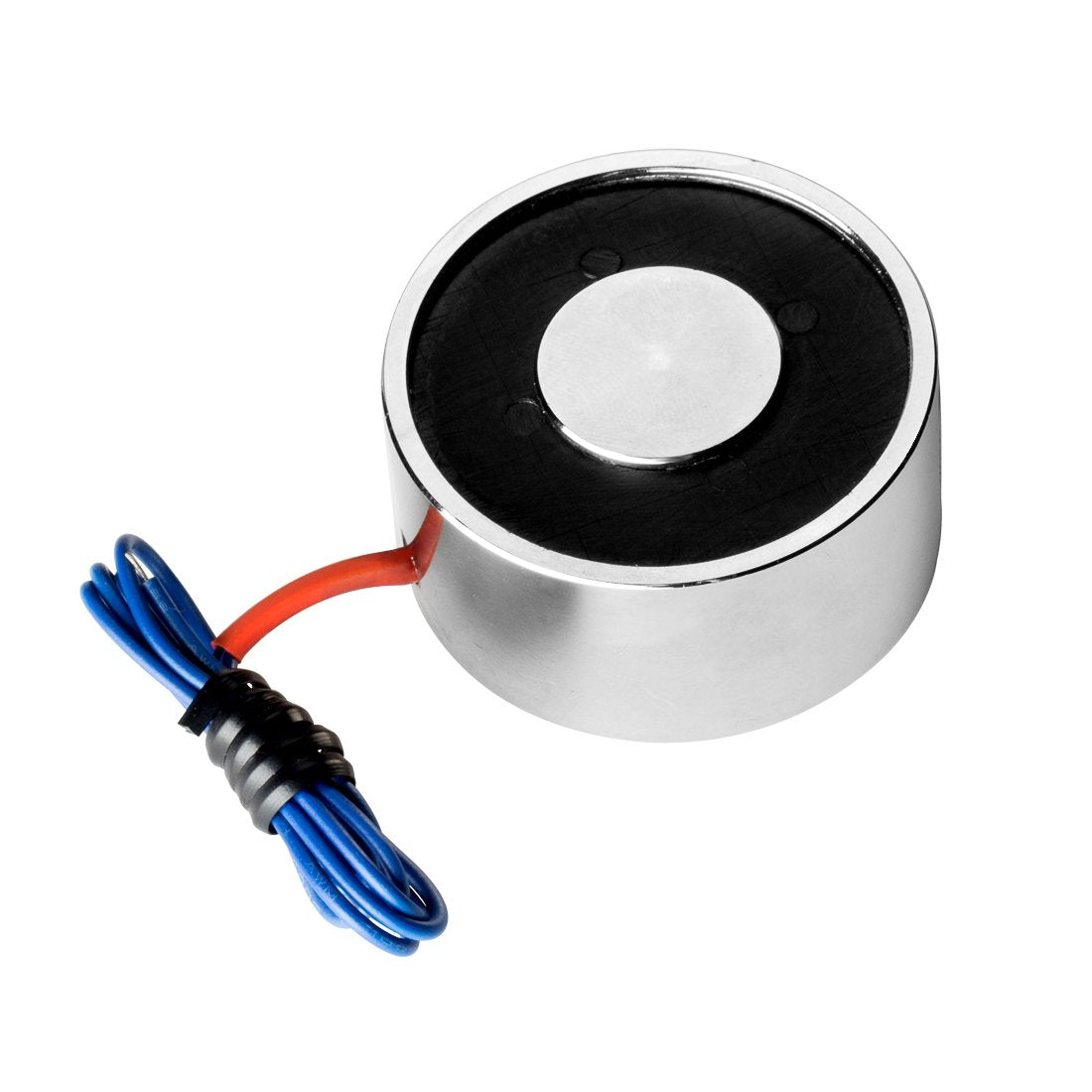

12V DC 250N Electric Lifting Magnet Electromagnet Solenoid Lift Holding

Key Features

• Input Voltage 12V DC ;Peak Force 250N; Holding Force 185N; Duty-cycle 50%; Electric timeLess than 7 minutes ; Thread size M5*8; Material Pure Iron
• Overall Size 40 x 20 mm /1.6 x 0.8 inch(Dia. *T) ; Lead Length 24cm/9. 5 inch
• Use QA-1/155 Varnished Wire, withstand high temperature up to 155C, better than the QA-1/130 in the market
• Use UL1332 lead wire, non-deformation withstand high temperature up to 155C
• Use PA66GF30 nylon for framework; high temperature resistance

Product Description

Feature:Electric lifting magnetPowerful and compactSmooth and flat surfaceLow consumption and reliableApplications: assembly line, sorting machine, mechanical arm, experimental facility, etc

Note

The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect.It is recommended that the actual force is less than 80% of the sucked force on the name plate. Cautions for the use of electromagnets: 1.The object absorbed must be a good magnetic material. 2.The suction surface of the electromagnet must be smooth and clean. 3.The thickness of the object is 5mm best. 4.The contact surface of the object must be larger than the adsorption surface of the electromagnet Specification:Material: MetalInput Voltage: 12V DCPeak Force :250NHolding Force : 185NDuty-cycle: 50%;Electric time:Less than 7 minutes ;Overall Size : 40 x 20 mm /1.6 x 0.8 inch(Dia. *T)Thread DIA : 5mmLead Length : 24cm/9. 5 inch

Package Includes

1 x Holding Electromagnet
