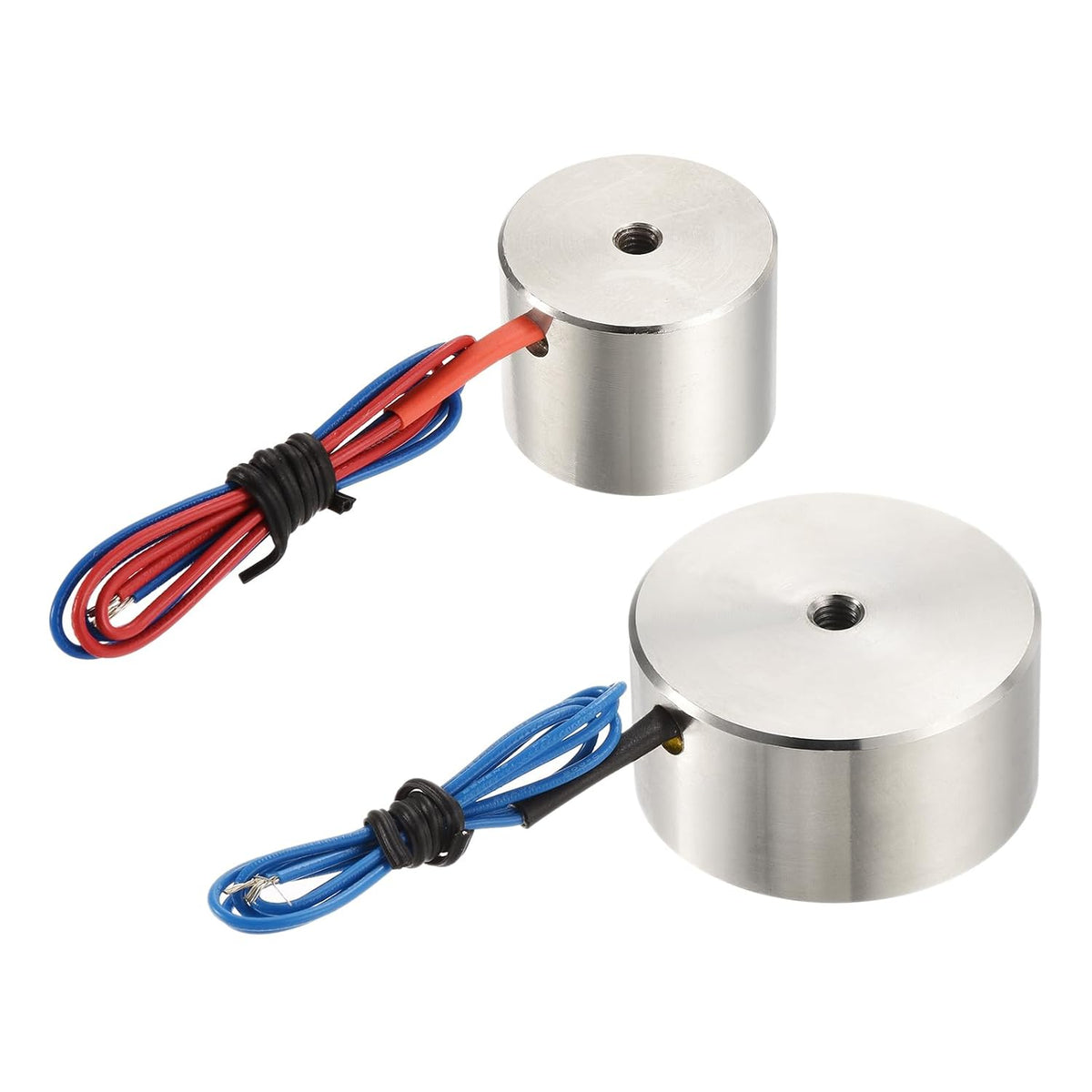

12V DC 250N and 5V DC 50N Electric Lifting Magnet Electromagnet Solenoid Lift Holding

Key Features

• Input Voltage 12V DC, Peak Force 250N, Holding Force 185N, Thread size M5*8, Material Pure Iron, Input Voltage 5V DC, Peak Force 50N, Holding Force37N, Duty-cycle 50%, Time Less than 7 minutes, Thread size M4*6, Material Pure Iron
• Overall Size 1 40 x 20 mm /1.6 x 0.8 inch(Dia. *T) ; Lead Length 24cm/9. 5 inch; Overall Size 2 25 x 20 mm / 1 x 0.8 inch(Dia. *T); Wire Length 24cm/9. 5 inch
• Electric lifting magnet; Powerful and compact; Smooth and flat surface; Low consumption and reliable; Applications assembly line, sorting machine, mechanical arm, experimental facility, etc
• Cautions for the use of electromagnets 1.The object absorbed must be a good magnetic material; 2.The suction surface of the electromagnet must be smooth and clean; 3.The thickness of the object is 5mm best; 4.The contact surface of the object must be larger than the adsorption surface of the electromagnet
• Note The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect. It is recommended that the actual force is less than 80% of the sucked force on the name plate

Product Description

Feature:Electric lifting magnetPowerful and compactSmooth and flat surfaceLow consumption and reliableApplications: assembly line, sorting machine, mechanical arm, experimental facility, etc.

Note

The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect.It is recommended that the actual force is less than 80% of the sucked force on the name plate. SpecificationDuty-cycle : 50%Time:Less than 7 minutes Lead Length : 24cm/9. 5 inch12V DCMaterial: Pure IronInput Voltage: 12V DCPeak Force :250NHolding Force : 185NOverall Size : 40 x 20 mm /1.6'' x 0.8'' (Dia. *T)Thread size : M5*85V DCMaterial: MetalInput Voltage: 5V DCPeak Force :50NHolding Force :37NOverall Size : 25 x 20 mm / 1'' x 0.8''(Dia. *T)Thread size : M4*6Package Contents (2pcs in total): 1 Piece Holding Electromagnet for Each Size
