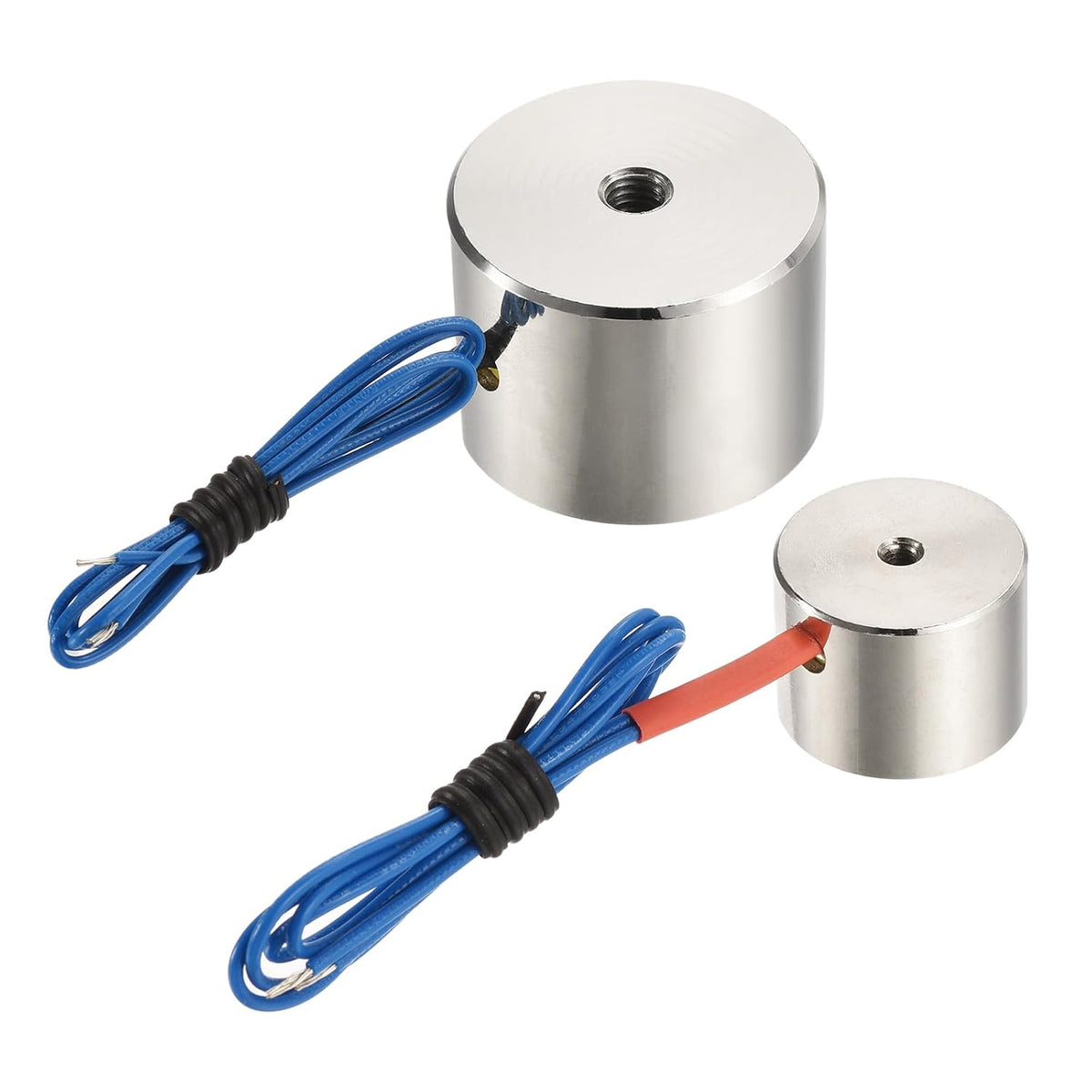

12V DC 200N and 12V DC 25N Electric Lifting Magnet Electromagnet Solenoid Lift Holding

Key Features

• Input Voltage 12V DC, Peak Force 200N, Holding Force 150N; Input Voltage 12V DC, Peak Force 25N, Holding Force 18.5N, Thread size M3*6, Duty-cycle 50%, Time Less than 7 minutes
• Overall Size 1 34 x 25 mm / 1.3 x 1inch(Dia. *T); Overall Size 2 20 x 15 mm / 0.8 x 0.6 inch(Dia. *T)
• Electric lifting magnet; Powerful and compact; Smooth and flat surface; Low consumption and reliable; Applications assembly line, sorting machine, mechanical arm, experimental facility, etc
• Cautions for the use of electromagnets 1.The object absorbed must be a good magnetic material; 2.The suction surface of the electromagnet must be smooth and clean; 3.The thickness of the object is 5mm best; 4.The contact surface of the object must be larger than the adsorption surface of the electromagnet
• Note The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect. It is recommended that the actual force is less than 80% of the sucked force on the name plate

Product Description

Feature:Electric lifting magnetPowerful and compactSmooth and flat surfaceLow consumption and reliableApplications: assembly line, sorting machine, mechanical arm, experimental facility, etc.

Note

The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect.It is recommended that the actual force is less than 80% of the sucked force on the name plate. SpecificationDuty-cycle : 50%Time:Less than 7 minutes Lead Length : 24cm/9. 5 inchSize 1:Material: Pure IronInput Voltage: 12V DCPeak Force :200NHolding Force : 150NOverall Size : 34 x 25 mm / 1.3 x 1inch(Dia. *T)Thread size : M6*25Size 2:Material: MetalInput Voltage: 12V DCPeak Force: 25NHolding Force: 18.5NOverall Size : 20 x 15 mm / 0.8 x 0.6 inch(Dia. *T)Thread size : M3*6

Package Includes

Package Contents (2pcs in total): 1 Piece Holding Electromagnet for Each Size
