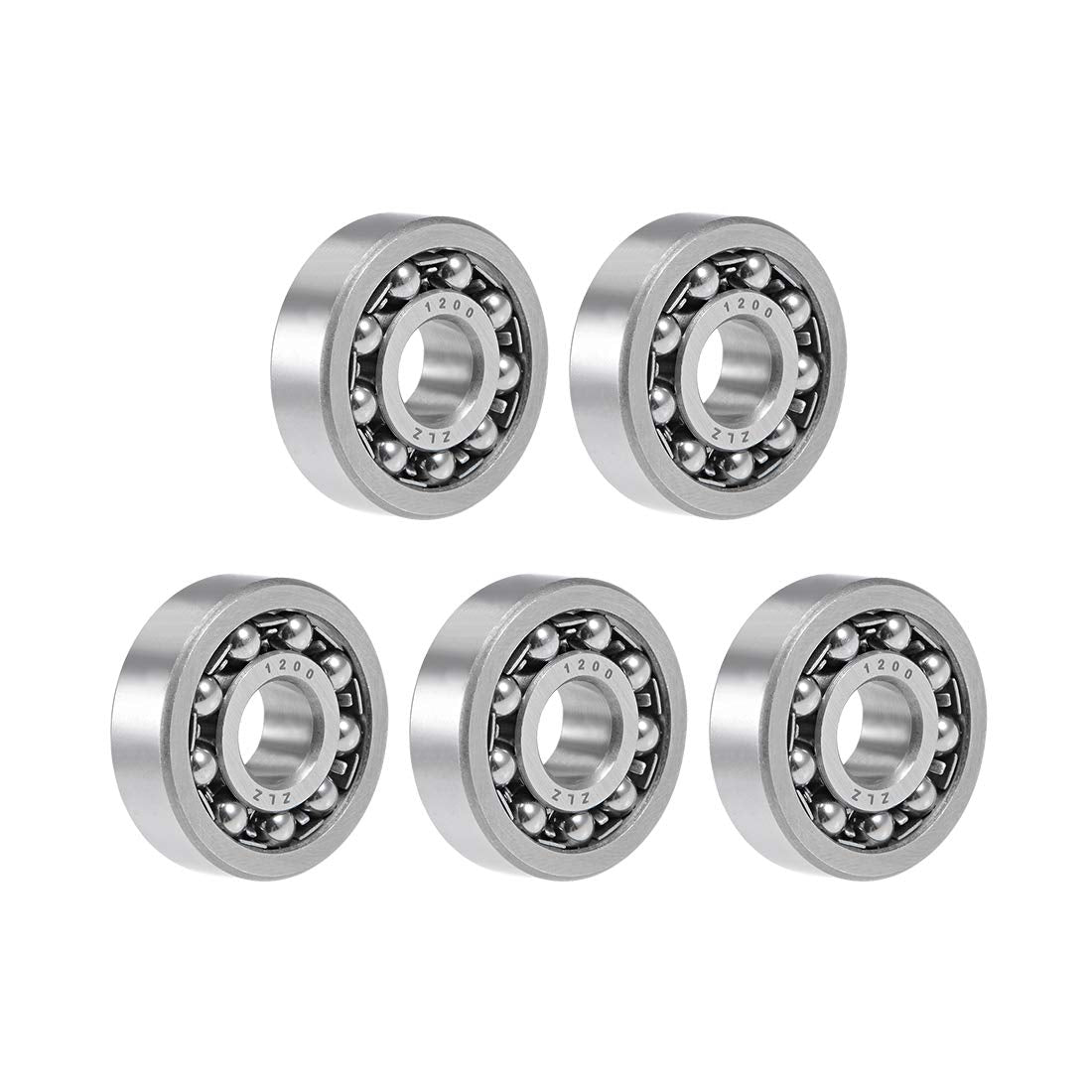

1200 Self Aligning Bearing 10x30x9mm Ball Bearings 5pcs

Key Features

• 1200 (I.D. 10mm, O.D. 30mm, Width 9mm)
• Dual row self aligning bearing for accommodate static and dynamic misalignment
• Self-aligning ball bearings generate less friction than any other type of rolling bearing
• Very loose conformity between balls and outer ring keeps friction and frictional heat at low levels
• Self-aligning ball bearings can reduce noise and vibration levels, for example, in fans

Product Description

Description

-Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring.-Self Aligning Ball Bearing has a spherical outer ring raceway, the balls and cage continue to rotate.-This type of bearings is suitable when the displacement of the centers around which the shaft and housing rotate and shaft deflection are likely to occur.Specification:Bearing No.: 1200Material: Chrome SteelInner Diameter: 10mmOuter Diameter: 30mmWidth: 9mmDynamic Load Ratings: 5.5kNStatic Load Ratings: 1.2kN

Specifications
