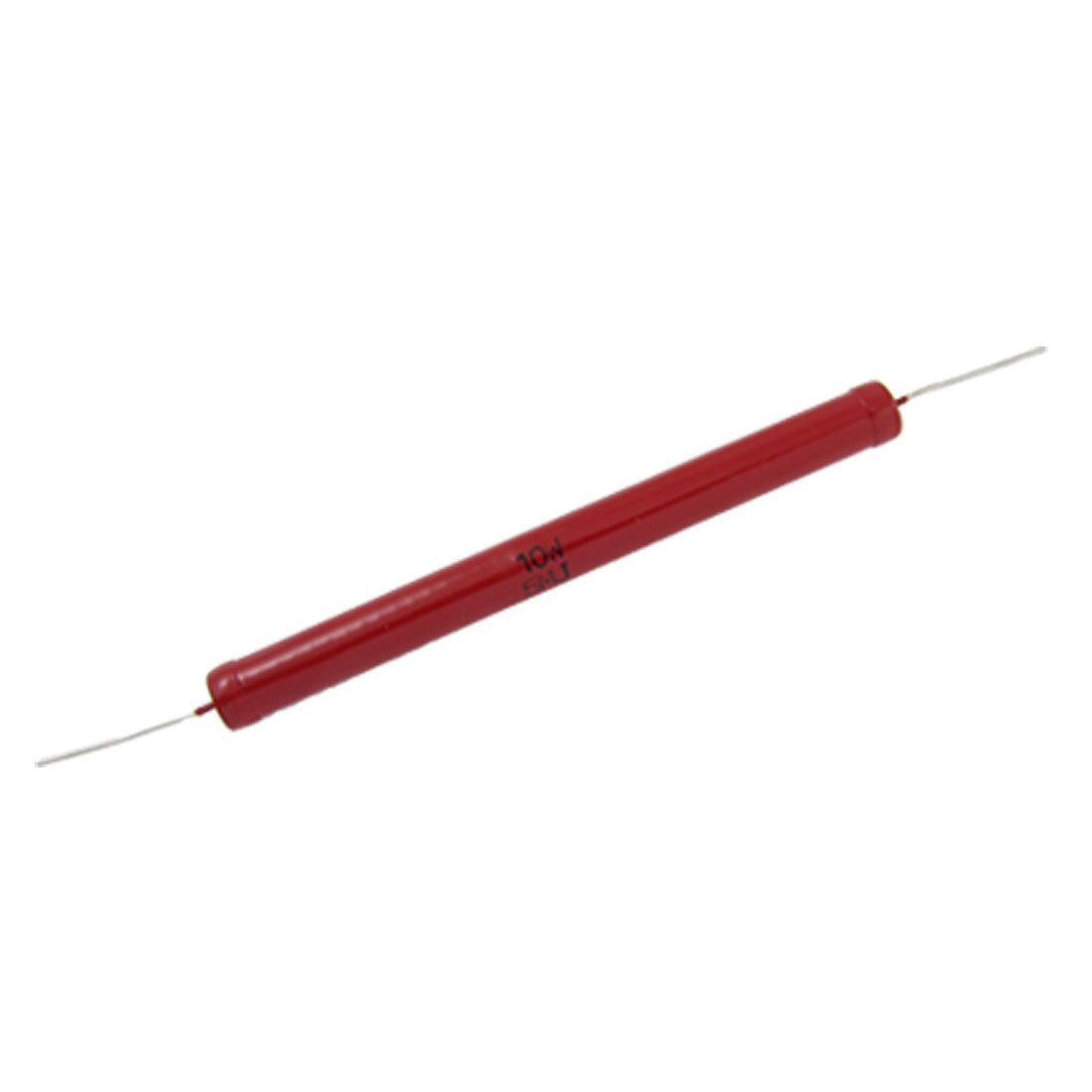

10W Power Rating 25M Ohm High Voltage Glaze Resistor Tolerance 5%

Key Features

• Product Name Glass Glaze Film Resistor; Power Rating 10W; Resistance Value 25M Ohm
• Resistance Tolerance +/-5%; Pin Size 25 x 1mm/1" x 0.039"(L*Diameter)
• Body Dimension 101 x 9mm/4" x 0.35"(L*Diameter)
• Material Glass Glaze, Metal; Color Red; Weight 18g
• Package Content 1 x Glass Glaze Film Resistor

Product Description

Can be used for AC and DC or impulse circuit and/or high-voltage apparatus.Suitable for Impulse voltage generators, Arc furnace damping, Energy research, Pulse modulators, Capacitor crowbar circuits, High voltage snubber circuits and EMI/lightning supression.

Specifications
