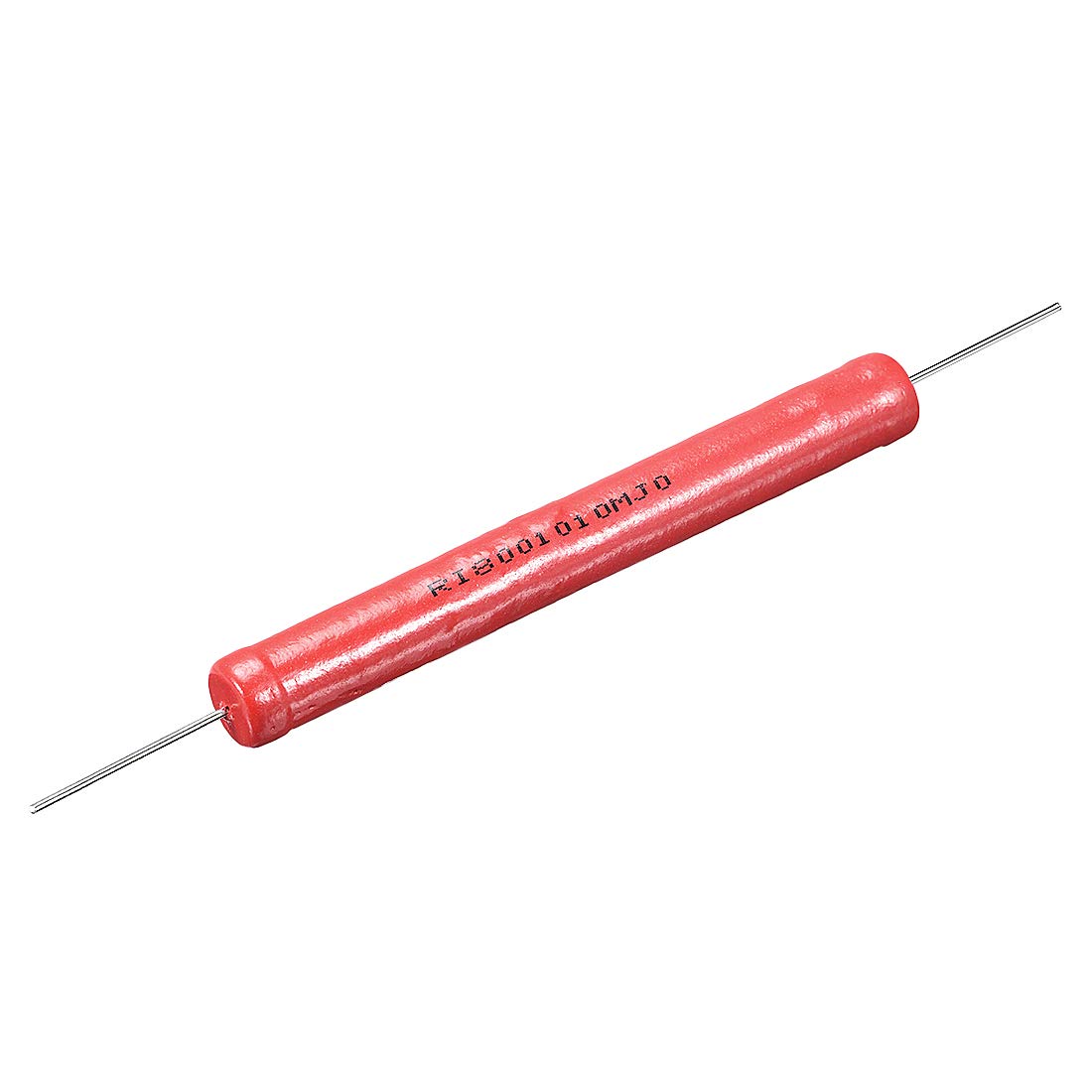

10W Power Rating 10M Ohm High Voltage Glass Glaze Electric Film Resistor

Key Features

• Power Rating 10W; Resistance Value 10M Ohm.
• Pin Size 26 x 1mm/ 1" x 0.039"(L*Diameter); Body Dimension 102 x 12mm/ 3.98" x 0.47"(L*Diameter).
• High precision,Low noise,Automatic insertion is applicable.
• Suitable for impulse voltage generators, Arc furnace damping, energy research, pulse modulators, capacitor crowbar circuits, high voltage snubber circuits and EMI/Lightning suppression.
• Package Content 1 x Glass Glaze Film Resistor.

Product Description

Descriptions

• This resistor can be used for AC and DC or impulse circuit and/or high-voltage apparatus.* Suitable for impulse voltage generators, Arc furnace damping, energy research, pulse modulators, capacitor crowbar circuits, high voltage snubber circuits and EMI/Lightning suppression.

Specifications

• Product Name: Glass Glaze Film Resistor* Power Rating: 10W* Resistance Value: 10M Ohm* Resistance Tolerance: +/-5%* Pin Size: 26 x 1mm/ 1" x 0.039"(L*Diameter)* Body Dimension: 102 x 12mm/ 3.98" x 0.47"(L*Diameter)* Material: Glass Glaze, Metal* Color: Red

Package Content

• x Glass Glaze Film Resistor
