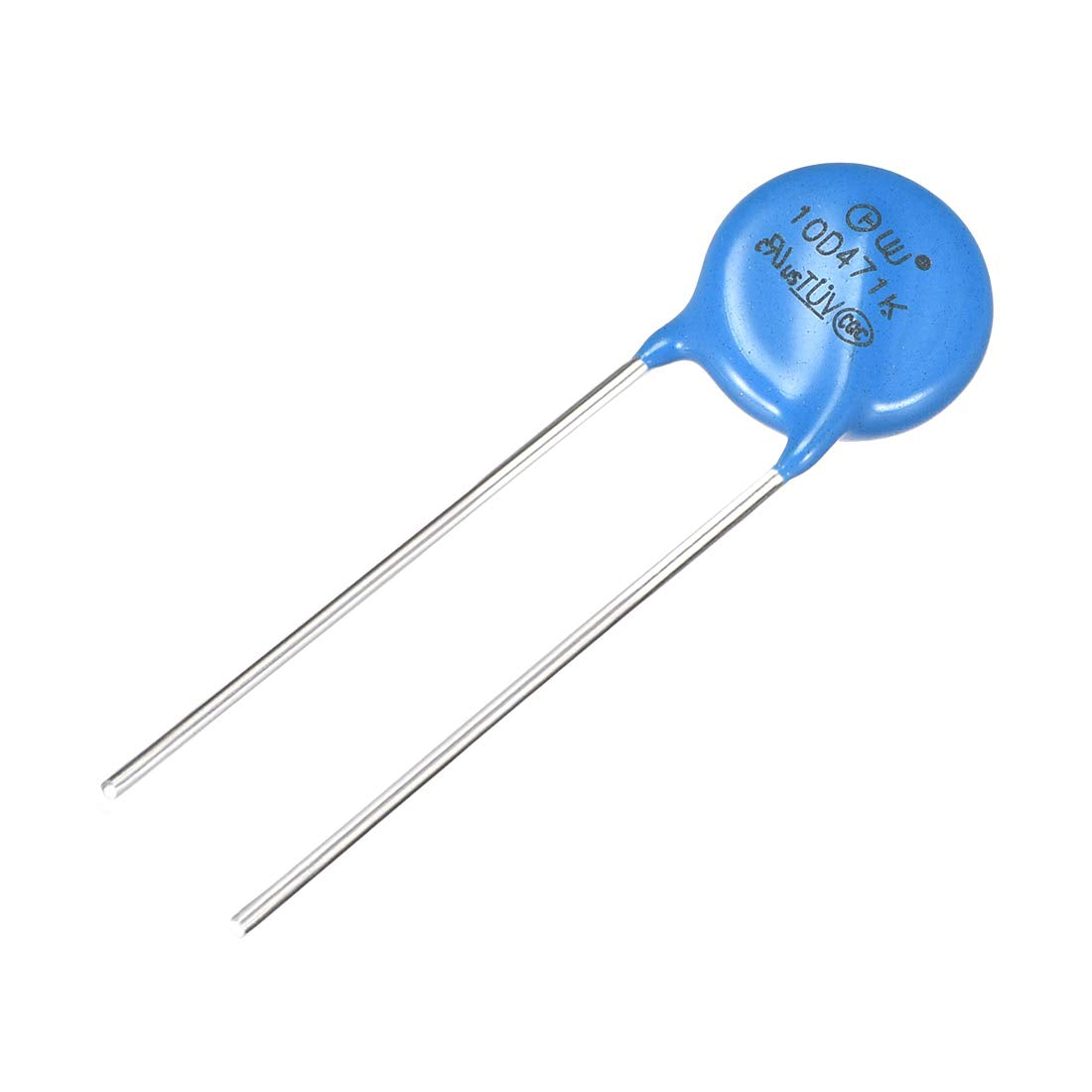

10Pcs Voltage Dependent Resistors AC 300V 10D471K Radial Lead Disc Varistors

Key Features

• Model 10D471K; Max. Allowable Voltage AC 300V; DC 385V; Varistor Voltage 470V ±10%
• Max. Clamping Voltage (8/20 μS) 775V; Max. Clamping Current (8/20 μS) 25A
• Lead Size 24 x 0.7mm / 0.94" x 0.03" (L*D); Lead Spacing 7.5mm / 0.3"; Lead Type Straight
• Specific epoxy coated disc construction with radial leads, long life use.
• Voltage Dependent Resistor is designed to protect equipment against transient voltage spikes.

Product Description

Specifications

Model: 10D471KMax. Allowable Voltage: AC 300V; DC 385VVaristor Voltage: 470V ±10%Max. Clamping Voltage (8/20 μS): 775V; Max. Clamping Current (8/20 μS): 25AMax. Peak Current (8/20 μS) : 2500ARated Power: 0.4W; Max. Energy: 70JTypical Capacitance : 259pF (1kHz)Lead Type: StraightLead Size: 24 x 0.7mm / 0.94" x 0.03" (L*D); Lead Spacing : 7.5mm / 0.3"Body Size: 11 x 3.5mm / 0.43" x 0.14" (D*T)Fit Climate Type: 40/85/56Material: Epoxy, ZnO; Color: Blue

Package Content

10 x Voltage Dependent Resistors

Descriptions

1.Specific epoxy coated disc construction with radial leads, long life use.2.The Voltage Dependent Resistor is designed to protect equipment against transient voltage spikes.3.Connected directly across the power supply rails. When a voltage spike is encounted, the varistor rapidly changes impedance from its normal high impedance state to a very low level in standby mode.4.Can permit absorbtion of the unwanted high voltage and protect voltage sensitive components and circuits.5.Widely used in power supply, industrial equipment, lighting products, electronics and home appliance etc.
