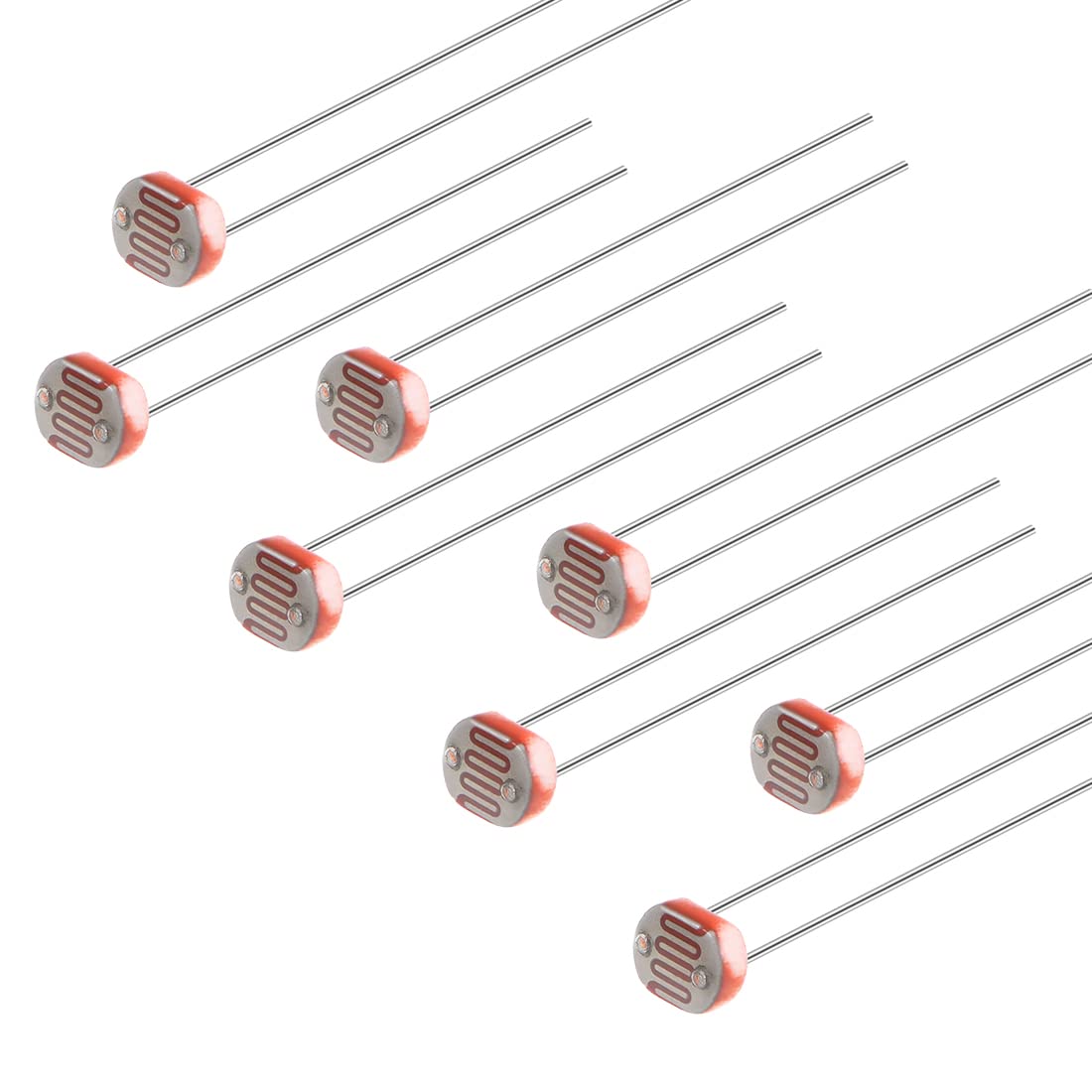

10Pcs Photoresistor Kit 5mm Photo Light Sensitive Resistor Light Dependent Resistor with Free Box for DIY and Experiments 5549 GL5549

Key Features

• Photo resistors, also known as light dependent resistors (LDR), are light sensitive devices most often used to indicate the presence or absence of light, or to measure the light intensity.
• In the dark, their resistance is very high, sometimes up to 1MΩ, but when the LDR sensor is exposed to light, the resistance drops dramatically, even down to a few ohms, depending on the light intensity.
• LDR has a sensitivity that varies with the wavelength of the light applied and is nonlinear device.
• They are used in many applications but are sometimes made obsolete by other devices such as photodiodes.
• Please check the right type to meet your needs.

Product Description

Feature：Photo resistors, also known as light dependent resistors (LDR), are light sensitive devices most often used to indicate the presence or absence of light, or to measure the light intensity.In the dark, their resistance is very high, sometimes up but when the LDR sensor is exposed to light, the resistance drops dramatically, even down to a few ohms, depending on the light intensity.LDR has a sensitivity that varies with the wavelength of the light applied and is nonlinear device. They are used in many applications but are sometimes made obsolete by other devices such as photodiodes.Please check the right type to meet your needs.Specification：Type:GL5539Max voltage(VDC) :150Max power dissipation(mW):100Ambient Temperature（C):-30~+70Peak wavelength(nm):540Light resistance(10Lx)(KΩ):100-200Dark resistance(MΩ):10Gamma Value ( ) at 10 ~ 100 Lx:0.8Rise Response Time(ms):20Fall Response Time(ms):30Illuminance resistance characteristic:5Body Size:5 x 4 x 2mm(L*W*H)Wire size:35mm

Package Content

10 x Photoresistors

Specifications
