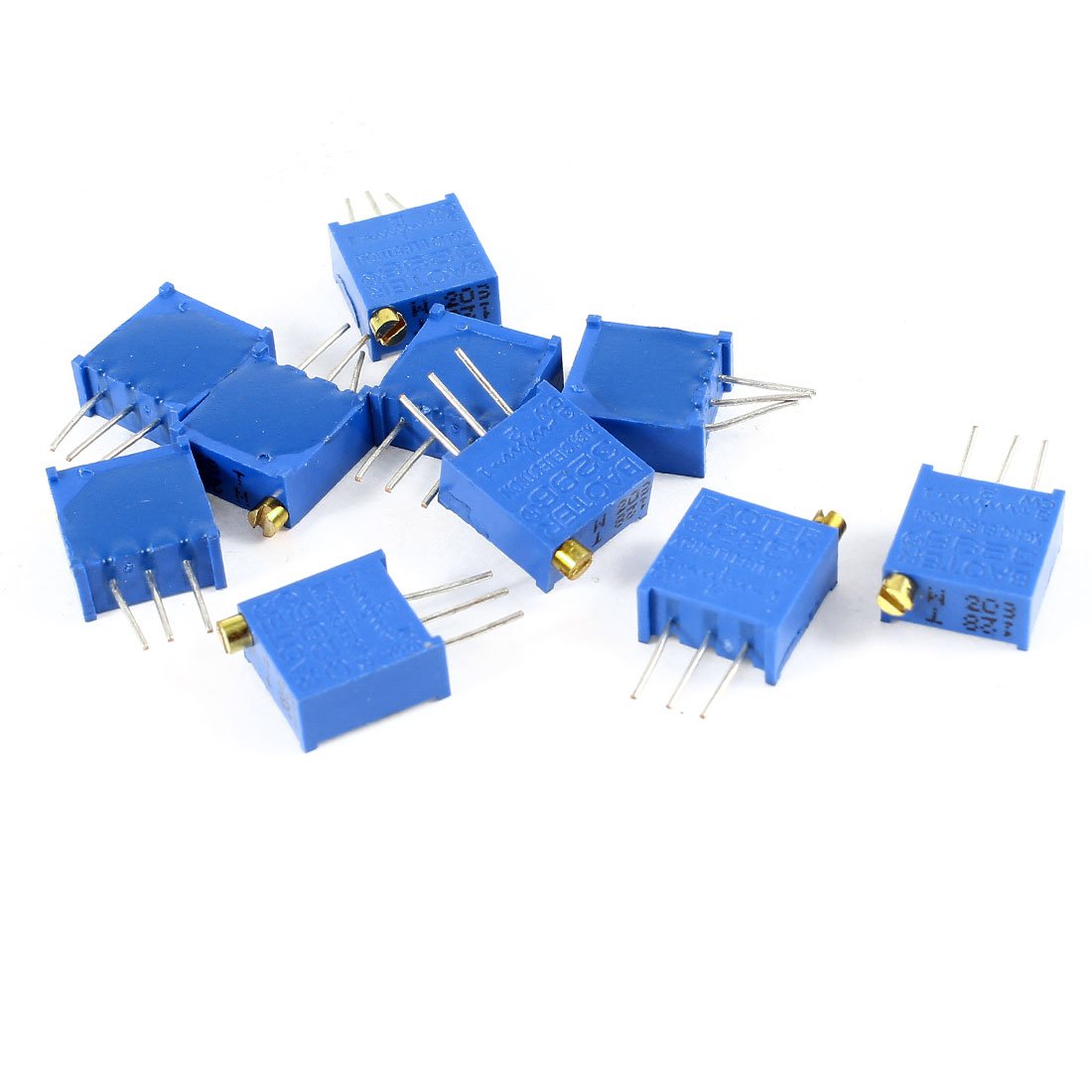

10Pcs 3296W 203 20K ohm High Precision Variable Resistor Potentiometer

Key Features

• Product Name Trimming Potentiometer;Type 3296W-203;Resistance 20K ohm;Tolerance +10%
• Absolute Minimum Resistance < =1%;Contact Resistance Variation < =3%;Insulation Resistance > = 1G ohm at AC 100V;Withstand Voltage AC 640V
• Power Rating ,315 volts mas 0.5W at 70C, 0W at 125C;Temperature Range -55C to +125C;Temperature Coefficient +250%ppm/C;Temperature Variation 55C, 30min, +125C
• Vibration 10~500Hz, 0.75mm,6h;Collision 390m/s², 4000cycles;Total Size 9.5 x 5 x 17.5mm/0.37" x 0.2“ x 0.69"(L*W*H)
• Color Blue;Weight 5g;Package Content 10 x Trimming Potentiometer

Product Description

A common element in electronic devices is a three-terminal resistor with a continuously adjustable tapping point controlled by rotation of a shaft or knob.Cermet Resistive Material trimming potentiometer for device interior or Printed circuit boards which adjustable the resistance less.Through hole DIP mounting type.Single turn design cermet potentiometer, squre linear
