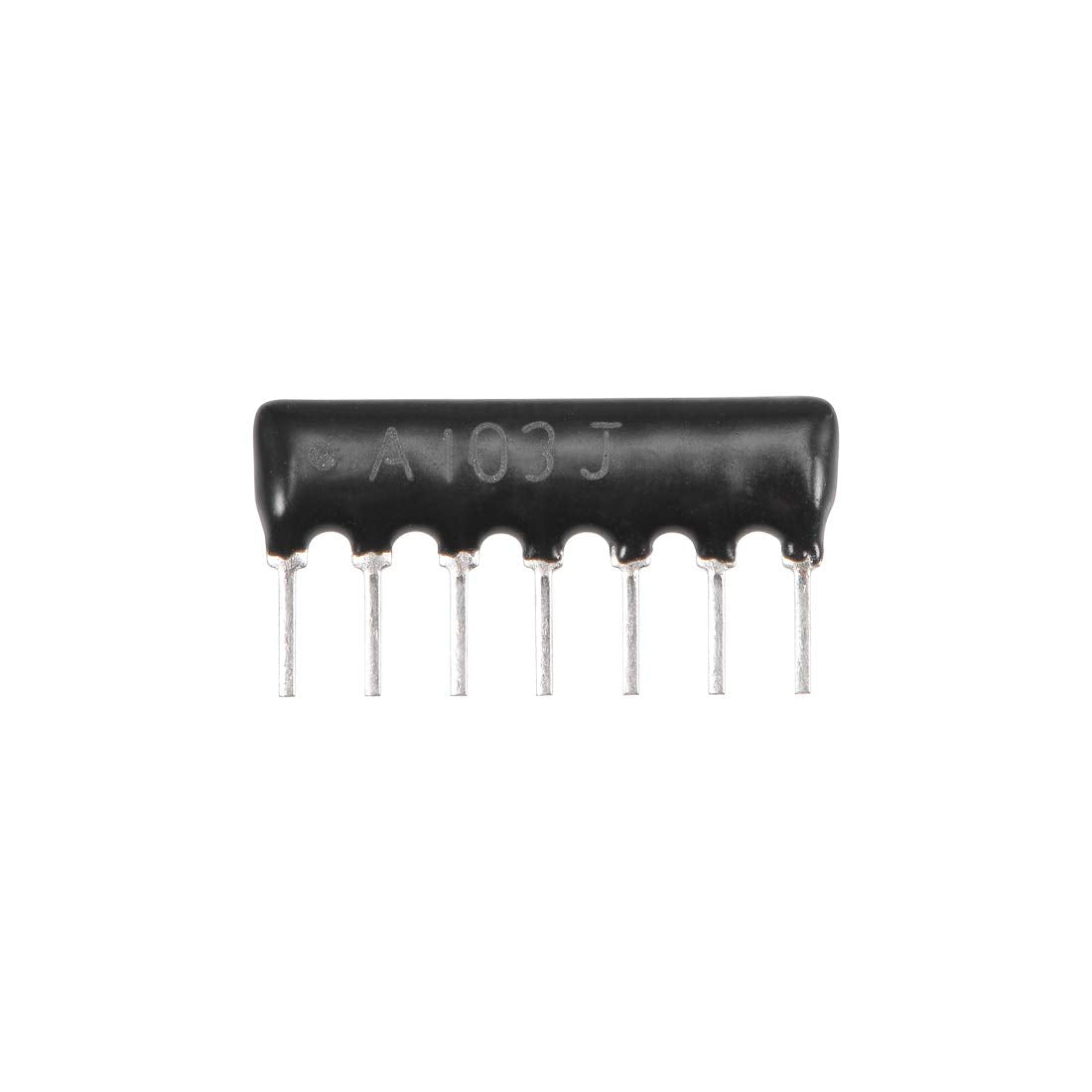

10K Ohm Resistor Network Array, 1/8W SIP-7 2.54mm Pitch, 5% Tolerance Bussed Type 10pcs

Key Features

• 10K ohm thick film bussed network resistors, 10 pieces in total
• SIP-7 package. Pin on the leftmost is the common end
• Miniature, high density assemble for reducing needs of PC-board traces
• Provides stable electric performance and high reliability
• A useful item in simplifying layout design

Product Description

Model No.: A07-103Resistance: 10K OhmTolerance: ±5% (J)Rated Power: 1/8WMax. Working Voltage: 200VNetwork Type: BussedPackage Type: SIP (Single In-line Package)Pin Quantity: 7Pin Pitch: 2.54mmSize: 17 x 8.5 x 2mm (0.67" x 0.33" x 0.08")

Package Content

10 x Resistor NetworkFeature:-Thick film resistor array is a combination of several resistors.-One end of all resistors share a common connection. -Resistor network offers an alternative with multiple potential benefits to both circuit-design and board-layout challenges.-The bussed arrangement is commonly used for pull up, pull down or bus termination on logic signals.
