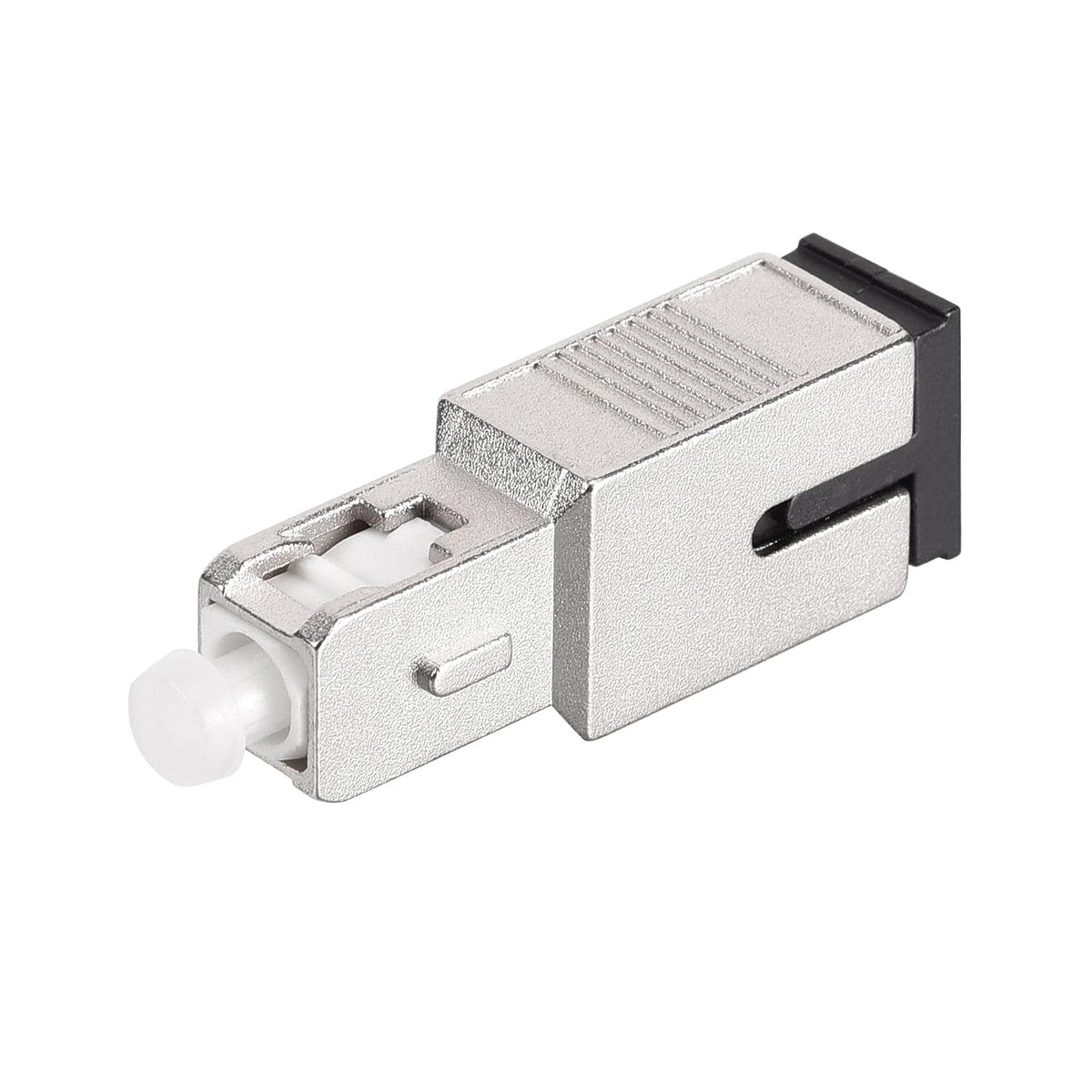

10dB SC Fiber Optic Attenuator, SC/UPC to SC/UPC Single Mode 9/125 Adapter

Key Features

• [MAIN PARAMETER] SC/UPC Female to SC/UPC Male; Single-mode; Attenuation Value 10dB; Attenuation Accuracy ±1dB.
• [MATERIAL] The core material of the adapter is ceramics.
• [FEATURE] To ensure the optical power stay in a stable level on its original transmission wave.High attenuation accuracy, low added loss and good stability.
• [SPECIFICATION] Bandwidth 1260nm - 1640nm; Operation Wavelength 1310nm, 1550nm; UPC Loss Value ≥ 50 dB.
• [APPLICATION] Widely used in the fiber optic communication system, for example, optical instrument calibration or fiber signal attenuation.

Product Description

Description

1. One end of the adapter is a male connector-UPC, and the other end is a female connector-UPC.2. To ensure the optical power stay in a stable level on its original transmission wave.3. The fiber optical attenuator applies to single mode.4. The core material of the adapter is ceramics.5. High attenuation accuracy, low added loss and good stability.6. Widely used in the fiber optic communication system, for example, optical instrument calibration or fiber signal attenuation.Specification:SC: Subscriber Connector with Clip-on TypeConnector: SC/UPC Female to SC/UPC MaleAttenuation Value: 10dBAttenuation Accuracy: ±1dBFiber Mode: Single modeBandwidth: 1260nm - 1640nmOperation Wavelength: 1310nm, 1550nm1310nm Attenuation Value: 9.87dB1550nm Attenuation Value: 9.59dB1310nm Reflectance Value: 51.8dB1550nm Reflectance Value: 52.8dBOperation Temperature: -40 to +75°CMaterial: Metal, Plastic, CeramicColor: Black, SilverTotal Size: 40x12.5x9.5mm / 1.57x0.49x0.37-inchPackage Included: 1 pcs x Fiber Optic Attenuator
