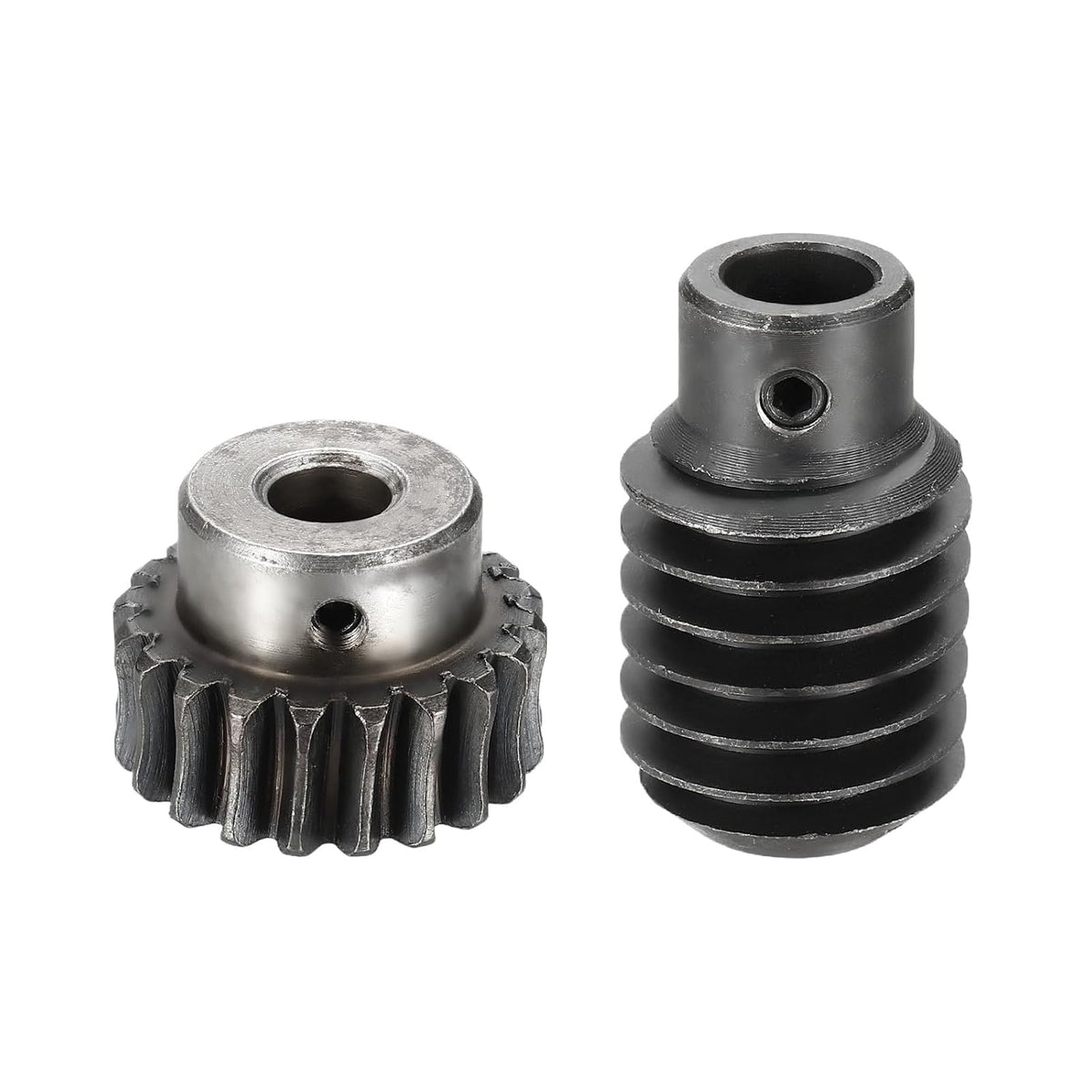

1045 Steel Worm Gear Set 20T 1.25 Module 1:20 Reduction Rate, Right Rotation Drive Gear Box Wheel Reduce Transmission Part (Gear-8mm Bore 28 mm OD, Rod 10mm Bore)

Key Features

• Size - The package includes a set containing one gear and one worm, featuring a 1.25 module, 120 reduction rate, 20 teeth, 8mm gear bore, and 10mm rod bore.
• Material - The gears and worm are made of 1045 steel, which has good strength, toughness and wear resistance. They can effectively resist the friction and wear generated by the gears and worm during operation, ensuring that the product maintains stable performance in long-term use.
• Feature - The worm gear set features high-precision transmission with a transmission ratio of 120, ensuring smooth and precise power transmission. The gear has a step design for easy installation and positioning, reducing installation errors.
• Installation - Align the gear holes and worm with the axis and fix them with fixings (such as keys or pins). Adjust the engagement clearance between the worm and the gear to ensure smooth transmission without over-tightening or over-loosening.
• Application - Gears and worm gears are widely used in mechanical equipment, industrial automation, home appliances, and the automotive industry for precise power transmission and speed reduction functions.

Product Description

Descriptions

Material - The gears and worm are made of 1045 steel, which has good strength, toughness and wear resistance. They can effectively resist the friction and wear generated by the gears and worm during operation, ensuring that the product maintains stable performance in long-term use.Feature - The worm gear set features high-precision transmission with a transmission ratio of 1:20, ensuring smooth and precise power transmission. The gear has a step design for easy installation and positioning, reducing installation errors.Installation - Align the gear holes and worm with the axis and fix them with fixings (such as keys or pins). Adjust the engagement clearance between the worm and the gear to ensure smooth transmission without over-tightening or over-loosening.Application - Gears and worm gears are widely used in mechanical equipment, industrial automation, home appliances, and the automotive industry for precise power transmission and speed reduction functions.

Specifications

Modulus: 1.5Gear Material: 1045 SteelWorm Material: 1045 SteelGear Hole: 8mm (0.31")Worm Hole: 10mm (0.39")Gear Tooth Count: 20 TeethWorm Total Length: 40mm (1.57")Worm Outer Diameter: 24mm (0.94")Gear Thickness: 11mm (0.43") / Total Thickness: 20mm (0.79")Gear Outer Diameter: 28mm (1.1") / Step 20mm (0.79")

Package Includes

1 Pc x Worm Gear Set
