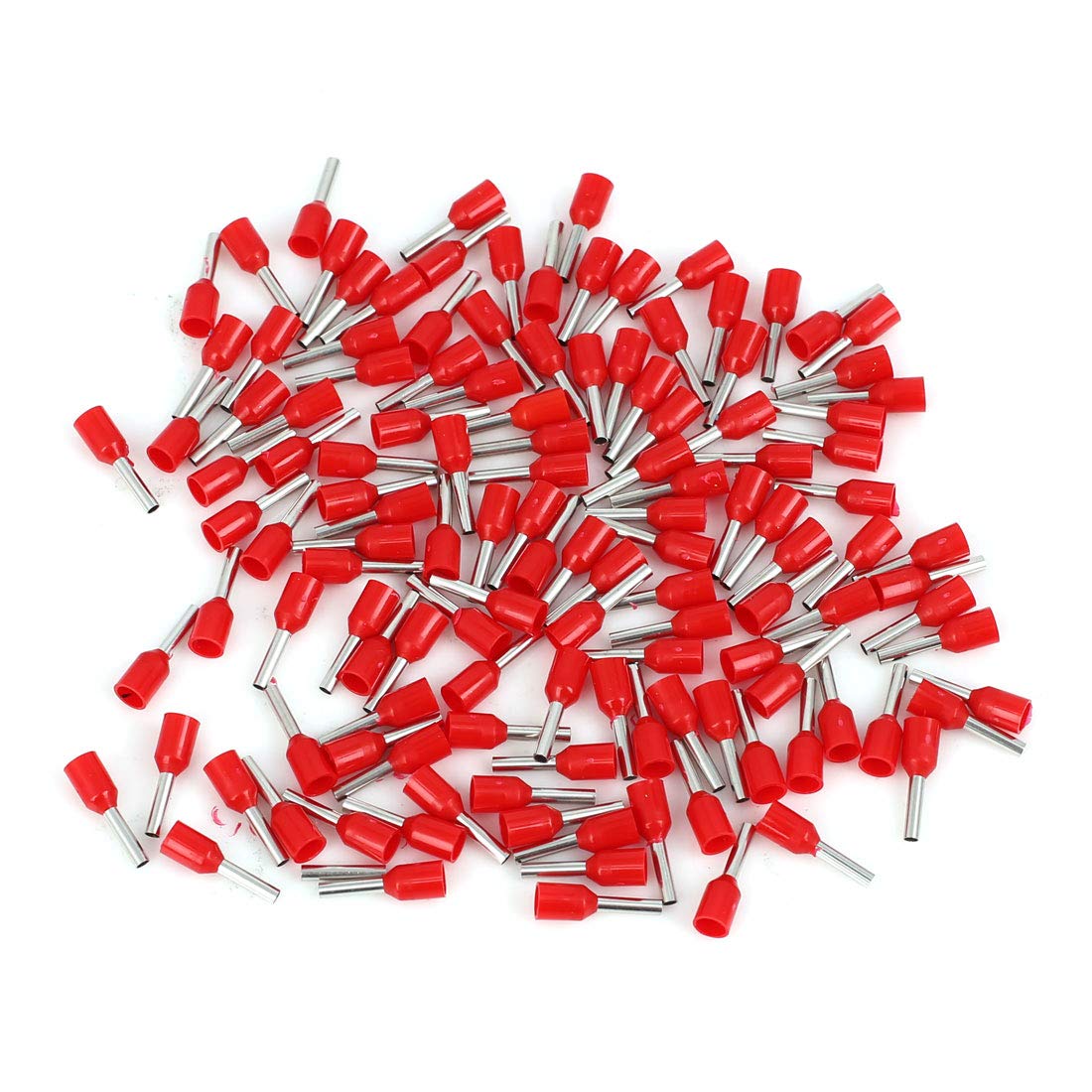

100pcs Red Copper AWG 16 Wire Crimp Insulated Cord Pin End Ferrules Terminal E1508

Key Features

• Product Name Insulate Ferrules; Material Copper,PVC; Package Content 100(+/-2%) x Insulate Ferrules
• Shell Color Red, Silver Tone; Design Tube Type; Model E1508
• Fit Cable Size AWG 16(1.5 mm2); Total Length 15.2mm / 0.6"
• Plastic Tube Size 7.3 x 3.7 x 4.6mm / 0.29" x 0.15" x 0.18" (L*ID*OD); Pin Length 8mm / 0.31"
• Tip Outer Dia 2mm / 0.08"; Tip Inner Dia 1.6mm / 0.06"

Product Description

Specification:Model: E1508Material: Copper, PVCShell Color: Red, Silver ToneFit Cable Size: AWG 16(1.5 mm2)Total Length: 15.2mm / 0.6"Plastic Tube Size: 7.3 x 3.7 x 4.6mm / 0.29" x 0.15" x 0.18" (L*ID*OD)Pin Length: 8mm / 0.31"Tip Outer Dia: 2mm / 0.08"Tip Inner Dia: 1.6mm / 0.06"Feature:For all relevant European standards.Electrical terminals using quality copper,plating tin process,conductive better.An easy one step connection of wires,insulated and sealed.PVC insulation material,makes crimping easy.Suitable for marine and automobile applications.For best results use a crimper plier until it reduces in size and the adhesive flows,filling gaps within the terminal.Package Include:100(+/-2%) x Insulate Ferrules
