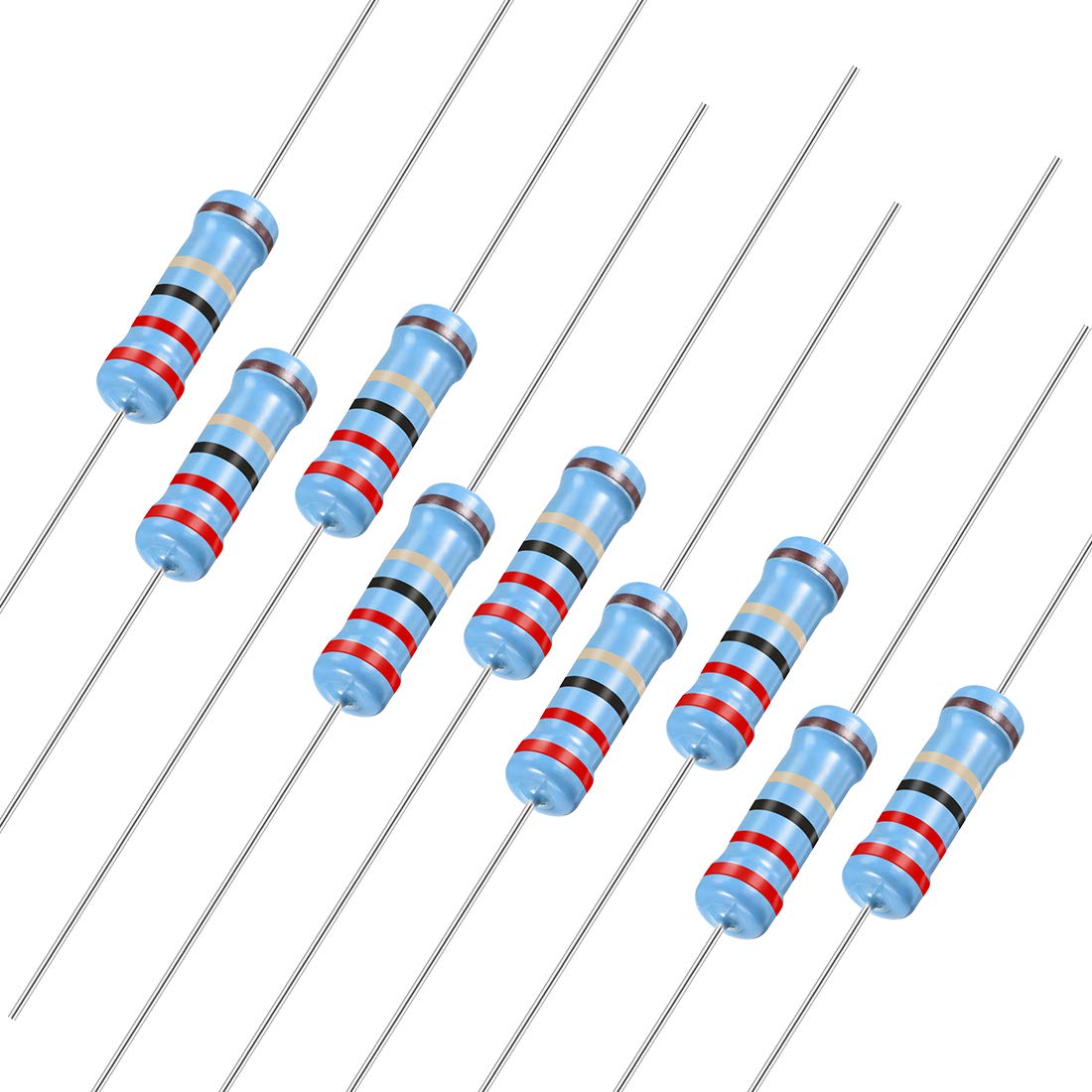

100Pcs 22 Ohm Resistor, 3W 1% Tolerance Metal Film Resistors, Lead, 5 Bands for DIY Electronic Projects and Experiments

Key Features

• Color Code Red,Red,Black,Gold,Brown
• Power 3W;Tolerances1%(F) ;Resistance22 Ohm;Total Length74mm/2.8''
• Lead Diameter0.6mm/0.024'';Body Size16.5mm x 5.7mm / 0.65'' x 0.22'' (L x D)
• Package Content 100pcs(+/-2%) x 3W22RJ Metal Film Resistor
• Metal film resistors have much better temperature stability than their carbon equivalents,lower noise and are generally better for high frequency or frequency applications.

Product Description

Description

High precision,Automatic insertion is applicable.Wide operating range,long-term stability,low tolerance ,low temperature co-efficient of resistance and very small in size.Metal film resistors have much better temperature stability than their carbon equivalents,lower noise and are generally better for high frequency or frequency applications.Specification:Power: 3WBody Length:17+/-1mmLead Diameter:0.6mm/0.024''Body Size:16.5mm x 5.7mm / 0.65'' x 0.22'' (L x D)Total Length:74mm/2.8''Color Code: Red,Red,Black,Gold,BrownTolerances:1%(F),Resistance:22Ohm,

Package Content

100pcs(+/-2%) x 3W22RJ Metal Film Resistor

Specifications
