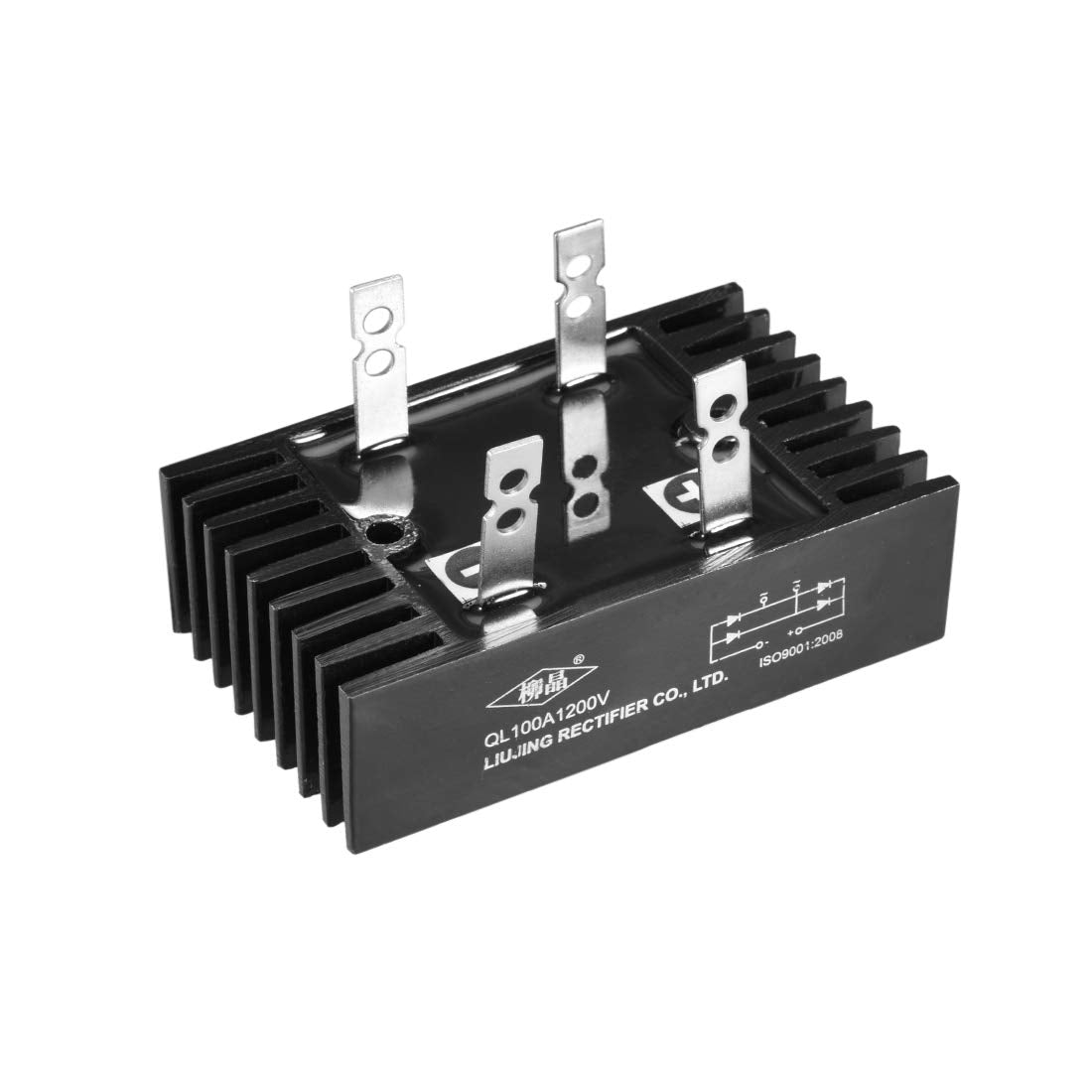

100A 1200V Single Phase Rectifier Bridge Rectifier with Heat Sink

Key Features

• DC 100A output current and 1200V working peak reverse voltage(VRWM)
• Single Phase. Single phase rectifiers use solid state devices as their primary AC to DC converting device.
• 10 mA repetitive peak reverse current (IRRM).
• Heat Sink. Air cooling fins provide a solid support to maximum performance of the module. And with heat resisting insulated plating.
• Compact Assemble. There were a solid arrangement four chips in a bridge circuit configuration, more durable and reliable.

Product Description

Specification:Output Current: 100A Working Peak Reverse Voltage(VRWM): 1200VCircuit: Single PhaseRepetitive Peak Reverse Current (IRRM): 10mALength: 97mm/3.8 inches Width: 60mm/2.3 inches Overall Height(with terminals): 52mm/2 inchesHoles Diameter of Terminals: 5mm/0.19 inches Distance between fixing holes: 54mm / 2.2 inches Net Weight: 0.5 LB / 243g

Package Content

1 x bridge rectifier
