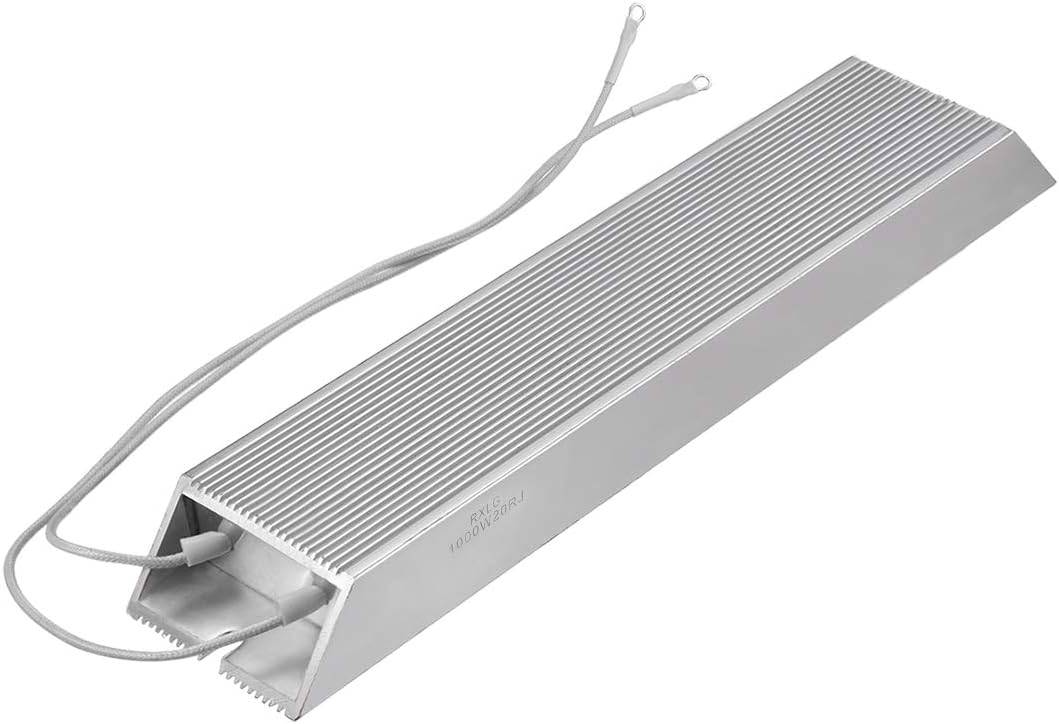

1000W 20 Ohm Aluminum Housing Wirewound Braking Load Resistor for VFD Inverter

Key Features

• Power 1000 Watt, Resistance 20 Ohm, Tolerance 5%.
• Cover with the corrugated aluminum case, which assures an optimization of heat dispersion.
• Reliable. Copper alloy resistance wires meet insulated ceramics, with the help of a compact wrap, form a high-grade wire wound resistor.
• Easy Connection. Two 49cm/19.3" leads with O-ring terminals.
• Trapezium Shape. The case was trapezium, and each size has a gap for screws fixing.

Product Description

Description

Power: 1000 Watt, Resistance: 20 Ohm, Tolerance: 5%.Cover with the corrugated aluminum case, which assures an optimization of heat dispersion.Reliable. Copper alloy resistance wires meet insulated ceramics, with the help of a compact wrap, form a high-grade wire wound resistor.Easy Connection. Two 49cm/19.3" leads with O-ring terminals.Trapezium Shape. The case was trapezium, and each size has a gap for screws fixing.Specification:Power: 1000WResistance: 20 ohmTolerance: J(5%)Length of lead: 49cm/19.3”Weight:1013gWidth:60mm/2.36''Height:30mm/1.18''Board Length:330mm/13''Materials: Aluminum

Package Content

1 x 1000W20RJ Aluminum Case Resistor

Specifications
